7206 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls
7206 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls
Specifications
Structure :
Angular Contact
Part Number :
7206 ACD/HCP4A Angular Contact Ball Bearing
Brand Name :
CNBTZC or OEM
Model Number :
7206 ACD/HCP4A
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
500000pcs per month
Delivery Time :
2-3 weeks
Packaging Details :
plastic bag,box,carton,pallet
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Replaceable With :
SKF, NSK 7206A5SN24TRP4
Seals Type :
Open (2RZ available)
Lubrication :
Grease,Oil
Design :
High-capacity D
Coating :
Without
Sealing :
Without
Description

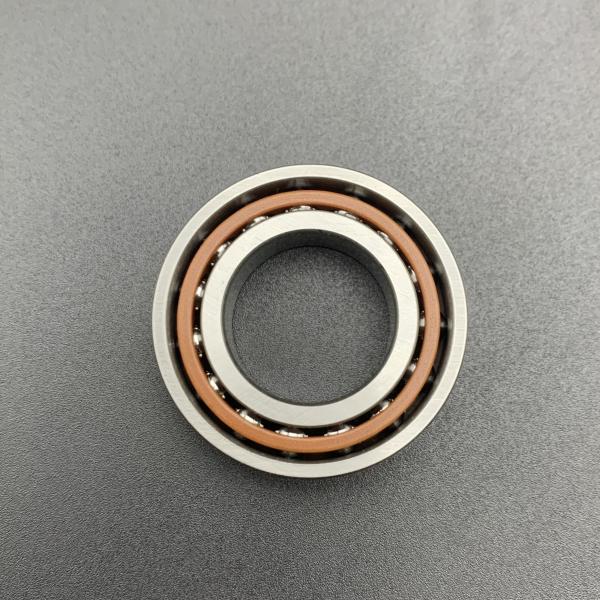

7206 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing

7206 ACD/HCP4A 30×62×16 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Bearings Ceramic Balls

Super-precision, high-capacity, single row angular contact ball bearing

The 7206 ACD/HCP4A bearing, with a bore diameter of 30 mm, outside diameter of 62 mm, and width of 16 mm, features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.

Part Number 7206 ACD/HCP4A
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d): 30 mm
Inner Bore Diameter Tolerance: -0.005mm to 0
Outer Bore Diameter (D): 62 mm
Outer Bore Diameter Tolerance: -0.007mm to 0
Width (B): 16 mm
Width Tolerance: -0.2mm to 0
Specifications Contact Angle: 25° (15°, 40° Available)
Material: Hybrid (Chrome Steel Rings, Ceramic Balls)
Cage Material: Phenolic
Number of Rows: 1 Single Row
Seal Type: Open
Temperature Range: -30°C to 150°C
Lubrication: Grease or Oil
Tolerance Class: P4A better than P4 (ABEC-7)
Weight: 0.17 kg
Matched Arrangement: No
Universal Matching Bearing: No
Preload: Not applicable
Load and Speed Dynamic Radial Load: 23400 N
Static Radial Load: 15300 N
Reference Speed For Grease (r/min): 26000 rpm
Limiting Speed For Oil (r/min): 40,000 rpm
7206 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls 7206 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing with P4A Precision Grade and Hybrid Ceramic Balls
Performance Features of 7206 ACD/HCP4A Bearing
  • Manufactured to P4A precision grade standards for high-precision applications
  • Handles both radial and axial loads simultaneously
  • Supports high-speed operation with exceptional stability
  • Minimizes torque and friction for improved energy efficiency
  • Offers enhanced rigidity for accuracy under heavy loads
  • Hybrid ceramic balls ensure extended service life
  • Effective performance across wide temperature range (-30°C to 150°C)
  • Superior rotational accuracy and reliability
Applications of the 7206 ACD/HCP4A Bearing
  • Machine Tools & Precision Equipment: Spindle operations in CNC machining centers and specialized broaching machines
  • High-Speed Industrial Equipment: Textile machinery, motors, generators, irrigation and pumping systems
  • Specialized Industrial Equipment: Vulcanizing machines, resistance welders, test sieves, powder screening machines, plastic machinery
  • Medical & Electronic Precision Equipment: Patient monitors, laser components requiring cleanliness and accuracy
  • Other Applications: Winding machines, food sterilization equipment, nonwoven fabric machinery
CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support, Professional Service
Size Standard, For custom sizes, please contact us
Factory Manufacturer Yes

Manufacturing & Support: Factory manufacturer with OEM & ODM customized services available. Contact us for samples and custom size requirements.
