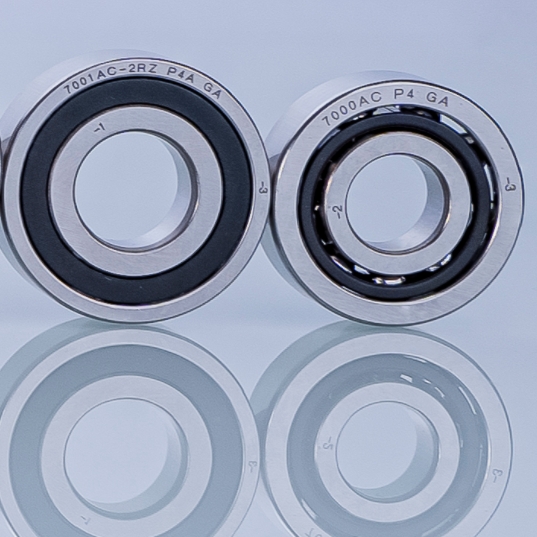

7000 AC P4A GA 10x26x8 mm Super Precision Angular Contact Ball Bearing with High Speed 95,000 rpm
7000 AC P4A GA 10x26x8 mm Super Precision Angular Contact Ball Bearing with High Speed 95,000 rpm
Specifications
Structure :
Angular Contact
Part Number :
7000 AC P4A GA Angular Contact Ball Bearing
Lubrication :
Grease,Oil
Design :
High-capacity D
Coating :
Without
Sealing :
Without
Replaceable With :
SKF
Seals Type :
Open (2RZ available)
Brand Name :
CNBTZC or OEM
Model Number :
7000 AC P4A GA
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
200000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Ring type :
One-piece inner and outer rings
Contact type :
Normal contact (two-point contact)
Description
7000 AC P4A GA 10X26X8 mm Super Precision Angular Contact Ball Bearing Machine Tool High Speed Spindle Bearing

7000 AC P4A GA 10*26*8 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

The 7000 AC P4A GA bearing features a bore diameter of 10 mm, outside diameter of 26 mm, and width of 8 mm. With precise dimensions, high static load capacity, and P4A precision grade, it delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Technical Specifications
Part Number 7000 AC P4A GA
Bearing Type Angular Contact
Measurement Unit Metric
Inner Bore Diameter (d) 10 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 26 mm
Outer Bore Diameter Tolerance -0.004mm to 0
Width (B) 8 mm
Width Tolerance -0.2mm to 0
Contact Angle 25° (15°,40° Available)
Material Chrome
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Open
Temperature Range -30°C to 150°C
Lubrication Grease or Oil
Tolerance Class P4A better than P4
Weight 0.019 kg
Matched Arrangement No
Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
Preload EL/Extra Light/Class A
Dynamic Radial Load 3970 N
Static Radial Load 1600 N
Reference Speed For Grease (r/min) 60,000 rpm
Limiting Speed For Oil (r/min) 95,000 rpm
7000 AC P4A GA 10x26x8 mm Super Precision Angular Contact Ball Bearing with High Speed 95,000 rpm 7000 AC P4A GA 10x26x8 mm Super Precision Angular Contact Ball Bearing with High Speed 95,000 rpm
Performance Features

The 7000 AC P4A GA bearing, designed for high-performance applications, features P4A precision and an angular contact structure to handle large radial and axial loads. Optimized for high-speed, low-vibration, smooth quiet operation, and made of premium materials for durability, it is suitable for machine tools, aerospace, medical devices and other fields requiring high precision and reliability.

Applications

The 7000 AC P4A GA bearing is ideal for critical applications across industries demanding exceptional accuracy and reliability:

  • Machine tools: Ensures precision in high-speed cutting and machining
  • Aerospace: Withstands extreme conditions in control and avionics systems
  • Medical devices: Aids accuracy in surgical robots and imaging equipment
  • Automation systems: Supports smooth movement of robotic arms and guides
  • Precision instruments: Maintains stability in high-precision measuring tools
  • Semiconductor equipment: Facilitates precise motion in wafer processing
  • Optical machinery: Ensures accuracy in lens grinding and positioning
  • Racing vehicles: Handles high speeds and loads in engine components
Certifications & Services
Certificates:
RoHS & REACH, IATF16949:2016
Features:
High Speed and Stiffness, High Running Accuracy, High Load Carrying Capacity
Services:
OEM&ODM Customized Services, Online Support, Professional Service
Samples:
Please Contact Us
Size Options:
Standard, For custom sizes please contact us
Manufacturer:
Factory Manufacturer
