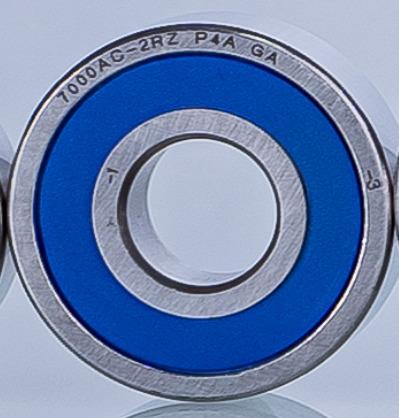

7000 AC-2RZ P4A GA Super Precision Single Row Angular Contact Ball Bearing 10X26X8 mm
7000 AC-2RZ P4A GA Super Precision Single Row Angular Contact Ball Bearing 10X26X8 mm
Specifications
Brand Name :
CNBTZC or OEM
Model Number :
7000 AC-2RZ P4A GA
Certification :
IATF16949:2016
Place of Origin :
China
MOQ :
1000
Price :
Please contact us,thanks
Payment Terms :
L/C,T/T
Supply Ability :
50000pcs per month
Delivery Time :
30 days
Packaging Details :
plastic bag,box,carton,pallet
Part Number :
7000 AC-2RZ P4A GA Angular Contact Ball Bearing
Structure :
Angular Contact
Seals Type :
Sealed ,2RZ
Ring type :
One-piece inner and outer rings
Lubrication :
Grease
Replaceable With :
SKF
Coating :
Without
Sealing :
Without
Design :
High-capacity D
Contact type :
Normal contact (two-point contact)
Description

7000 AC-2RZ P4A GA 10*26*8 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

The 7000 AC-2RZ P4A GA bearing,bore diameter is 10 mm, outside diameter is 26 mm,width is 8 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number 7000 AC-2RZ P4A GA
Bearing Type Angular Contact
Measurement Unit Metric
Dimensions Inner Bore Diameter (d) 10 mm
Inner Bore Diameter Tolerance -0.004mm to 0
Outer Bore Diameter (D) 26 mm
Outer Bore Diameter Tolerance -0.005mm to 0
Width (B) 8 mm
Width Tolerance -0.2mm to 0
Specifications Contact Angle 25° (15°,40° Available)
Material Chrome Steel
Cage Material Phenolic
Number of Rows 1 Single Row
Seal Type Seal on both sides
Temperature Range -30°C to 150°C
Lubrication Grease
Tolerance Class P4A better than P4
Weight 0.019 kg
Matched Arrangement Universal Matching
Universal Matching Bearing Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
Preload EL/Extra Light/Class A
Load and Speed Dynamic Radial Load 3970 N
Static Radial Load 1600 N
Reference Speed For Grease (r/min) 30,000 rpm
Limiting Speed For Oil(r/min) 67,000 rpm

7000 AC-2RZ P4A GA Super Precision Single Row Angular Contact Ball Bearing 10X26X8 mm

7000 AC-2RZ P4A GA Super Precision Single Row Angular Contact Ball Bearing 10X26X8 mm

What's the Performance Features of 7000 AC-2RZ P4A GA Bearing?

The ​S7000 AC-2RZ P4A GA​ represents the pinnacle of ultra-precision angular contact ball bearings. Engineered with P4A tolerance class accuracy, this bearing delivers exceptional rotational precision in demanding applications.

What's the Applications of the 7000 AC-2RZ P4A GA Bearing?

Core Application Areas:​​

  1. ​Precision Machine Tools​

  • CNC spindles (milling/turning centers)
  • Grinding machine spindles
  • Jig boring machines

2. ​Industrial Automation & Robotics​

  • Robotic arm articulation joints
  • SCARA robot Z-axis drives
  • Precision rotary tables

​3. ​Medical & Dental Equipment​

  • CT/MRI scanner gantries
  • Surgical robot drive trains
  • Dental CNC milling spindles

​4. ​Aerospace & Defense​

  • Gyroscopes & inertial navigation systems
  • Aircraft instrument actuators
  • UAV electro-optical turrets

​5. ​High-Speed Power Transmission​

  • Precision gearbox input/output shafts
  • Turbine encoder systems
  • EV motor resolver bearings

CERTIFICATE RoHS & REACH, IATF16949:2016
Feature High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service OEM&ODM Customized Services
Samples Please Contact Us
Service Online Support,Professional Service
Size Standard,For custom sizes ,please contact us
Factory Manufacturer Yes
