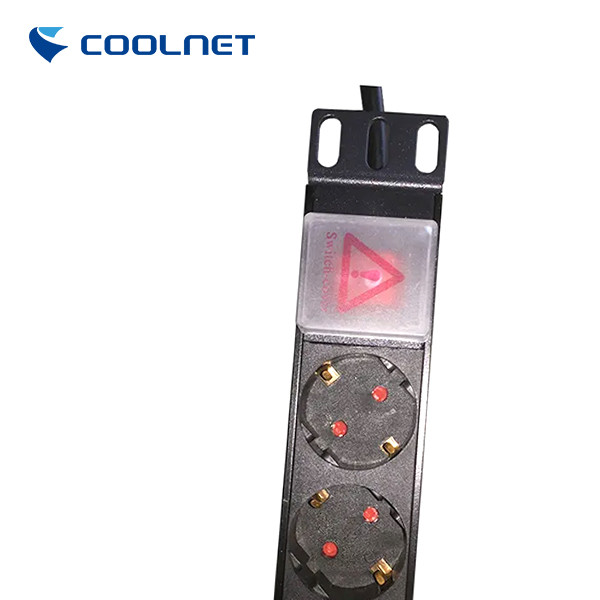

Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
Specifications
Brand Name :
COOLNET
Model Number :
PDU
Certification :
CE& ROHS
Place of Origin :
CHINA
MOQ :
1 unit
Price :
50-500 USD per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 unit per month
Delivery Time :
15days
Packaging Details :
CTN
Color :
Black/WHITE
Rated Power :
250V 440V
Phase :
1 or 3 phase
Shell :
Aluminum Shell
Type of plug :
Euro plug Customizable length
Switch Type :
Built-in switch smart pdu
Way :
8 way, 12 way ,16way
PDU type :
RACK PDU
Description

intelligent Power Distribution Units for horizontal or vertical installation

Production

COOLNET intelligent power distribution products are widely applied in the communication industries,Security system,IDC engine room,Electric power system,Track traffic,etc.They support security protection for the critical electronic equipment in computer room,information center,security monitor and control,and automated industrial productionline.They are also widely applied applied in the industry of office cabling,intelligent building etc.

 Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU

Product Features

Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
  • Built-in web server; through a web browser, the real-time power consumption of the distributor can be directly detected
  • When a power event occurs, the system administrator can be notified through Email Traps for processing
  • Provide central control software, user-friendly operation interface, easy monitoring
  • Can manage the power usage of a large number of distributors at the same time
  • Provide SNMP MIB, the network management system can directly integrate and monitor

Software Function

  • Simultaneously detect the power consumption of multiple intelligent power distributors
  • Group function, administrators can define and classify by themselves, which is convenient for management
  • Provide power consumption icon, which can be viewed by day, month, or self-defined way
  • When a power accident occurs, emails can be sent to the account designated by Trap
 Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU

Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
Parameter

PDU

Parameters

input

 Input type AC single phase, AC three phase,-48VDC,240VDC,336VDC
Input mode

Transparent open type junction box,power cord, cable,

industrial connector, socket etc.
Input voltage range 100-277VAC/312VAC-418VAC/11VDC-240VDC/-43VDC- -56VDC
AC input frequency 50/60Hz
total load current MAX 63A

Output

 Storage temperature -40 - +70
Relative humidity 5-95% (No condensation)
Atmospheric pressure 70kPa - 106kPa
Working altitude No more than 4000M

Environmental

 Working temperature -10 - +75
Storage temperature -40 - +80
Relative humidity 5-95% (No condensation)
Working altitude No more than 4000M
IP rating IP20
Protection input protection module Circuit breaker, lightning protection, leakage protector, temperature insepction module (optional)
Output protection module Circuit breaker, fuse box, fuse(optional)

Certifications
Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
Case
Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU

Factory
Intelligent Power Distribution Unit with Built-in Web Server and Aluminum Shell for 8/12/16 Way Rack PDU
