DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC
DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC
DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC
DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC
DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC
DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC
Specifications
Payment Terms :
T/T
Cooling capacity :
60kW
Rated Voltage / Frequency :
380-415V, 3Ph, 50/60Hz
Brand Name :
Hailos
Fan Quantity (pcs) :
3
Packaging Details :
Cartons
Model Number :
DCAI-600LP
Fan Type :
EC fan
MOQ :
1
Delivery Time :
5-8 weeks
Standard Airflow (m³/h) :
12000
Air Supply Method :
Front Air Supply
Place of Origin :
China
Liquid Pipe (mm) :
19.05
Price :
$10000~$50000
Cooling Method :
Air-Cooled
Refrigerant :
R410A
Certification :
ISO、CE
Gas Pipe (mm) :
22
Supply Ability :
500sets /month
Model :
DCAI-600LP
Size :
600*1200*2200
Description

Product Introduction

DCA 60kW high-power row-level air-cooled fluorine pump precision air conditioner features outdoor unit integrated with axial fans and full DC inverter fluorine pumps, making full use of natural cold source to control energy consumption for large data rooms. The row-level layout matches high-power cabinet clusters with large cooling capacity and fast heat exchange response to maintain stable room temperature. Ideal for medium and large IDC and telecom rooms in most regions. The fluorine pump free cooling operation reduces compressor working hours under favorable outdoor conditions, serving as an energy-saving preferred solution for high-computing-power computer rooms.

Technical Parameters

Parameter DCAI-250LP DCAI-400LP DCAI-600LP
Cooling Method Air-Cooled
Air Supply Method Front Air Supply
Rated Voltage / Frequency 380-415V, 3Ph, 50/60Hz
Cooling Capacity (kW) 25 40 60
Unit Max. Operating Current FLA (A) 37 48.2 57.2
Standard Airflow (m³/h) 5,000 8,000 12,000
Number of Compressors (pcs) 1
Fan Type EC Fan
Fan Quantity (pcs) 6 2 3
Number of Compressors (pcs) 1
Heating Power (kW) 3 6 9
Humidification Capacity (kg/h) 1.5 3 4.5
Refrigerant R410A
Liquid Pipe (mm) 15.88 15.88 19.05
Gas Pipe (mm) 19.05 19.05 22
Width (mm) 300 600
Depth (mm) 1200
Height (mm) 2000(2200)
Net Weight (kg) 210 250 310
Recommended Circuit Breaker (A) 40 63 63
Centralized Outdoor Unit (Outdoor Temp. 45°C) DHA-440VP DHA-660VP DHA-990VP

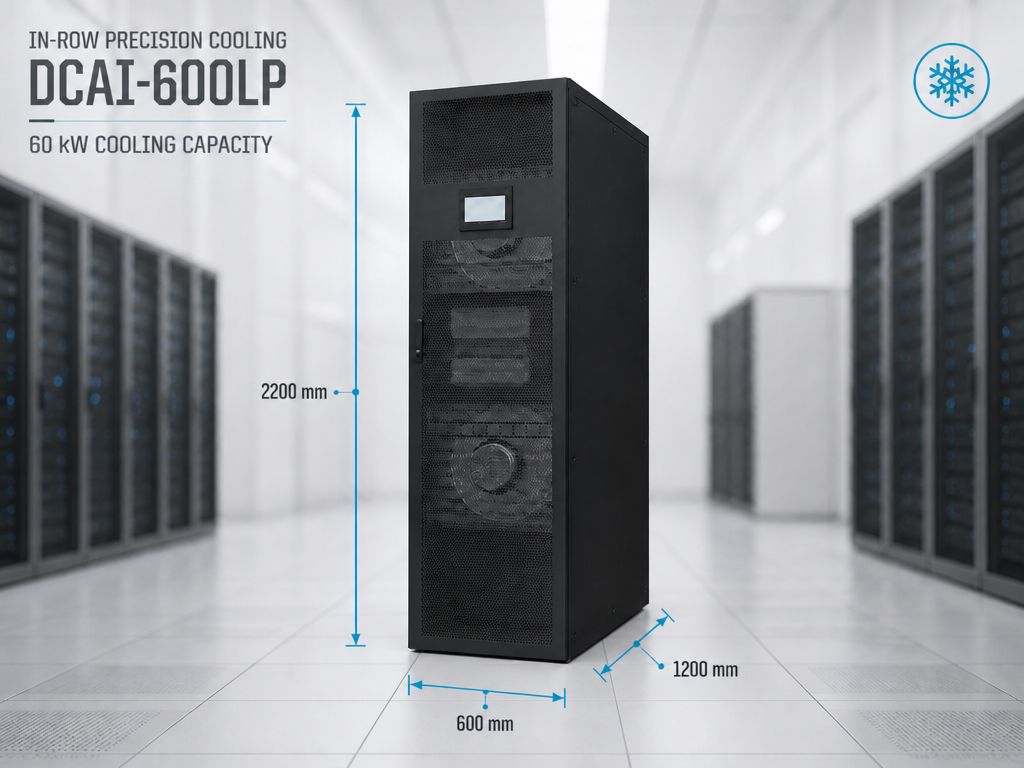

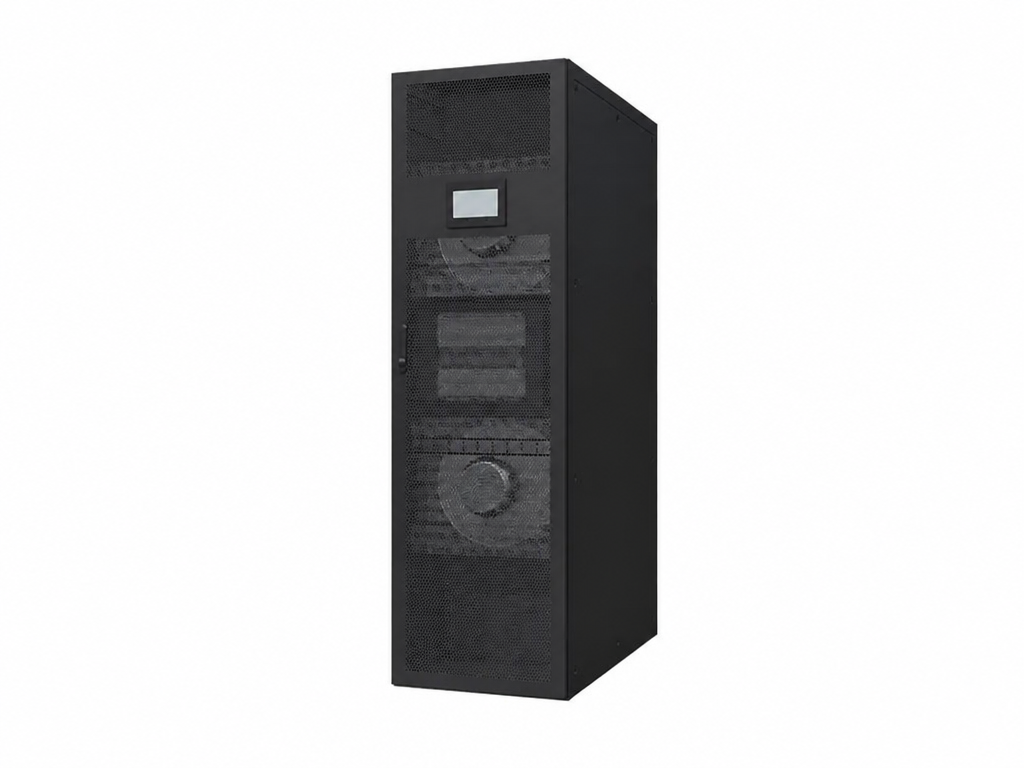

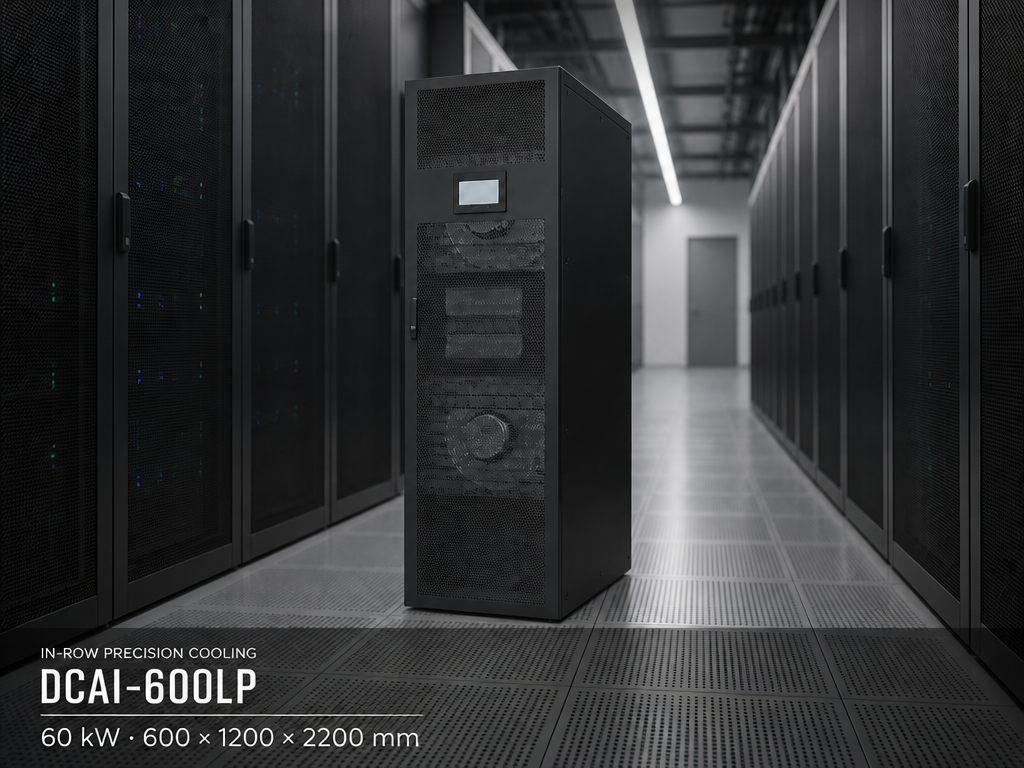

Product Photo

DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC

DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC

DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC

Certificate ( CE /ISO )

DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC


Packing

DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC


Project Case

DCA 60kW In Row Air-cooled Fluorine Pump Precision Air Conditioner, High Capacity Free Cooling Unit for Large IDC

FAQ

Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?

A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.

Q2: What is your MOQ (Minimum Order Quantity)?

A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.

Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.


Q4: Where are Hailos precision air conditioners widely used?

A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.

Q5: Can precision air conditioner work all year round without shutdown?

A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.

Q6: Can I adjust temperature and humidity remotely?

A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.

Q7: What refrigerants do you use for precision AC?

A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.

Q8: Do you support OEM / ODM customized service?

A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.

Q9: Do you provide technical drawing and parameter sheet?

A9: Yes. After confirming the model, we supply dimension drawing, technical datasheet, wiring diagram, installation manual in English PDF files for your project design.

Q10: Can you supply spare parts separately?

A10: Yes, we offer all replacement spare parts: compressor, fan motor, controller, filter, expansion valve, sensor.
