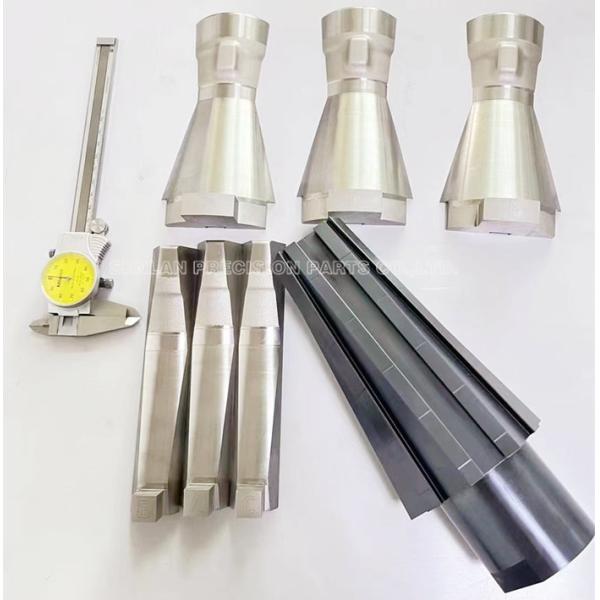

Precision Plastic Mold Part SKD61 Material with Collapsible Core 48~54 HRC Hardness and Polished Surface Treatment
Precision Plastic Mold Part SKD61 Material with Collapsible Core 48~54 HRC Hardness and Polished Surface Treatment
Precision Plastic Mold Part SKD61 Material with Collapsible Core 48~54 HRC Hardness and Polished Surface Treatment
Precision Plastic Mold Part SKD61 Material with Collapsible Core 48~54 HRC Hardness and Polished Surface Treatment
Precision Plastic Mold Part SKD61 Material with Collapsible Core 48~54 HRC Hardness and Polished Surface Treatment
Precision Plastic Mold Part SKD61 Material with Collapsible Core 48~54 HRC Hardness and Polished Surface Treatment
Specifications
Brand Name :
SENLAN
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200pcs/week
Delivery Time :
30working days
Packaging Details :
Coated with anticorrosive oil , packed in carton box
Mold name :
Collapsible Core
Hardness :
48~54 HRC
Surface Treatment :
Polished
Process :
Cnc milling/EDM
Tolerence :
+/-0.01-0.005
Cavity :
Single/Multi
Description

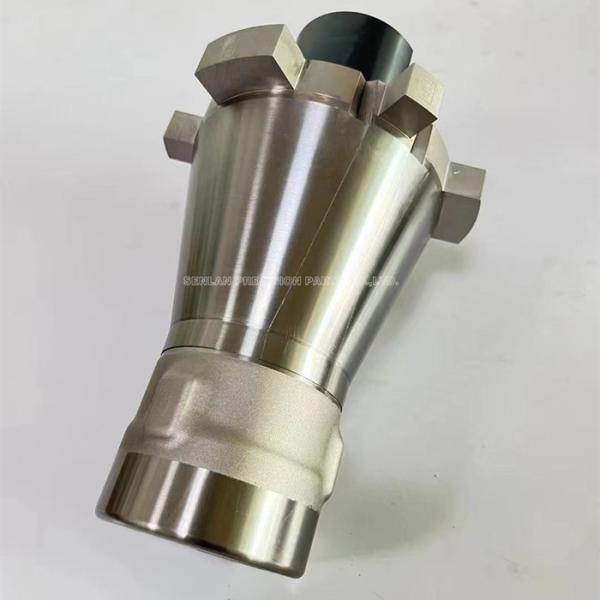

Precision Plastic Mold Part SKD61 Has Been Assembled With Collapsible Core
Product Overview

Precision Plastic Mold Part SKD61 has been assembled with collapsible core, making it suitable for precision injection mold applications.

Collapsible core injection molding applies to plastic injection molding and extrusion processes. This technology is ideal for parts where the inner cavity dimension is larger than the outer dimension, enabling quick and successful demolding during injection and extrusion. Applications include pipe fittings with collapsible features, instrument shells, and sealed gates.

Upmold offers comprehensive internal undercut injection molding and tooling services, covering part design, tooling design, mold making, tooling trials, and production.

General Mold Specifications
Items Description of Collapsible Core
Mould Core SKD61
Hardness of steel 46~56 HRC
Mold Standard HASCO, DME, MEUSBURGER, JIS, CHINA LKM Standard
Mould Base LKM & Hasco & DME standard (A,B plate 1730,2311,2312,P20)
Cavity Single/Multi
Runner Hot/Cold Runner
Maximum Mould Size 1500*1500 mm
Surface of Mould EDM / High Polish & Texture
Plastic material PP, PC, PS, PE, PET, POM, PA, PU, PVC, ABS, HIPS, PMMA etc.
Mould Life 300,000-1,000,000 shots
Specification Depends on customer's requirements
Surface Treatment Polish, texture, painting, screen printing, turnkey project
Trade terms FOB Shenzhen, EXW, CIF
Export to Europe countries, USA, Mexico, Australia, Middle-east, Asia etc
Mold hot runner DME, HASCO, YUDO, etc
Mold cold runner Point gate, side gate, subgate, tunnel gate, banana gate, direct gate, etc.
Mold heat treatment Quencher, nitridation, tempering, etc.
Surface finish of Part Logo print, Texture, Polishing, Painting, Chrome Plating
Delivery time 20-35 Days
Outside package Standard wooden cases or as your requirement
Inner package Stretch waterproof film & Each Mold painted, anti-rust oil. Spare parts together with the mold shipment.
Mold cooling system Water cooling or Beryllium bronze cooling, etc.
Our Collapsible Core Services
  • Customer's request is our purpose and target
  • Quick samples delivery service and production according to your BOM
  • Professional production team, strict quality control department, experienced sales department
  • One-stop solution for our long term customers
  • Customized size and OEM/ODM service acceptable
  • 100% inspection before delivery, quality warranty and long term after-service
  • Competitive price, Excellent service, Quick delivery, Safety payment, Flexible trade terms
Our Manufacturing Capabilities
  • Core pin, cavity pin, insert pin etc
  • HSS punch, Precision punch, Special-shaped punch
  • Ejector pins, ejector sleeve, two-stage ejector pins etc
  • Guide pillars, Guide bushings, Guide post set
  • Slide Core Units, Latch locks, locating Series
Quality Control

SENLAN maintains a strict quality control system from raw material incoming to finished products outgoing. Our mold parts are guaranteed for high precision, high polish quality, and long service life.

Our comprehensive quality inspection process includes:

  • Material incoming: 100% inspection
  • Rough Finished: 100% inspection
  • Heat treatment: random inspection
  • Face grinding: 100% inspection
  • Center-less cylindrical grinding: 100% inspection
  • OD/ID grinding: 100% inspection
  • EDM: 100% inspection
  • Wire-Cutting: 100% inspection
  • Packing: final 100% inspection before formal shipment
Packaging & Delivery

Package: Coated with anticorrosive oil, packed in carton box

Delivery: Delivery time is usually 7-15 working days for ejector pin types. Specific time depends on quantity.

Shipping: We ship using express services such as DHL, UPS, FEDEX etc., or according to customer requirements. Express shipping takes about 3-5 days with proof of shipment and tracking numbers provided. For larger quantities, we offer economical ocean shipping.

Frequently Asked Questions
What is your quote elements?
Product standard: model + size, or customer Drawing.
How can you ensure the quality?
We have QC department to control the quality from the beginning of production until goods finish.
If you make poor quality goods, will you refund our fund?
As a matter of fact, we won't take a chance to do poor quality products. Meanwhile, we manufacture quality products until your satisfaction.
Do you test all your goods before delivery?
Yes, we have 100% QC test and QC report for mold parts before delivery.
Can you produce according to the samples or drawings?
Yes, we can produce parts by your samples or technical drawings.
