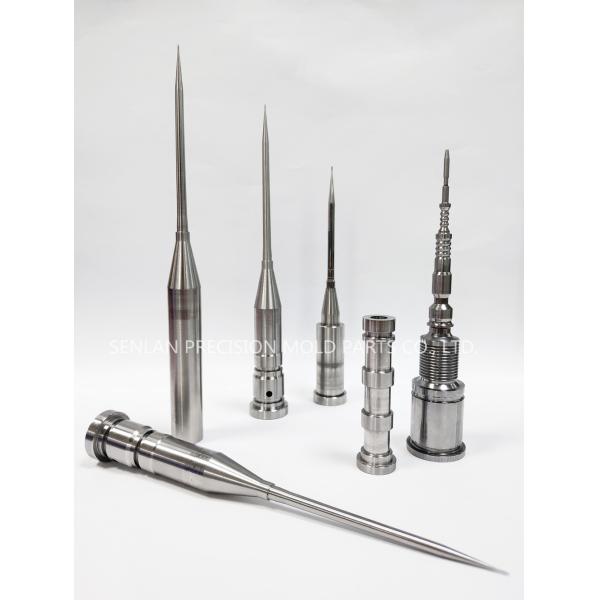

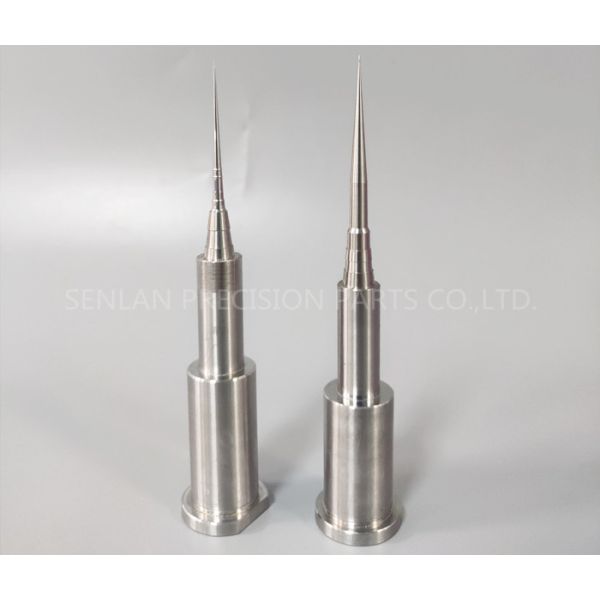

M340/Stavax Mold Core Pin with 0.005mm Tolerance for Medical Pipette Tips Injection Mold Components
M340/Stavax Mold Core Pin with 0.005mm Tolerance for Medical Pipette Tips Injection Mold Components
M340/Stavax Mold Core Pin with 0.005mm Tolerance for Medical Pipette Tips Injection Mold Components
M340/Stavax Mold Core Pin with 0.005mm Tolerance for Medical Pipette Tips Injection Mold Components
M340/Stavax Mold Core Pin with 0.005mm Tolerance for Medical Pipette Tips Injection Mold Components
M340/Stavax Mold Core Pin with 0.005mm Tolerance for Medical Pipette Tips Injection Mold Components
Specifications
Brand Name :
SENLAN
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200pcs/week
Delivery Time :
5-20working days
Packaging Details :
Coated with anticorrosive oil , packed in carton box
Parts name :
Pipette Tips Mold Parts
Szie :
As customers rquest
Tolerence :
+/-0.005mm
Machining :
CNC Machining, EDM
Usage :
Medical PipetteTips
Material :
M340/Stavax
Surface treatment :
Polishing
Hardness :
48~54 HRC
Description
M340 Pipette Tips Mold Parts 0.005 Tolerance For Plastic Molds

The core pins are used for medical molds, from common medical supplies to high-precision minimally invasive equipment, die casting mold parts, cosmetic parts, and more.

Description Of Mold Core Pin

A Mold Core Pin is an extended or male portion of the mold which creates the internal surface used in plastic injection molding, often in the medical industry. This particular Mold Core Pin is used for injection molding medical pipettes used in fluid sampling.

A Mold Core Pin is usually made of M2 steel, High-Strength H13, or other tool steel. Mold Core Pins need a certain level of toughness, but they also need to withstand a certain amount of misalignment in the molding process without breaking. In addition, the successful use of Mold Core Pins depends largely on the grinding process and these essential points:

  • Pinch grinding is needed in order to avoid deflection during the grinding cycle
  • Near-perfect TIR
  • Avoid heat issues during grinding to prevent changing metal characteristics and to avoid warping the pins
Specification Of Mold Core Pin
Description Plastic injection mold for Laboratory Micro Pipette Tips
Part Material All thermoplastics such as ABS, PC, PP, PE, PA, TPE, POM, PPS, PBT and other high engineering plastic, such as PEEK, PPS, PPO, PEI, PES etc
Cavity number 1/2/4/8/16/32/48/64...(optional)
Runner Hot runner or cold runner
Core & cavity material M340, 1.2083 stainless steel
Mould Standard MISUMI, DME, CUMSA, HASCO
Mould life Long mold life
Available format .stp/.pdf/.x-t/.step./.dwg/.dxf/.igs/.prt/.stl/.sldprt
Purchase Core Pins Process Chart
Plastic Mold Components Production Process Description
1. 3D Design/Samples For Quotation According to 3D drawing or samples for quotation
2. Negotiations Including the price of mold components for cores & cavities, weight of product, payment, lifetime, delivery, etc.
3. Purchasing Order After the customer confirming the mould design and quotation
4. Making mold components Confirm drawing, start to do DFM, mold flows and mold detail agreed with the customer, start production
5. Production schedule Every week we will feedback to the customer a mold progress (picture)
6. Sample Shoot We provide the moulds Components test samples for confirmation (about 1-2piece), then, get your signature sample, mass production
7. Package Cartons box for parts, or as your requirement
8. Delivery Deliver goods by air or by sea. Express
Frequently Asked Questions
Q1: How Long We Will Get The Goods?
A: Generally it is 2-5 days if the goods are in stock. or it is 16-23 days if the goods are not in stock, it is according to quantity and your customization need
Q2: Do You Have Any Office In My Country?
A: We have no office in other countries now, but with 15 years development, we have been one of the leading manufacturer for plastic mold parts in Dongguan city, which has exported the goods to nearly 35 countries, each components was tested through the strict quality control system before delivery, and we never get any complaint from clients yet
Q3: Could You Provide Us Report When We Need?
A: Yes, we can provide material report, dimensional report and heat treatment report, as well as the special report you require from the third party inspection company
Q4: Could You Accept D/A Payment?
A: At the moment, we accept TT, L/C At sight, Paypal
