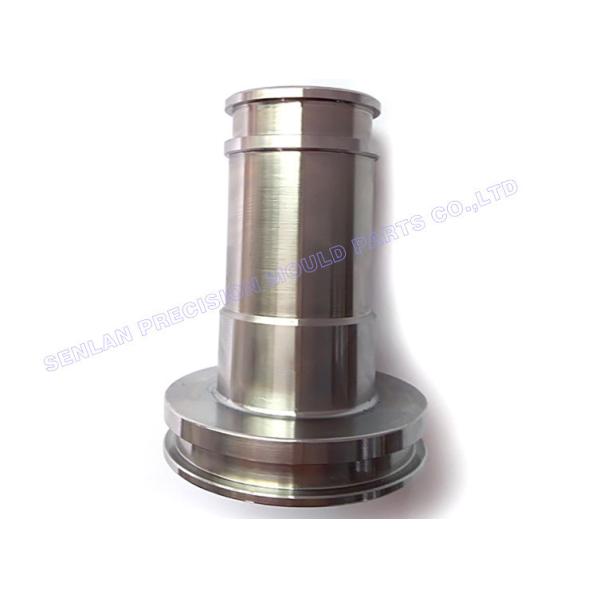

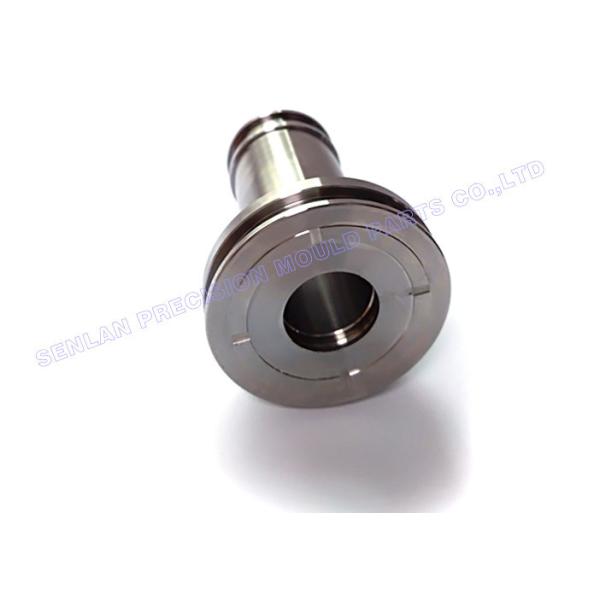

Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Round Head Ejector Pins and Sleeves with Polished Surface and 1.2343 Material for Plastic Injection Mold
Specifications
Brand Name :
SENLAN
Model Number :
SL-011
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000pcs/week
Delivery Time :
5-15 working days
Packaging Details :
Coated with anticorrosive oil, packed in carton box
Standard :
MISUMI/HASCO/DME/PUNCH
Tolerance :
+/-0.005mm
Parts name :
Ejector Pin and Sleeves
Surface treatment :
Polished
Material :
1.2343
Application :
Plastic Injection Mould
Description
Round Head Ejector Pins And Sleeves Insert Parts

Round Head Ejector Pins And Sleeves Insert Parts with Polished Surface Treatment

The sleeve, also called the top tube or hollow sleeve pin, is available in various types including straight sleeves and ladder sleeves. These components are essential metal fittings for ejection devices in round through holes or blind holes within products where glue positioning is required. The system consists of a cylinder and a sleeve pin.

The sleeve is mounted on the ejector plate while the sleeve pin is mounted on the bottom plate. After mold opening, the glue position on the sleeve pin is ejected by the sleeve. When the hole or shaft experiences wear or machining tolerance issues, the original position can be telescopically moved, then restored to original size using a set called the sleeve (cylinder).

Product Specifications
Item Name Ejector pins and sleeves
Material 1.2343, 1.2344, H13, SKD61, SKH51 or customized
Hardness HRC58-62
Tolerance As per standard or drawing
Heat treatment As per standard
Surface treatment TiCN, TiN, Tiain, Ticrn, TD, DLC, Chrome, Black oxygened
Shipment By air (DHL, UPS, TNT, FEDEX) or By sea
Packaging Inner: Plastic bag; Outer: Carton box
Quality Assurance & Services
  • Remake goods freely & promptly if quality issues arise
  • Accept order cancellation for significant quality problems
  • Made to order & samples available
  • Best quality materials & accurate sizing
  • Skilled engineers & advanced technology
  • Precise inspection processes
  • On-time delivery guaranteed
Ordering Process
  • Send us drawings, standard codes & sizes
  • Receive quotation within 24 hours
  • Agree on pricing and sign PO or Contract
  • Make advance payment
  • Sample production available upon request
Our Service Advantages
  • Quick Response: All inquiries replied within 24 hours
  • Competitive Pricing: Direct factory pricing saves costs
  • After-sales Warranty: Prompt resolution of post-delivery issues
  • Flexibility: Small orders accepted for quick delivery and reduced stock costs
  • OEM Service: Custom fabrication from your drawings, samples, or designs
Why Choose Us?
  • Professional high-quality OEM factory
  • Over 8 years of industry experience
  • 90% export rate with excellent customer feedback
  • Strict in-process checking and 100% finished goods inspection
  • Imported milling machines achieving 0.005mm tolerance
  • High quality products at reasonable prices
Compliance Standards

We manufacture according to the following international standards: Hasco, Misumi, DME, Pedrotti, Voest, Strack, Fibro, DIN, DAYTON, PUNCH, DANLY, Lmina

Main Products: Precision mould parts, plastic mould parts, die casting mold parts, mold core pins, ejector pins and sleeves, die punch pins, sprue bushing, locating block, mold date insert, precision CNC machined parts, and more.
