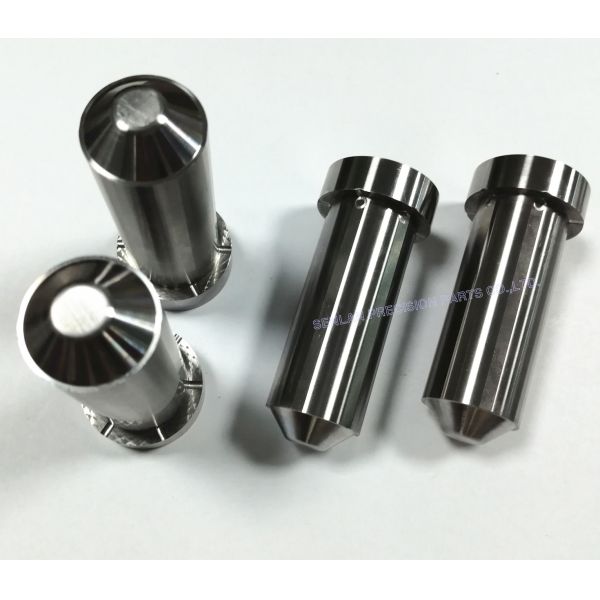

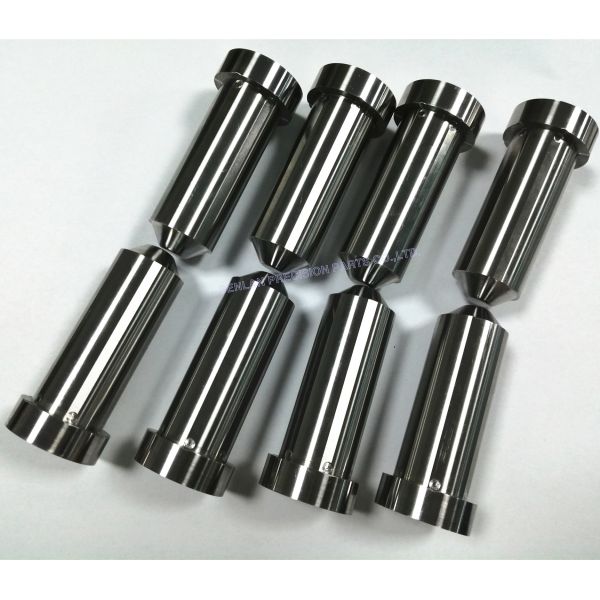

SKH51 Material Die Punch Pins with 58-60HRC Hardness and ±0.01mm Tolerance for Stamping Punch Mould
SKH51 Material Die Punch Pins with 58-60HRC Hardness and ±0.01mm Tolerance for Stamping Punch Mould
SKH51 Material Die Punch Pins with 58-60HRC Hardness and ±0.01mm Tolerance for Stamping Punch Mould
SKH51 Material Die Punch Pins with 58-60HRC Hardness and ±0.01mm Tolerance for Stamping Punch Mould
Specifications
Brand Name :
SENLAN
Model Number :
SL-049
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000pcs/week
Delivery Time :
5-15 working days
Packaging Details :
Coated with anticorrosive oil, packed in carton box
Product name :
Punching Pins
Material :
SKH51
Tolerance :
+/-0.01mm
Hardness :
58-60HRC
Application :
Staming Punch Mould
Dimensions :
Customized
Description
SKH51 Material Die Punch Pins / Polished Punching Pins For Stamping Punch Mould

Die punch pins are essential accessories for stamping die operations. These replaceable mold consumables are mounted on stamping dies to perform continuous punching operations, separating or plastically deforming materials to produce finished or semi-finished products.

Available in various materials including SKD, SKH, and ASP, SKH punch pins are manufactured from specialized mold steel. Material differences result in varying appearances - tungsten steel pins appear darker while high-speed steel pins have a brighter finish.

Product Specifications
Material SKH51
Hardness 58-60HRC or material dependent
Heat treatment Available
Service Made-to-order
Surface treatment TiCN, TiN, Aitain, Ticrn, nitriding, Black oxygened, Black coating etc.
Closest tolerance ± 0.01mm
Polishness Ra0.6
Axiality 0.005mm
Verticality 0.005mm
Manufacturing Process
  1. Drawing & Cutting: Tested raw materials are drawn to desired diameter and cut into rod-shaped punch pin blanks.
  2. Heat Treatment: Blanks are straightened and heated to 800-1300°C for 2-5 minutes, achieving tip hardness of Hv590-800 after oil quenching and tempering.
  3. Grinding Processing: Pins are clamped and ground according to specific angular requirements.
  4. Polishing: Surface cleaning to remove oil, rust, and contaminants.
  5. Inspection & Storage: Quality verification followed by packaging and warehousing.
Our Service Advantages
  • Team Collaboration: Experienced workers, programmers, QC, sales, and management working cohesively to fulfill orders.
  • Technical Expertise: Monthly skill development training where engineers and workers share innovative ideas and techniques.
  • Excellent Communication: Fluent English-speaking sales team with comprehensive machining knowledge for clear understanding of requirements.
Main Products
  • Core pins, cavity pins, insert pins
  • HSS punches, precision punches, special-shaped punches
  • Ejector pins, ejector sleeves, two-stage ejector pins
  • Guide pillars, guide bushings, guide post sets
  • Slide core units, latch locks, locating series
