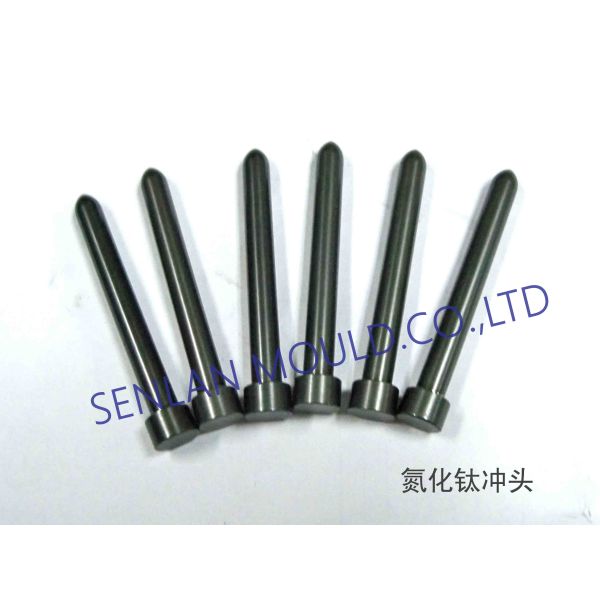

High-precision stamping punch mould die punch pins manufactured from SKH51 material with optional TIN/TICN DLC coating for enhanced durability and performance.

• Carbide
• ASP23
• M2
• SKH51
• D2
• SKD11

60-62 HRC or customized based on processing materials

• Standards: MISUMI, HASCO, DME, DAYTON
• Size tolerance within ±0.001mm
• Axiality within 0.002mm
• Roundness within 0.0015mm
• Polishing: Close to Ra0.4 (standard is R0.8)
• Coating services: TiN, TiCN, and DLC
• Further dimensions, lengths and materials available on request
• Replaceable punch & die when worn

• CNC machining center
• CNC milling machine
• CNC lathe machine
• Sodick EDM
• Sodick Wire-cutting
• OD Grinding, ID Grinding
• Surface grinding machine

Alteration Order Code: TIN -- Add 3 days to Delivery

TiN is the least expensive and most commonly used PVD wear resistant coating offering:

• Excellent wear resistance on cutting edges and wear surfaces
• Excellent lubricity
• Suitable thermal stability for most cold work metalworking applications
• High microhardness of 2300 Vickers

Note: TiN works best when used with lubricants and is not recommended for uses in stainless steel, nickel, or copper applications.

Alteration Order Code: TiCN -- Add 4 days to Delivery

TiCN has the broadest range of application use regarding PVD coating including stainless steel, nickel, and copper metal working operations offering:

• Higher hardness and lower coefficient of friction than TiN coating
• Extremely high wear resistance on cutting edges and wear surfaces
• Improved lubricity
• Extremely high micro hardness of 3000 Vickers

Note: Suitable for uses in stainless steel, nickel, or copper applications.

Alteration Order Code: TAN -- Add 3 days to Delivery

TiAlN is ideal for applications where surface heat is generated, which converts the aluminum constituent to aluminum oxide for added protection against shear stress and wear resistance on cutting edges.

• High thermal stability
• Extremely high micro hardness of 3400 Vickers

• Core pin, cavity pin, insert pin
• HSS punch, Precision punch, Special-shaped punch
• Ejector pins, ejector sleeve, two-stage ejector pins
• Guide pillars, Guide bushings, Guide post set
• Slide Core Units, Latch locks, locating Series

• Established in 2006
• Factory size: 2500 square meters
• Research & Development Group: 6 people
• Equipment & Machine: All imported precision equipment
• Good reputation in Mold Components Area
• One-step service for time and cost efficiency
• Complete quality management system
