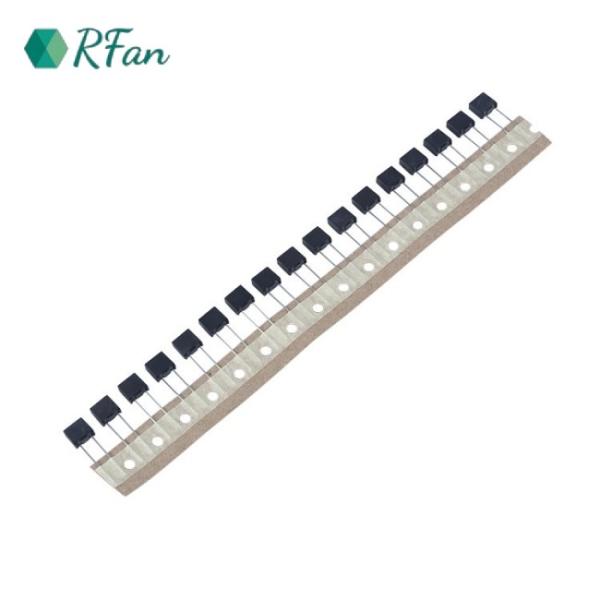

NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
Specifications
Brand Name :
RFan
Model Number :
NTS1125A
Certification :
UL.TUV.ROHS
Place of Origin :
China
MOQ :
3000
Price :
0.02-0.5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1KK/M
Delivery Time :
5-7days
Packaging Details :
1000/Bag
Material :
fiber Tube
Application :
Photovoltaic Applications
Mount :
Stud Mount
Filler :
Silica
Applications :
Industrial Equipment, Motor Control Centers, Power Distribution Systems
Features :
High Interrupting Rating, Low Watt Loss, Time Delay
Description

8x4x7mm NTS1125A 300V 1.25A Time-Lag Radial Lead Micro Fuse Quick Acting Fuse Square Plastic Sealed Fuse
8x4x7mm NTS Series Time-Lag Radial Lead Micro Fuse
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed

●Materials

Part NameMaterial
Cap&BaseBlack/Brown Thermoplastic,UL94 V-0
Lead wireCopper,Tin-plated


●Packaging

Packing typeDescription

Bulk

1,000PCS per bag
Tape1,000PCS per box


●Dimensions
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
NTS1125A 300V 1.25A Mini Radial Lead Fuse Quick Acting Square Plastic Sealed
●Electrical Characteristics

%of Ampere Rating(In)Blowing Time
150%*In(60 min Minimum)
210%*In(2 min Max)
275%*In(400 ms~10 s)
400%*In(150ms~3 s)
1000%*In(20 ms~150 ms)


●Fuse List

Catalog NumberAmpere RatingVoltage RatingMax Voltage Drop(mv)

TMelting

Integral(As

NTS0050A50mA300V6550.04
NTS0100A100mA300y4100.31
NTS0125A125mA300V3230.42
NTS0160A160mA300V2960.57
NTS0200A200mA300V2720.71
NTS0250A250mA300V2510.91
NTS0315A315mA300V2370.63
NTS0400A400mA300V2111.22
NTS0500A500mA300V2022.34
NTS0630A630mA300V1912.88
NTS0800A800mA300V1723.92
NTS1100A1A300V2008.77
NTS1125A1.25A300V20010.22
NTS1160A1.6A300V19014.88
NTS1200A2A300V17029.90
NTS1250A2.5A300V17047
NTS1315A3.15A300V15062
NTS1400A4A300V130104
NTS1500A5A300V130195
NTS1630A6.3A300V130378
NTS1800A8A300V100521
NTS2100A10A300V100640
