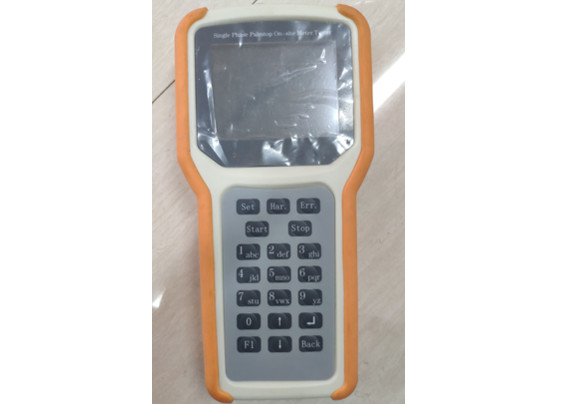

3.5 LCD Display Portable Meter Test Equipment GPS Module Single Phase RSM
3.5 LCD Display Portable Meter Test Equipment GPS Module Single Phase RSM
Specifications
Brand Name :
HNMC
Model Number :
MCSP01
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 sets per month
Delivery Time :
15-30 days
Packaging Details :
Carton package
Accuracy :
0.2, 0.5
Current range :
10-300A （clamp mode,optional)
Voltage range :
80-288V
GPS/GPRS :
Available for option
Application :
Filed Testing
Functions :
Meter error, dial test....etc
Description

Portable Single Phase Reference Standard Meter MCSP01

1) 3.5" LCD display

2) Accuracy class: 0.2 or 0.5 (clamp mode)

3) Measuring range: 80V-288V/clamp 10A, 50A, 60A, 100A, 300A optional

4) Power & Energy test, Demand test, Error test, Dial test

5) RS232 communication with PC to upload the test data

6) GPS/GPRS module (optional)

7) DLMS reading (optional)

Technical Index

Current Measurement
Range clamp on CT: 10A, 50A, 60A, 100A, 300A, etc… optional
Accuracy 0.2 or 0.5 class
Voltage measurement
Range 80-312V
Accuracy 0.2
Frequency measurement
Range 45-65HZ
Error ≤ 0.02HZ
Phase angle measurement
Range 0-360 deg.
Error ≤0.1 deg.
Other parameters
Power supply 240V±30%
Power Consumption less than 2VA in current circuit and less than 8VA in voltage circuit

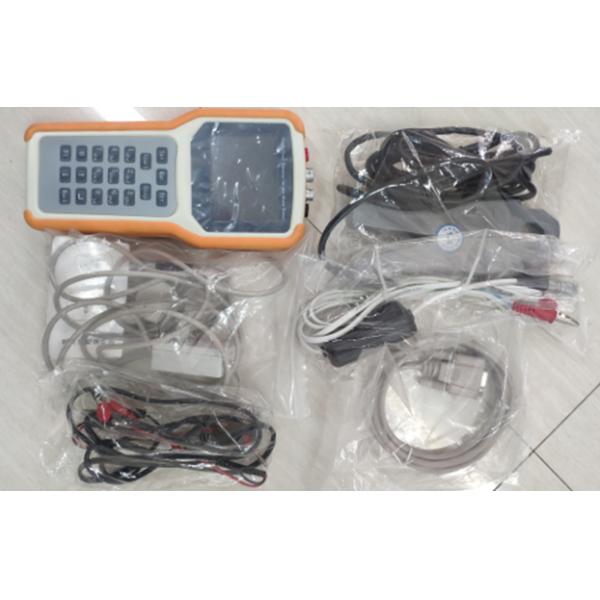

3.5

Features

1) Test all kinds of electronics/electromechanical single phase meter at site

2) Test and display of basic error, voltage, current, power, power factor, energy, harmonics, etc

3) Dial test / demand test

4) PC software for uploading test data then analyze then generate report

5) Alpha numeric keyboard

6) Optical sensor with clamp or attaching disc to hold & count LED/LCD signal pulse

7) Snap switch to be used as an alternative of scanner/sensor head

8) Clamp-on CT with electronic compensation

9) Display error and store total energy including harmonics

10) LCD display

11) High Resolution Display

12) Two kinds of operation modes (auto & manual)

13) Indication with the display under below conditions:

a. over current (more than 120%)

b. over voltage (more than 130%)

c. low voltage (less than 70%)

14) Store 200 & more test results

15) Interface to connect external printer

16) PC management software of uploaded the test records

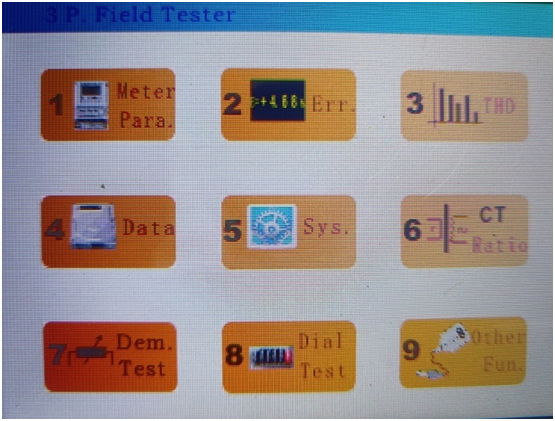

Function Menu Interface:

1) Meter Parameter Setting 2) Error Test 3) THD 4) Data Save & Inquiry

5) System setting 6) CT ratio test 7) Demand test 8) Dial test 9) others

3.5
