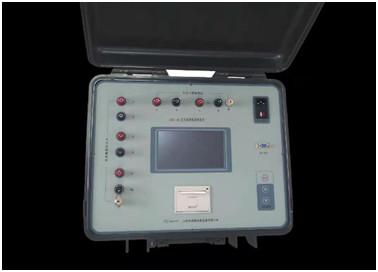

500VA CT PT Test Equipment , Portable CT PT Analyser
500VA CT PT Test Equipment , Portable CT PT Analyser
Specifications
Brand Name :
HNMC
Model Number :
MCPT01
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
20 Sets Per Month
Delivery Time :
30-45 days
Packaging Details :
Wooden Package
Accuracy class :
0.05
Application :
Filed test, lab test
Test function :
Ratio, ratio error, phase angle error.....
Voltage ratio range :
6～66kV/100V; 6/√3~110√3kV/100/√3V
Secondary burden :
5-500VA
Weight :
20kgs
Description

Portable PT Test Equipment MPT01

Technical Index

Accuracy class 0.05
Voltage ratio test range

6～66kV/100V 6/√3~110√3kV/100/√3V

6kV/100V,(6/√3)kV/(100/√3)V, 6.6kV/100V,(6.6/√3)kV/(100/√3)V,10kV/100V,(10/√3)kV/(100/√3)V,35kV/100V,(35/√3)kV/(100/√3)V,66kV/100V,(66/√3)kV/(100/√3)V,and(110/√3)kV/(100/√3)V
Secondary burden 5-500VA
Maximum output capacity 800VA
Power factor 0.8 or 0.1-1
Dimension 400×300×180mm
Weight 20kgs

Features

1) Portable Field testing with function equal to test bench

2) Integrating standard PT, voltage regulator, voltage generator, voltage burden

and transformer comparator together

3) Ratio test, ratio error test, phase angle error test, polarity test, burden test, etc.

4) Can test electromagnetic type PTs with accuracy 1 to 0.2 class (allowing with other secondary winding)

5) Nameplate guess

6) Can be used as CT PT transformer comparator

Technical service

Much experienced technical team will provide strong technical support for your market development. We can provide support on customization, maintenance, device design, construction scheme, design optimization, and product development.

Quality control

We have professional quality control team. Our quality control covers materials, production procedure, finished product inspection, final inspection before loading, inspection report.

500VA CT PT Test Equipment , Portable CT PT Analyser
