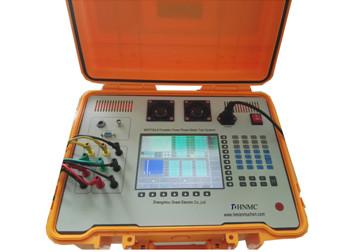

Touch Screen Portable Energy Meter Test Equipment Overload Protection
Touch Screen Portable Energy Meter Test Equipment Overload Protection
Specifications
Brand Name :
HNMC
Model Number :
MCPTS3.0
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden Package
Accuracy class :
0.02, 0.05
Display :
7"LCD, touch screen
Harmonic :
2-63 times
Voltage Range :
30-300V （P-N), up to 480V
Current range :
1mA-20A, or more
Frequency :
40-70HZ
Description

Portable Three Phase Meter Tester System MCPTS3.0

1. Big LCD display 7”, touch screen and keyboard

2. High accuracy 0.05 or 0.02 (optional)

3. High stability output

4. 2-63 times harmonic measurement

Technical Index

Accuracy 0.05% or 0.02% (optional)
Test range
Voltage 30-300V (P-N) (480V optional)
Current 1mA-20A
Frequency 40-70HZ, resolution 0.001HZ
Phase angle 0-359.99°, resolution 0.001°, error 0.02°
Voltage source
Range 30-300V (P-N), 480V optional resolution: 6 digits valid value
Output Accuracy 0.02%
Output capacity 50VA/phase
Output stability 0.02%/3mins
Output distortion <0.2%
Current source
Range 1mA-20A, resolution: 6 digits valid value
Output Accuracy 0.02%
Output capacity 100VA/phase
Output stability 0.02%/3mins
Output distortion <0.2%
Other parameters
Supply Voltage AC 80-300V, 50/60HZ

Features

1) High accuracy standard meter integrated with phantom load generation source

2) Test & display: basic error, current, voltage, power (P.Q.S), energy (P.Q.S), power factor,

phase angle, frequency, etc

3) Display phase voltage (P-N), line voltage (P-P), line current (P-P),

each phase/total phases power & energy (P,Q,S), harmonics, spectrogram, vector diagram, waveform,

phase sequence and etc

4) Start test/Creep Test/Dial Test/demand test

5) With short-circuit voltage, current open-circuit protection, overload protection, over-voltage protection

6) Can store data up to 1000 pcs

7) RS232 communication port with PC

8) PC software
