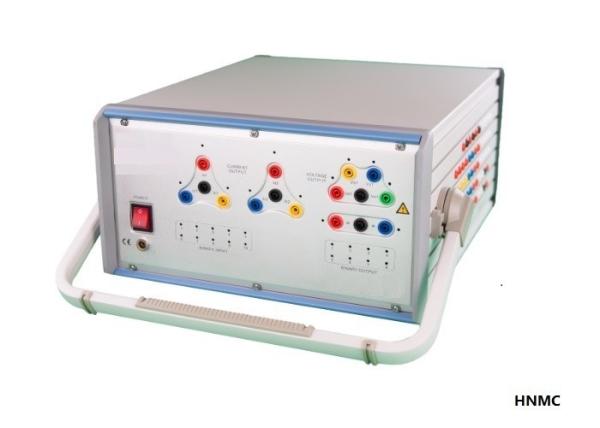

Touch Screen Control Protective Relay Tester IEC61850
Touch Screen Control Protective Relay Tester IEC61850
Specifications
Brand Name :
HNMC
Model Number :
MC3000F
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 Sets Per Month
Delivery Time :
4-8weeks
Packaging Details :
wooden package
Voltage Range :
4*300V/100VA
Current Range :
6*30A/450VA
Frequency :
up to 1000HZ
DC :
up to 300V
Weight :
≤16.5kg
Auxillary DC supply :
0-300V
Description

Advanced Multifunctional Relay Test Set

The MC3000F is the all-in-one test system for protection relay testing and commissioning applications.

In addition to the ability of testing conventional protective relay with analog voltage and current outputs,

the MC3000F can also test IEC61850 complied digital protection devices and systems, such as simulating

/subscripting GOOSE messages, publishing Sampled Values. The 12 low level analog output are provided

for stimulating devices with low level inputs.

Relay protection microcomputer test device plays a key role in operating electricity power systems

reliably and safely. It is the testing device used in professional field of microcomputer protection,

relay protection, excitation measurement, fault recorder.

Specifications

Voltage
Range 4 x 300V / 100VA
Accuracy error < 0.05 % rd.+ 0.01 % rg. typ.
Output time continuous
Current
Range 6 x 30A / 450VA
Accuracy error < 0.1 % rd. + 0.02 % rg. typ.
Output time > 15 Sec. at 30A
Frequency
Range DC, 0.001Hz~1000Hz
Accuracy ±1ppm
Resolution 0.001Hz
Others
Auxillary DC supply 0-300V
Binary inputs 8
Binary outputs 4
Low level outputs 12
Time synchronization GPS, IRIG-B
Weight ≤16.5kg
IEC 61850
GOOSE simulation/subscription
Sampled Value publishing
Support FT3 protocol
