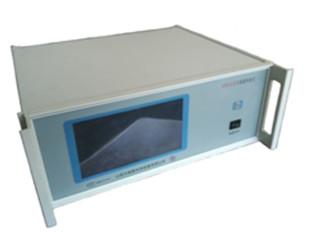

Digital CT PT Test Equipment Comparator With LCD Display
Digital CT PT Test Equipment Comparator With LCD Display
Specifications
Brand Name :
HNMC
Model Number :
HEW series
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
30 sets per month
Delivery Time :
30-45 days
Packaging Details :
Wooden Package
Accuracy class :
2%
Test function :
Ratio error, phase angle error, impedance & admittance test
Current range :
1A, 5A
Voltage range :
100V,100/√3V
Description

Digital Transformer Tester HEW series CT PT Comparator

Technical Parameter

Accuracy class 2
Current range 5A, 1A
Voltage range 100V,100/√3V
Percentage Error Less than 1.5%*FS
Basic Error
When testing CT PT error & impedance & admittance, the error will not beyond:

ΔX=±(X*2%+Y*2%+Dx)

ΔY=±(X*2%+Y*2%+Dy)

ΔX: basic error limit value of in-phase component

ΔY: basic error limit value of Quadrature Component

X: Indication absolute value of in-phase component

Y: Indication absolute value of Quadrature Component

Dx & Dy: Zero error and Quantizing Error

When testing CT & PT, Dx,Dy=1(or 2)%*(Error limit value of CT & PT

When testing Z & Y, Dx,Dy= 3 digits

Test Range & Resolution

CT PT Accuracy Test Range Highest Resolution
In-phase component Quadrature Component In-phase component Quadrature Component
0.01 ±0.4000 ±13.752 0.0001% 0.001'
0.02
0.05
0.1 ±4.000 ±137.52 0.001% 0.01'
0.2
0.5
1.0 ±40.00 ±999.9 0.01% 0.1'
Impedance Test Range & Resolution
Range Test Range (Ω) Resolution
5A ±1.000 0.0001
1A ±6.000 0.0001
Admittance Test Range & Resolution
Range Test Range (mS) Resolution
100V ±9.9999 0.0001
57.7V ±9.9999 0.0001

Features

  1. Big LCD display, touch screen
  2. Test of ratio, ratio error, phase angle error, impedance, admittance
  3. Independently used or work together with test bench
  4. high stability and reliability

Digital CT PT Test Equipment Comparator With LCD Display

Design for option
