Specifications
Brand Name :
KaiMiao
Place of Origin :
China
Model Number :
KMDS612 / KMYX612
Certification :
Rohs, E-marks E24
MOQ :
1 pc
Price :
1 pc: US$220, ≥2 pcs: Negotiable
Payment Terms :
T/T, PayPal, MoneyGram
Supply Ability :
20000 pcs / month
Delivery Time :
3-5 working days
Packaging Details :
80*23*15cm,5.5-6 kg
Car Model :
Toyota Mark X
Year :
2008-2009
Type :
Upgrade Car Trunk
Rated Voltage :
12V
Material :
Metal and Plastic
Working Current :
5A (Instantaneous Working Current:<2mA)
Warranty :
1 Year
Kick Sensor :
Optional
Description

Toyota Mark X Automatic Electric Tailgate Lift Electric Boot Opener With Height Adjustment

Toyota Mark X Automatic Electric Tailgate Lift Electric Boot Opener With Height Adjustment

The method of opening electric tailgate:

1. Pressing the vehicle's tailgate opening key.

The opening and closing of the tailgate can be achieved by pressing the tailgate opening key on the dashboard or tailgate of the vehicle.

2.The original car fobs.

The open/close operation of the tailgate is realized by the unlock/lock key on the original car fobs.

3. Induction operation. Place your hands or foot on the corresponding sensing area of the tailgate to automatically open the tailgate.

Safety:

1.Qualified electric tailgate products should have the function of intelligent detection of obstacles and emergency braking. When the tailgate is opened, obstacles can be induced and the trunk door will automatically retracted to avoid burning out the motor. When closing, the trunk door will bounce back automatically to avoid accidental pinching or damage to the vehicle.

2. About the original car modification

Electric tailgate modification belongs to automotive electronics modification. Safety is the primary consideration for the modification of automotive electronics products. Qualified electric tailgate modification products should be installed to avoid changing to the original car computer, circuit and damage the car body.

The main function:

1. Self-opening

By pressing the vehicle's tailgate opening key, the original key fobs and sensing operation to realize the opening and closing of the tailgate. It's easy to put objects in your vehicle.

2. Smart anti-pinch function

When the power tailgate opens or closes, it will encounter obstacles and the tail gate will move in the opposite direction, effectively preventing children from being injured or damaging the vehicle.

3.Emergency lock function

The tailgate can be stopped at any emergency condition by pressing the remote control key or the tailgate opening key of the vehicle.

4.Memory height function

The height of the rear door can be adjusted according to the usage habits. Pressing the tailgate opening key and opening it to the preset height, and then tap the switch key for more than 5 seconds. When you hear a sound "DI——", the setting of the tailgate opening height is finished. The next time you open the tailgate, the height will automatically rise to the set height

Automatic Electric Tailgate Lift Description:

The tailgate/trunk can typically be opened and closed using buttons located on the key fob, the dashboard, or directly on the tailgate/trunk itself. Some systems also offer hands-free operation, where a gentle kick or wave under the rear bumper can trigger the opening or closing.

Electric tailgate/trunk lift systems provide enhanced convenience, accessibility, and safety compared to manual operation. They are commonly found on modern SUVs, minivans, and hatchbacks.

Toyota Mark X Automatic Electric Tailgate Lift Electric Boot Opener With Height Adjustment

Technical Parameters:

Part Name

Parameters

Rated Voltage:

12V

Operating Voltage:

9-16V

Working Current:

5A (Instantaneous working current: <20A)

Operating Temperature:

-30℃ ~ 80℃

Quiescent Current:

<2mA

Storage Temperature:

-40℃ ~ 90℃

Remote Control:

Key Fob / Front Dash Button / Back Tailgate Button / Foot (Kick) Sensor (Optional)

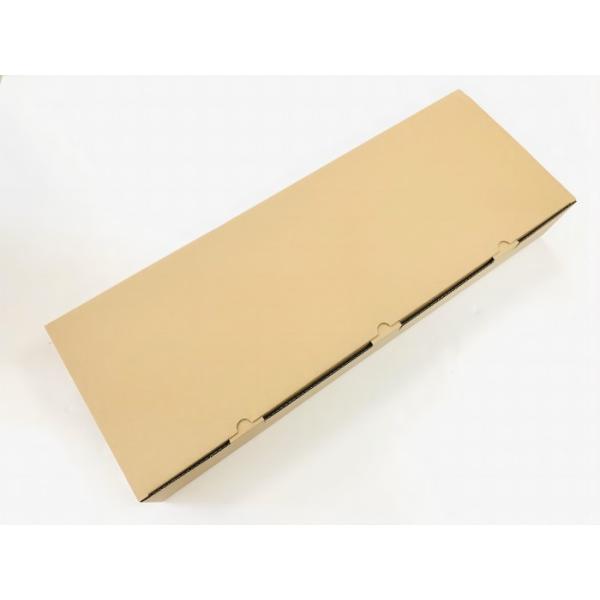

Package & Shipping

Package Size: 80*23*15 cm
Gross Weight: ≈5.5-6 kg
Package Type: Neutral Packing
Delivery time: In stock: 1-2 working days
Out of stock: 5-7 working days
