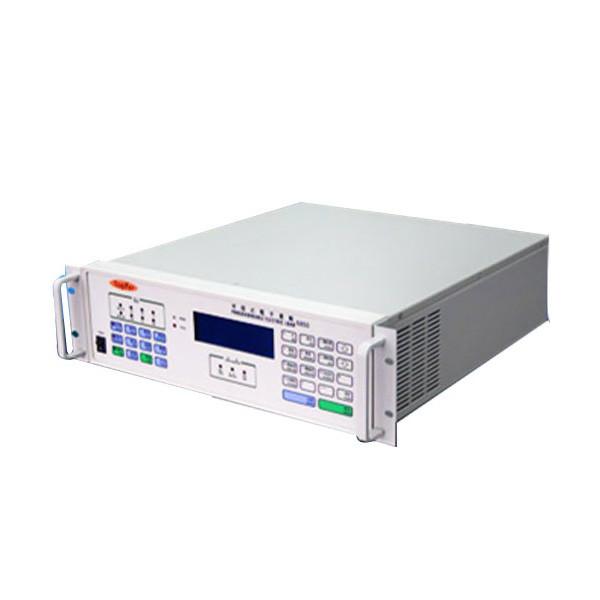

CC CR Programmable Electronic Regenerative DC Load Device 100V 300W
CC CR Programmable Electronic Regenerative DC Load Device 100V 300W
Specifications
Brand Name :
Topfer
Model Number :
TopFer 6800
Place of Origin :
China
MOQ :
one set
Price :
to be discussed
Payment Terms :
T/T
Supply Ability :
10 sets /20 days
Delivery Time :
1 to 2 weeks
Packaging Details :
wooden crate
power :
300W
voltage :
100V
Range :
0-1A/0-50A
Resolution :
12 bits
Accuracy(250C) :
0.2%+2% F.S. @If.s=1A
Min.operating :
1.0V @1A/3.0V @50A
Description

The programmable DC electronic load, TopFer 6800, features fast testing speed and high efficiency

Product Features of Programmable DC Electronic Load TopFer 6800:

  1. Fast testing speed and high efficiency.
  2. Provides full-function testing for the 'power supply under test,' meeting both production quality management and R&D needs.
  3. Accurately simulates various load states of the 'power supply under test,' such as static, dynamic, and transient conditions.
  4. Accurately measures: DC voltage, peak-to-peak ripple, RMS ripple, voltage change rate, and transient time.
  5. STN blue, 240*60 dot matrix LCD display.
  6. Includes a Chinese manual operation mode.
  7. CV, CC, CR test modes are available to meet constant voltage testing requirements for adapters, chargers, PC power supplies, etc

Specifications:

Specifications
Max.power Max.voltage Min.operating
300w 100V 1.0V @1A
　 3.0V @50A
Load current　　　　 Range Resolution Accuracy(250C)
0-1A/0-50A 12 bits 0.2%+2% F.S. @If.s=1A
0.2%+0.7% F.S. @If.s=50A
Tc Overshoot
50ppm/c 0.5%F.S
Load resistance　　　 Range(If.s=1A) Range(If.s=50A) Resolution
1.001-1000ohm 0.030-800ohm 12 bits
Tc Accuracy(250C) Accuracy(250C)
50ppm/0C 0.2%+2% F.S. @If.s=1A 0.6%+0.7% F.S. @If.s=50A
Slew rates　　　 Range(If.s=1A) Range(If.s=50A) Resolution
1-50mA/us 5-2500mA/us 12 bits
Accuracy
5%
Dynamic period　 Range Resolution Accuracy
4uS-10uS 1uS 1uS+100PPM
Timings Range Resolution Accuracy
0-16sec/0-1000sec 256uS/25mS 1uS+100PPM
EXT.wave input Range Transfer ratio Accuracy
0-10V 0.1A/V @If.s=1A 0.2% @If.s=1A
5.0A/V @If.s=50A 0.6% @If.s=50A
Basic test NO.
8
DC voltage Range Resolution Accuracy
0-10V/0-100V 14 bits 0.05% F.S @Vf.s=10V
0.02%+0.05% F.S @Vf.s=100V
Pk-Pk ADC Range Resolution Accuracy
0-10V/0-100V 12 bits 0.05% F.S @Vf.s=10V
0.02%+0.05% F.S @Vf.s=100V
Freq.
25Hz-20 KHz
Pk-Pk detector Range Resolution Accuracy
0-1V/0-10V 14 bits 1%+10mV
Freq.
25Hz-1000 KHz
RMS noise Range Resolution Accuracy
0-1V/0-10V 14 bits 1%+10mV
Freq.
25Hz-1000 KHz
Current Range Resolution Accuracy
0-1A/0-50A 14 bits 0.2%+2% F.S. @1A
0.2%+0.7% F.S. @51A
Timing Range Resolution Accuracy
0-16 sec 1 us 10us+100PPM
Constant Volbage Range Resolution Accuracy
1-50V 14 bits 0.07%+0.08% F.S @Vf.s=10V
0.07%+0.08% F.S @Vf.s=100V
