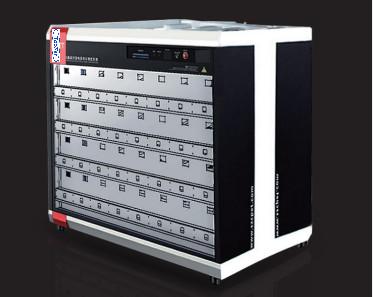

120W/CH Power Supply Feedback Aging System Energy Storage For Testing Machine
120W/CH Power Supply Feedback Aging System Energy Storage For Testing Machine
Specifications
Brand Name :
Topfer
Model Number :
TF-CN50120T
Place of Origin :
China
MOQ :
one set
Price :
to be discussed
Payment Terms :
T/T
Supply Ability :
1 sets /40 days
Delivery Time :
5 to 6 weeks
Packaging Details :
wooden crate
Single Channel Power :
120W/CH
Dimensions :
2050*900*1950
Product Voltage Range :
1-1000V
Energy Saving :
More than 85%
Product Current Range :
0.05A-20A
Description

Energy Storage Power Supply Energy-Saving Aging System/Capable of realizing CC, CV, CR, CP, and LED five load modes

Application Range:

Energy Storage Power Supply

Functions and Advantages:

  1. Software-set load parameters, real-time monitoring of voltage, current, power, etc.
  2. Five load modes: CC, CV, CR, CP, LED
  3. Channel parallel connection in any load mode to meet product power expansion needs
  4. Power supply aging from low to high voltage, low to high current, etc.
  5. Built-in over-temperature and smoke alarm automatic protection device
  6. Editable switch timing sequence, load transformation function
  7. Compatible with power supply aging monitoring software
  8. Multiple DC adapter plate interfaces to meet different output interface product requirements
  9. Various layer board structures in the product area for easier operation with different products
  10. AC electrical parameter measurement module to test power supply input characteristics (optional)
  11. Voltage automatic switching function (optional)
  12. Product area temperature monitoring function (optional)
  13. PWM dimming and two sets of logic control signal functions (optional)
  14. Multiple module models available for energy-saving and non-energy-saving options
  15. Energy-saving conversion efficiency of over 85%

Specification Table:

Model TF-CN50120T
Single Channel Power 120W/CH
Number of Load Channels 120CH
Load Voltage Range 1-1000V
Load Current Range 0.05-20A/CH
Load Accuracy ±(1%+0.05FS)
Number of Layers in Product Area 6
Height of Layers in Product Area 170
Width of Product Area 380
Load Module Selection Electronic Load Type
Load Mode CC+CV+CR+CP+LED
Temperature Control in Product Area Product Area Temperature Control: Ambient to -60°C
Trolley Structure Material Finely processed cold-rolled plate
Main Control Method Computer Monitoring Power Supply Aging Supervision Software
Input Method of Power Supply Under Test Universal Socket/Speaker Clamp/Customized by Customer
Interface Method of Power Supply Under Test Multiple specifications of adapter fixture plates to choose from/Customized by customers
Exterior Dimensions(L*W*H) 2050*900*1950/Customized by Customer
