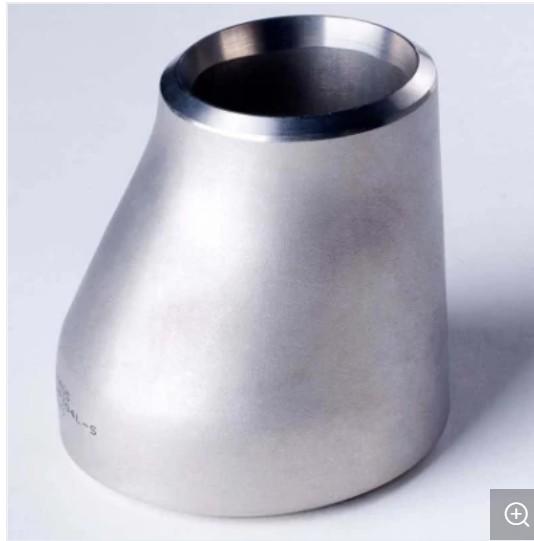

Stainless Steel 304/316/321 A234wpb Butt Welded Reducer 10-20mm Thickness
Stainless Steel 304/316/321 A234wpb Butt Welded Reducer 10-20mm Thickness
Stainless Steel 304/316/321 A234wpb Butt Welded Reducer 10-20mm Thickness
Stainless Steel 304/316/321 A234wpb Butt Welded Reducer 10-20mm Thickness
Specifications
Brand Name :
HYZONT
Model Number :
304/316L
Certification :
ASTM
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, D/P, D/A, T/T
Supply Ability :
5000ton
Delivery Time :
5-7 days
Packaging Details :
Nake Packing
Steel Grade12Cr1MoVG :
304/316L
Application :
Thermal Boiler Pipeing
Thickness of pipe :
10-20mm
OD :
1/2"-20"
Description

Stainless Steel 304/316/321 A234wpb Butt Welded Reducer

Product Description

Size 1/2"---72"
Wall thickness Sch10-Sch160
Standard ANSI B16.9,MSS SP 43, DIN2615, EN10253, GOST17376, JIS B2313, MSS SP 75, etc.
Material ASTM A234,SS304/L,SS316/L,SS321/H,ASTM WP5,WP9,WP11,

A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,

P235GH, P265GH, P280GH,P295GH,P355GH and etc.
Surface Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE...
Price Term FOB, CIF, CFR
Payment T/T 30% in advance, the balance before shipment;100% LC
Packaging Plastic film,wooden cases, wooden pallet
Delivery 20-30 days, after received advance payment.
Application Petrochemical industry;aviation and aerospace industry;pharmaceutical industry; gas exhaust; power plant; shipbuilding;water treatment,etc.

Product Parameters


Stainless Steel 304/316/321 A234wpb Butt Welded Reducer 10-20mm Thickness
Concentric Reducer:
Dimension (mm)
Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS Series A Series B H
20×15 3/4×1/2 26.9×21.3 25×18 38
20×10 3/4×3/8 26.9×17.3 25×14 38
25×20 1×3/4 33.7×26.9 32×25 51
25×15 1×1/2 33.7×21.3 32×18 51
32×25 1.1/4×1 42.4×33.7 38×32 51
32×20 1.1/4×3/4 42.4×26.9 38×25 51
32×15 1.1/4×1/2 42.4×21.3 38×18 51
40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
40×25 1.1/2×1 48.3×33.7 45×32 64
40×20 1.1/2×3/4 48.3×26.9 45×25 64
40×15 1.1/2×1/2 48.3×21.3 45×18 64
50×40 2×1.1/2 60.3×48.3 57×45 76
50×32 2×1.1/4 60.3×42.4 57×38 76
50×25 2×1 60.3×33.7 57×32 76
50×20 2×3/4 60.3×26.9 57×25 76
65×50 2.1/2×2 73.0×60.3 76×57 89
65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
65×25 2.1/2×1 73.0×33.7 76×32 89
80×65 3×2.1/2 88.9×73.0 89×76 89
80×50 3×2 88.9×60.3 89×57 89
80×40 3×1.1/2 88.9×48.3 89×45 89




Stainless Steel 304/316/321 A234wpb Butt Welded Reducer 10-20mm Thickness
NOMINAL PIPE SIZE ALL FITTINGS ALL FITTINGS ALL FITTINGS ELBOWS AND TEES 180 DEG RETURN BENDS 180 DEG RETURN BENDS 180 DEG RETURN BENDS REDUCERS CAPS
NPS O.D. at Bevel (1), (2) I.D. at End Wall Thickness (3) Centre-to-End Dimension A,B,C,M Centre-to-Centre O Back-to-Face K Alignment of Ends U Overall Length H Overall Length E
(1), (3), (4)
½ to 2½ 0.06 0.03 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
-0.03
3 to 3 ½ 0.06 0.06 0.06 0.25 0.25 0.03 0.06 0.12
4 0.06 0.06 0.06 0.25 0.25 0.03 0.06 0.12
5 to 8 0.09 0.06 0.06 0.25 0.25 0.03 0.06 0.25
-0.06
10 to 18 0.16 0.12 0.09 0.38 0.25 0.06 0.09 0.25
-0.12
20 to 24 0.25 0.19 0.09 0.38 0.25 0.06 0.09 0.25
-0.19
26 to 30 0.25 0.19 0.12 … … … 0.19 0.38
-0.19
32 to 48 0.25 0.19 0.19 … … … 0.19 0.38
-0.19
