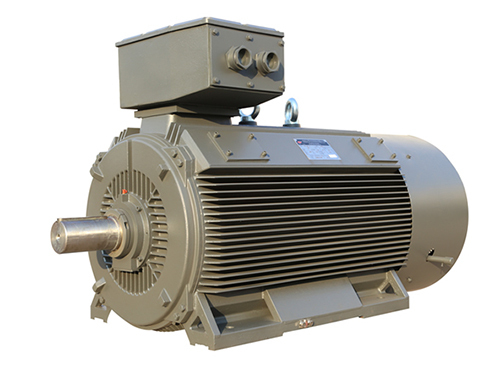

Low Tension High Power Three Phase Asynchronous Motor YME2 Series
Low Tension High Power Three Phase Asynchronous Motor YME2 Series
Specifications
Brand Name :
CNDK
Model Number :
YME2
Certification :
CCC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
500 sets per year
Delivery Time :
15-30 Days
Packaging Details :
wooden case
Site Conditions :
-20℃ to +40℃, and the altitude is ≤1000 meters.
Cooling And Ventilation :
Air cooling
Protection level: :
IP55
Voltage Frequency :
380V/50Hz
FM frequency :
0-70HZ
Description

YME2 Series Low Tension High Power Three-Phase Asynchronous MotorLow Tension High Power Three Phase Asynchronous Motor YME2 Series

Product Description

YME2 series low-voltage high-power three-phase asynchronous motor is a series of motor products independently developed by Shenyang Electric Manufacturing Co., Ltd., which meets the IE energy efficiency level of the IEC 60034-30-1: 2014 standard.
The installation dimensions of YME2 series motors comply with the IEC60034 standard. It has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection level and high insulation level. It can be widely used in dragging compressors, ventilators, water pumps, crushers, metal cutting machine tools, coal mills, transportation machinery, etc. It can also be used as prime mover for mining industry, machinery industry, petrochemical industry and other industrial and mining enterprises.
Main parameters: Power range: 200～900kW; Frame size: 355-450; Voltage and frequency: 380V/50Hz, 660V/50Hz, voltage and frequency can also be customized according to user requirements;

Detailed Description

◆ Site Conditions

YME2 series motors can be applied to most occasions and environments. The standard working condition of the motor is -20℃ to +40℃, and the altitude is 1000 meters.

◆ Temperature Rise And Insulation

The motor is designed in accordance with Class F insulation (105K), which improves the service life and reliability of the motor.

◆ Cooling And Ventilation

According to the regulations of IC411 in IEC60034-6, the standard cooling method is totally enclosed self-fan cooling (TEFC). The standard motor is equipped with an auxiliary flow plastic fan.

◆ Protection Level

The protection level of the motor is IP54 (IP55 can also be made according to requirements), and it can be used in dusty or humid environments. A motor with a higher degree of protection can also be provided.

◆ Motor Protection

PTC, PT100 and other winding and bearing temperature measurement and protection devices can be installed according to requirements.

◆ Voltage Frequency

The standard motor is 380V/50Hz, and a 50Hz or 60Hz motor with any voltage in the range of 380-660V can also be designed. It can still operate well when the supply voltage deviates from the rated voltage by ±5%.

◆ Vibration

The vibration speed level of the YME2 series motor measured at no load meets the N (standard) level.

◆ Junction Box Location

The junction box is a standard YME2 series motor on the top of the base.
