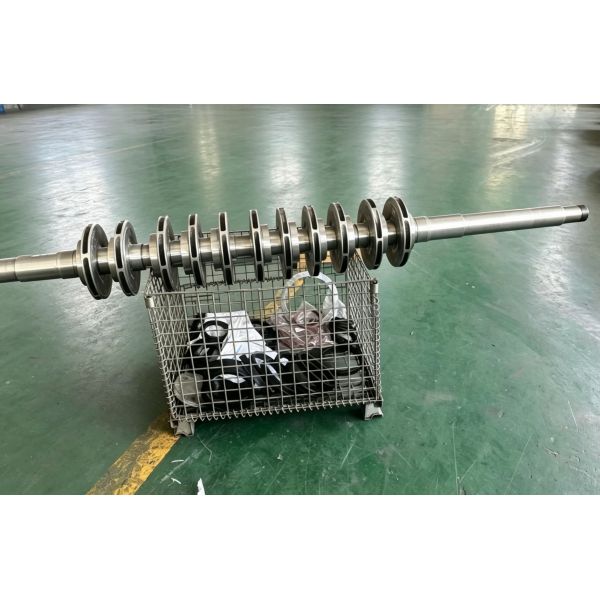

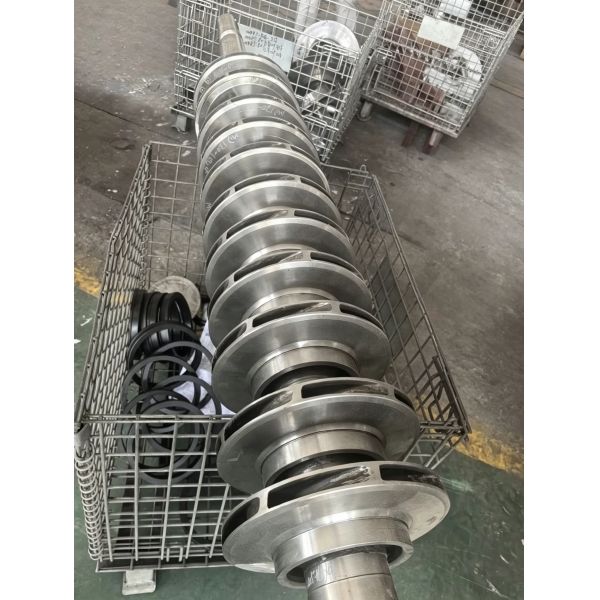

Our customized multistage pump rotor assembly serves as the core rotating unit of horizontal & vertical multistage centrifugal pumps, fully engineered and manufactured to match unique working conditions, medium properties, flow-head parameters and customer equipment standards. Integrating precision impellers, high-strength pump shaft, balance drum/disc, shaft sleeves, thrust collar and locking components, the whole rotor undergoes strict rotor dynamic calibration to deliver ultra-stable, low-vibration long-cycle operation for power, mining, desalination, petrochemical, boiler feed and water supply industries.

We provide one-stop OEM & ODM customization service covering hydraulic design, material selection, structural optimization and dynamic balancing, solving the main points of inefficient flow, severe abrasion, large axial thrust, short service life and frequent overhaul of standard rotors under harsh working conditions.

Customize impeller blade profile, stage quantity, flow channel size and diffuser matching according to target flow rate, head, medium viscosity and NPSH requirements. Optimized hydraulic model raises overall pump efficiency by 3%–12%, cutting long-term power consumption cost. Optional back-to-back opposed impeller layout for self-balancing axial thrust, reducing wear on balance components and bearing loads.

Select raw materials based on corrosive, abrasive, high-temperature media:

• Stainless steel: SS304, SS316L, duplex stainless steel for chemical, desalination & pure water
• Wear-resistant alloy: High-chrome cast iron for mine slurry, wastewater with solid particles
• Carbon steel/4140 alloy steel for boiler feed, high-temperature clean water

All flow parts adopt precision casting & CNC finishing for smooth inner surface, reducing cavitation and medium erosion.

Whole rotor assembly processed with high-speed dynamic balancing up to G2.5/G6.3 grade, effectively suppressing vibration and noise during high-speed operation, extending bearing and mechanical seal service life by over 50% compared with ordinary unbalanced rotors. Rigid shaft structure avoids deflection under high pressure and heavy load.

Diversified balance solutions: balance disc, balance drum, self-balancing opposed impeller structure. Customize shaft sleeve, sealing matching and coupling size to perfectly fit existing pump casings of DG, MD, D, MSD, GDL and other mainstream multistage pump models, supporting direct replacement of original rotors without casing modification.

Flow range

3.7–1350 m³/h

Single unit head

50–1800 m

Medium temperature

-20℃ ~ 180℃ (high-temperature resistant material available for over 180℃ working condition)

Max working pressure

≤500 bar

Speed customization

1450/2900 r/min or variable speed as required

• Customized one-to-one engineering solution, no universal standard limitation
• Low vibration, low axial thrust, stable continuous operation
• Anti-corrosion & anti-abrasion customized materials, long service life
• Energy-saving optimized hydraulics, lower operational cost
• Interchangeable with mainstream multistage pump brands & models
• Strict factory inspection: dimensional test, dynamic balance test, hydraulic simulation test
• CE certified, factory direct supply, professional after-sales technical support

• Thermal power plant boiler feed water pump
• Mining drainage & high-pressure water injection pump
• Seawater desalination RO high-pressure feed pump
• Petrochemical process fluid delivery
• Urban high-rise water supply & long-distance water transmission
• Industrial circulating hot water & high-pressure cleaning systems

We provide free pre-sales technical consultation, parameter matching, hydraulic simulation drawing and on-site installation guidance. Support small-batch trial order and mass customized production, with complete test reports and quality warranty for all rotor assemblies.
