GDT SMD150XM SMD Ceramic Gas Discharge Tube BA151N-D SPA150F 1812 150v
GDT SMD150XM SMD Ceramic Gas Discharge Tube BA151N-D SPA150F 1812 150v
GDT SMD150XM SMD Ceramic Gas Discharge Tube BA151N-D SPA150F 1812 150v
GDT SMD150XM SMD Ceramic Gas Discharge Tube BA151N-D SPA150F 1812 150v
Specifications
Brand Name :
Original
Model Number :
SMD150XM
MOQ :
10 pcs
Price :
Bargain
Payment Terms :
T/T
Supply Ability :
1kk/months
Delivery Time :
1-7 days
Packaging Details :
Carton
Name :
Gas Discharge Tubes
Sereis :
SMD
Sries :
DCLineVoltage
Quantity :
2000 pcs per plate
size :
4.5mm*3.2mm
DC Spark-over voltage :
75~600V
Description

GDT SMD150XM SMD ceramic gas discharge tube BA151N-D SPA150F SMD150XM 1812 150v

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.

The ceramic envelope and with nickel connectors allow for high loads and Ruilon offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.

The breakdown voltages of the devices have a wide range (up to 20% tolerance).

Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).

Features

•RoHS & HF compliant
• Size:4.5mm*3.2mm
• DC Spark-over voltage: 75~600V
• Stable breakdown voltage.
• High insulation resistance.
• High holdover voltage.
• Large absorbing transient current capability.
• Low Capacitance
• Micro-Gap Design

Recommended Applications

• Communication equipment
• CATV equipment
• Test equipment
• Data lines
• Power supplies
• Telecom SLIC protection
• Telecommunications

Electriacl Characteristics

Part Number Maximum Capacitance 1MHz (pF)
SMD70XM 0.5
SMD75XM 0.5
SMD90XM 0.5
SMD120XM 0.5
SMD150XM 0.5
SMD200XM 0.5
SMD230XM 0.5
SMD300XM 0.5
SMD350XM 0.5
SMD400XM 0.5
SMD420XM 0.5
SMD470XM 0.5
SMD500XM 0.5
SMD600XM 0.5

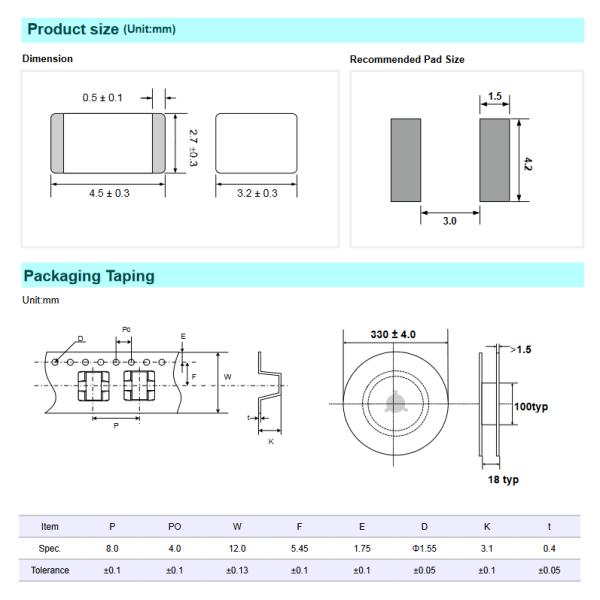

Product Drawing (Unit:mm)

GDT SMD150XM SMD Ceramic Gas Discharge Tube BA151N-D SPA150F 1812 150v
