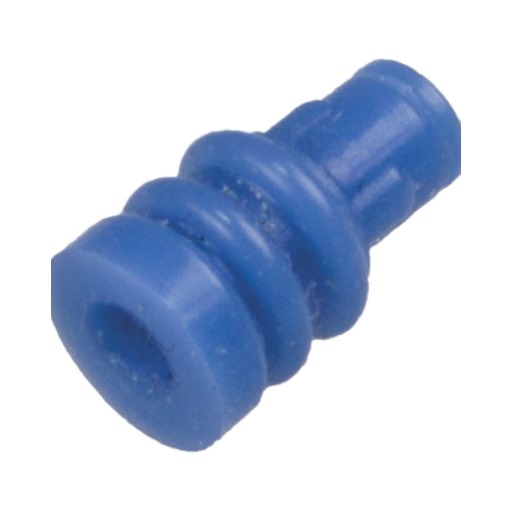

JAE Electronics MX44000XP2
JAE Electronics MX44000XP2
Specifications
MOQ :
2000
Description :
Rectangular Connector Accessories RoHS
Stock :
200000
Model Number :
MX44000XP2
Packaging Details :
-
Brand Name :
MX44000XP2
Delivery Time :
14-16 weeks
Description

Product Overview

This product line offers a range of connector solutions designed for various applications including board-to-cable and cable-to-cable configurations. Key features include mechanical lock systems, secondary lock mechanisms for terminal retention, simplified crimp termination, and waterproof designs. Some series offer features like shorting contacts to prevent static discharge and retainers to detect incomplete insertion.

Product Attributes

  • Brand: JAE Electronics
  • Copyright: 2012 JAE Electronics, Inc.
  • Website: http://www.jae-connectors.com

Technical Specifications

SeriesTypeApplicationOperating TemperatureCurrent RatingPin CountWire SizePitchKey Features
IL-AG5 SeriesBoard Mounting ReceptacleBoard to Cable-40 ~ +85 CSignal: 2.2A, Power: 5.7A70, 98, 104, 135Signal: AWG #22-20, Power: AWG #22-162.2mmSingle contact waterproof. Compact size. Improved vibration resistance. Secondary lock mechanism.
MX19Cable to Cable/ Board to Cable-40 ~ +85 CSignal: 2.2A, Power: 5.7A31, 34, 35Signal: AVS, AVSS, AVX 0.3 to 0.5mm, Power: AVS, AVSS AVX 0.3 to 1.25mm2.2mmMechanical lock system with audible click. Socket side contact designed with secondary lock. Simplified crimp type termination.
MX23ACable to Cable-40 ~ +105 C4A2, 4AVSS 0.5, AVSS 0.5F, AVSSX 0.5f, TVSSX 0.5f2.5mmMechanical complete mating method. Spring separates connector if not correctly mated. Shorting contact eliminates static discharge. Retainer detects incomplete insertion.
MX31Board to Cable-40 ~ +125 C3A3,5,7,12,16,20, 24,28,32,36,40AWG #22-20, AWG #28 Twin Ax, AWG #202.2mmWaterproof. Low profile. Available in reverse mount type. Retainer detects incomplete insertion of socket contact.
MX34Cable to Cable-40 ~ +105 C3A4AVSS 0.5, AVSS 0.5F, AVSSX 0.5f, TVSSX 0.5f2.2mmMechanical complete mating method. Spring separates connector if not correctly mated. Shorting contact eliminates static discharge. Retainer detects incomplete insertion.
MX36Cable to Cable-40 ~ +105 C3A4AVSS 0.5, AVSS 0.5F, AVSSX 0.5f, TVSSX 0.5f2.2mmMechanical complete mating method. Spring separates connector if not correctly mated. Shorting contact eliminates static discharge. Retainer detects incomplete insertion.
MX37Board to Cable-40 ~ +125 C3A12, 18, 26, 34, 36,40AVSS, AVS: 0.5 to 1.25mm2.5mmWaterproof. Low profile. Available in reverse mount type. Retainer detects incomplete insertion of socket contact.
MX39/MX45Cable to Cable/ Board to Cable-40 ~ +85 C5A4AVSS: 0.3, 0.5mm2.5mmUSB 2.0 compatible. Sold as a complete harness with USB standard receptacle. Lightweight. Mating and unmating force less than 80N. Closed box socket contact increases mechanical strength. Preset retainer allows easy wire harness assembly.
MX44Board to Cable-40 ~ +85 C3A4AVSS: 0.5mm2.5mmWaterproof. Mechanical lock system. Grommet seal. Terminals have low insertion force and stress dispersion. Rear cover protects the grommet from damage.
