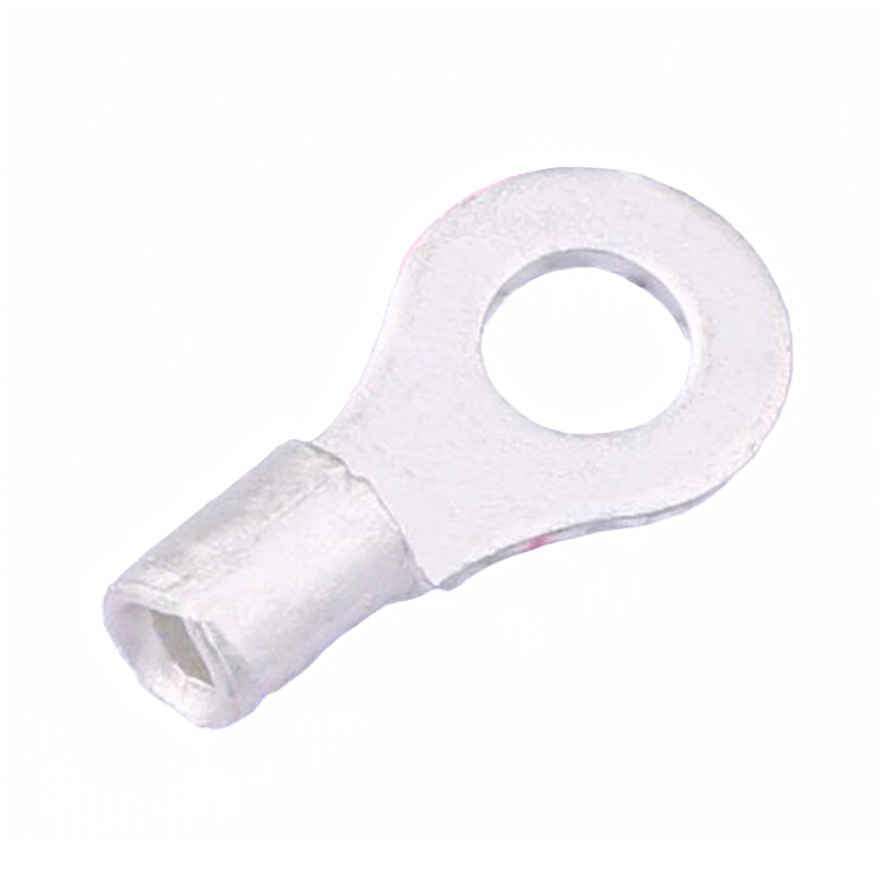

JIDC RNB2-4L
JIDC RNB2-4L
Specifications
Model Number :
RNB2-4L
Tail Type :
Through type
MOQ :
1
Delivery Time :
4-6 working days
Tail Diameter :
2.3mm
Head Type :
Circular ring
Overall Length :
16.5mm
Description :
Ring Connectors RoHS
Head Width :
8.5mm
Jacket Type :
Non-Insulated
Packaging Details :
-
Brand Name :
RNB2-4L
Stock :
234
Diameter of Bolt Mouth :
4.3mm
Wire Gauge - SQMM :
1.5~2.5
Jacket Color :
No
Description

Product Overview

This product features a series of non-insulated ring terminals designed for electrical connections. These terminals are available in various sizes and configurations, including 90-degree angled options, to suit different stud sizes and applications. They are suitable for wire cross-sections ranging from 2.5mm to 6mm (A.W.G. 14-10) and can handle maximum currents of up to 48A. The terminals are made from copper and are designed for reliable electrical conductivity.

Product Attributes

  • Brand: JiDe Precision Electronics
  • Origin: Guangdong, China
  • Material: Copper

Technical Specifications

ITEM NO.STUD SIZE (Metric/American)d2 (mm)L (mm)E (mm)D (mm)Wire Section (mm)Wire Section (A.W.G.)Max Current (A)PCS/PACKDIMENSION (mm)EXPLANATION
RNB3.5-3-90D#4 / 3.23.716.08.08.02.5~414-1237100016.09.5
RNB3.5-3.5-90D#6 / 3.73.716.08.08.02.5~414-1237100016.09.5
RNB3.5-4-90D#8 / 4.34.316.08.08.02.5~414-1237100016.09.5
RNB3.5-4M-90D#8 / 4.34.316.08.08.02.5~414-1237100016.09.5
RNB3.5-5S-90D#10 / 5.35.316.08.08.02.5~414-1237100016.09.5
RNB3.5-5M-90D#10 / 5.35.316.08.08.02.5~414-1237100016.09.5
RNB3.5-5L-90D#10 / 5.35.316.08.08.02.5~414-1237100016.09.5
RNB3.5-6-90D1/4 / 6.56.516.08.08.02.5~414-1237100016.09.5
RNB3.5-8-90D5/16 / 8.58.516.08.08.02.5~414-1237100016.09.5
RNB3.5-10-90D3/8 / 10.510.516.08.08.02.5~414-1237100016.09.5
RNB3.5-12-90D1/2 / 13.013.016.08.08.02.5~414-1237100016.09.5
RNBS.5-3-90D#4 / 3.23.717.09.59.54~612-1048100025.013.8
RNBS.5-3.5-90D#6 / 3.73.717.09.59.54~612-1048100025.013.8
RNBS.5-4S-90D#8 / 4.34.317.09.59.54~612-1048100025.013.8
RNB5.5-4L-90D#8 / 4.34.317.09.59.54~612-1048100025.013.8
RNBS.5-5-90D#10 / 5.35.317.09.59.54~612-1048100025.013.8
RNBS.5-6-90D1/4 / 6.56.517.09.59.54~612-1048100025.013.8
RNBS 5-6M-90D1/4 / 6.56.517.09.59.54~612-1048100025.013.8
RNBS.5-8-90D5/16 / 8.58.517.09.59.54~612-1048100025.013.8
RNBS.5-10-90D3/8 / 10.510.517.09.59.54~612-1048100025.013.8
RNBS.5-12-90D1/2 / 13.013.017.09.59.54~612-1048100025.013.8
RNBS.5-14-90D9/16 / 15.015.017.09.59.54~612-104850045.219.2
RNBS.5-16-90D5/8 / 17.017.017.09.59.54~612-104850045.219.2
RNBS.5-18-90D11/16 / 19.019.017.09.59.54~612-104850045.219.2
RNB5.5-20-90D3/4 / 21.021.017.09.59.54~612-104850045.219.2
