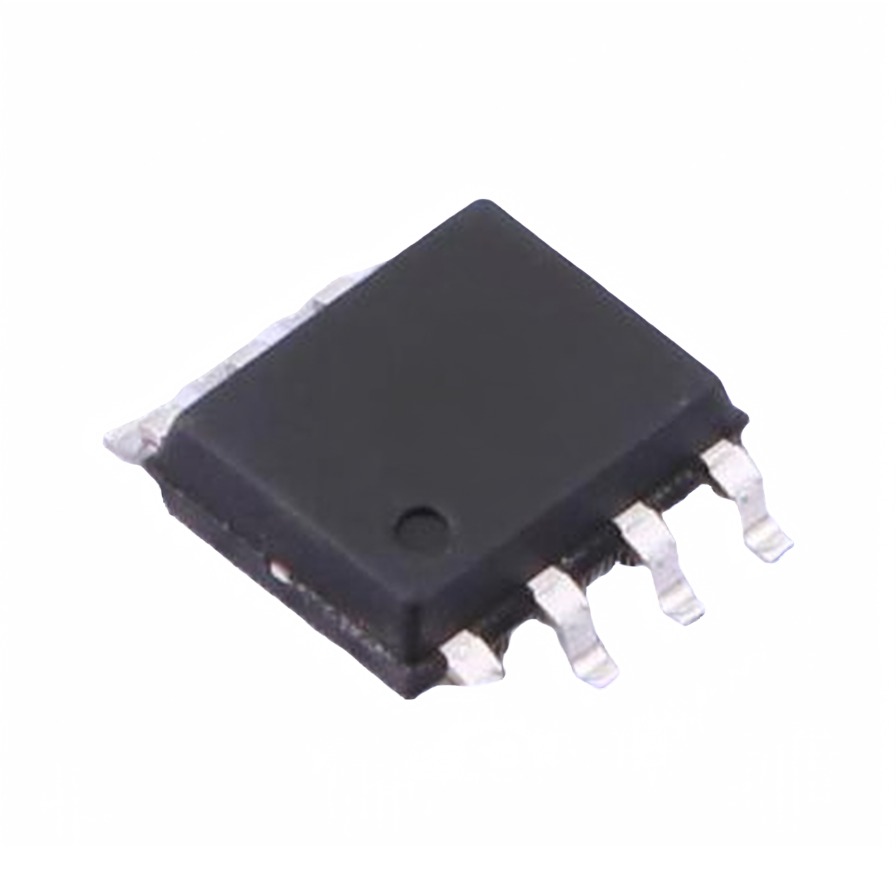

HL 1208
HL 1208
Specifications
Packaging Details :
SOP-8
Brand Name :
1208
Peak Current :
3A
RDS(on) :
500mΩ
Description :
1.8V~8.5V SOP-8 Motor Drivers, Controllers RoHS
Model Number :
1208
Voltage - Supply :
1.8V~8.5V
Stock :
100000
Quiescent Current :
100nA
Delivery Time :
12-40 weeks
Number of H-bridges :
1
Operating Temperature :
-20℃~+60℃
MOQ :
500
Description

Product Overview

The 1208 is a single-channel DC motor driver with an integrated H-bridge circuit. It supports four motor control functions: positive rotation, reverse rotation, brake, and standby, controlled by two input logic terminals. It is primarily designed for consumer motor applications such as toys, electric toothbrushes, and intelligent locks.

Key Features:

  • Wide operation voltage: VDD = 1.8V to 8.5V (2 to 5 AA or AAA batteries)
  • Low standby current: 0.1uA (typical) @ VDD=5V
  • Over-temperature protection (OTSD)
  • Low on-resistance: ~ 0.5ohm (SOP8)
  • ESD protection: 8KV (HBM)
Product Name
1208 Single-channel DC motor driver
Part Number
60N02 / 20N02
MOSFET Type
N-Ch Fast Switching MOSFETs
Voltage Rating
20V
Package Type
8-PIN SOP 150Mil
SymbolParameterTest ConditionMin.Typ.Max.Units
VDDOperation voltage1.8-8.5V
I SBStandby currentStandby mode INA=INB=0 > 10ms-0.1-uA
R onOutput on resistanceI =1000mA-0.5-
VihInput logic high voltage1.8--V
VilInput logic low voltage--0.5V
OTSDThermal shutdown temperatureVDD=5V-150-
OTSDThermal shutdown hysteresis-70-
SYMBOLConditionMAXUnit
VDDPower supply8.5V
V Logic input voltageVSS-0.3~VDD+0.3V
PdPower dissipation(S08C)1.2W
IpeakOutput peak current (S08C)3*A
IconContinuous output current1.4A
TopOperation temperature-20~60*
PINSYMBOLI/ODESCRIPTION
1NCNot Connected
2INAISignal input A
3INBISignal input B
4VDD---Power
5OUTBOOutput B
6GND---Ground
7GND---Ground
8OUTAOOutput A
