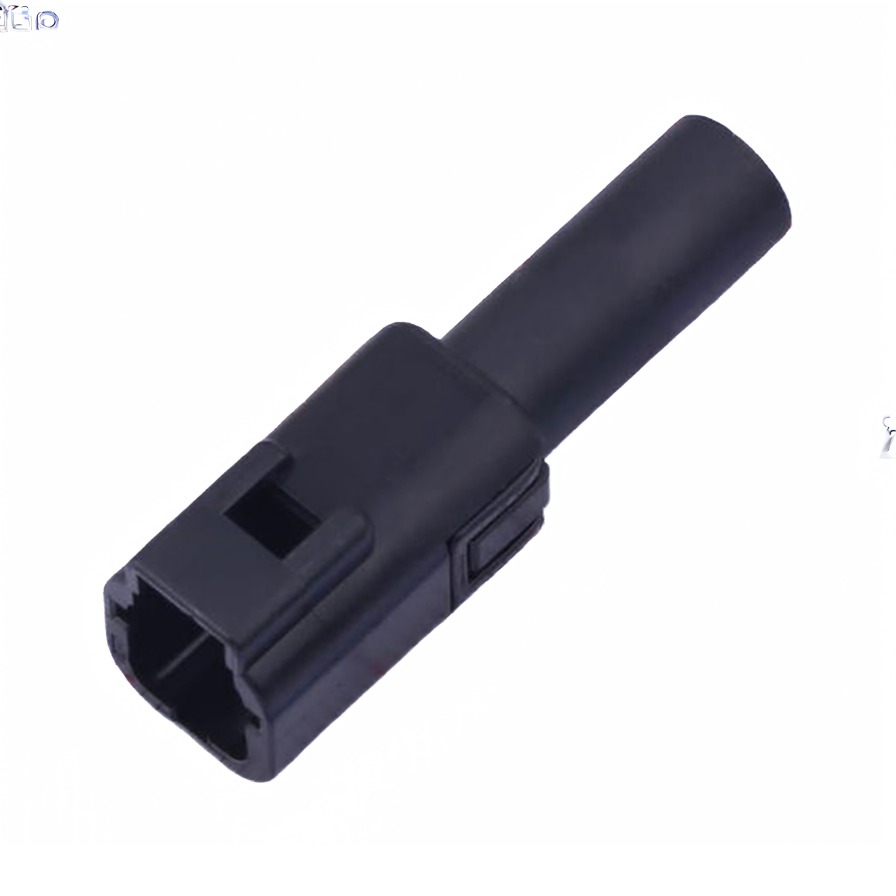

JST 01P-WPKH-KN
JST 01P-WPKH-KN
Specifications
Brand Name :
JST
Description :
1x1P 1 Non-Latching Housings, Boots RoHS
MOQ :
2400
Stock :
24000
Holes Structure :
1x1P
Number of Rows :
1
Color :
Black
Packaging Details :
-
working temperature :
-40℃~+105℃
With Locker :
Non-Latching
Delivery Time :
16-18 weeks
With Wings :
Without Fins
Model Number :
01P-WPKH-KN
Description

WPK CONNECTOR

Disconnectable Crimp style Wire-to-wire connectors (waterproof type). This is wire-to-wire connector suitable for use in places where waterproof is especially required. It is used for power connecting but compact, and has waterproof of grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529) and excels in durability.

Key Features:

  • Waterproof (ingress protection)
  • Male housing has a built-in seal ring
  • Compact design
  • Inner-housing lock
  • High durability and High reliability

Brand

JST

Waterproof Grade

JIS C 0920 Grade 7 (IPX7 of IEC 60529)

Certifications

RoHS2 compliance
Model No. No. of circuits Material and Finish Q'ty/ reel Q'ty/ bag Q'ty/ box Insulation O.D. (mm) Applicable wire (mm) Rubber inner diameter (mm)
SWPKP-21T-0.6 - Copper alloy, tin-plated (reflow treatment) 3,000 - - 1.61.9 0.50.85 -
SWPKR-21T-0.6 - Copper alloy, tin-plated (reflow treatment) 3,000 - - 1.61.9 0.50.85 -
MKS-L - - - - - - - -
AP-K2N - - - - - - - -
MK/SWPKP/R-21-06 - - - - - - - -
APLMK SWPKP/R21-06 - - - - - - - -
WPKS-1.3N - NBR, brown - 1,500 - 1.61.9 - 1.3
01P-WPKH-KN 1 Housing: PBT, black; Seal ring: NBR, brown - - 100 - - -
WPKR-01H-K 1 PBT, black - - 1,000 - - -
Specification Value
Current rating 7 A AC/DC (0.85 mm)
Voltage rating 12 V AC/DC
Temperature range -40 to +105 (including temperature rise in applying electrical current)
Contact resistance (Initial value) 5 m max.
Contact resistance (After environmental tests) 10 m max.
Insulation resistance 100 M min.
Withstanding voltage 1,000 VAC/minute
