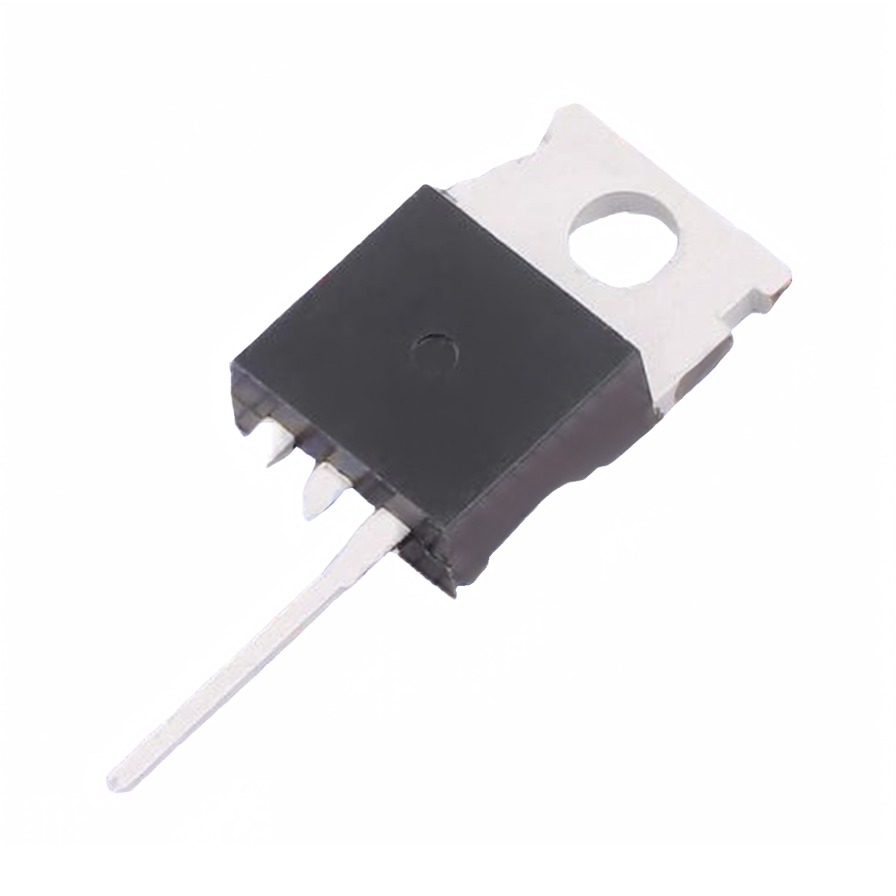

BLUE ROCKET 7805
BLUE ROCKET 7805
Specifications
Output Current :
1.5A
Output Configuration :
Positive
standby current :
8mA
Number of Outputs :
1
Packaging Details :
TO-220
Brand Name :
BLUE ROCKET
Model Number :
7805
Description :
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A TO-220
Output Type :
Fixed
Output Voltage :
4.75V~5.25V
MOQ :
100
Operating Voltage :
20V
Stock :
100000
Delivery Time :
12-40 weeks
Description

Product Overview

Function: Voltage Regulator

Description: 3-Terminal regulators, output current up to 1.5A, internal thermal overload protection and short-circuit limiting. Voltage Regulator in a TO-220 Plastic Package.

Applications: Voltage Regulator.

Brand

FSB

Model

7805

Package Type

TO-220 Plastic Package

Origin

China

Parameter Symbol Test Conditions Min Typ Max Unit
Output Voltage VO Tj=25 4.8 5.0 5.2 V
Output Voltage VO Vi=7V-20V, Io=5mA-1A, Po15W, Tj=25 4.75 5.0 5.25 V
Load Regulation VLoad Tj=25, Io=5mA-1.5A 100 mV
Load Regulation VLoad Tj=25, Io=250mA-750mA 50 mV
Line Regulation VLine Tj=25, Vi=7V-25V 3.0 100 mV
Line Regulation VLine Tj=25, Vi=8V-12V 1.0 50 mV
Quiescent Current Iq Tj=25 8.0 mA
Quiescent Current Change Iq Tj=25, Vi=7V-25V, Io=5mA-1A 0.5 mA
Output Voltage Drift Vo/T Io=5mA -1.1 mV/
Output Noise Voltage eN B=10Hz-100KHz, Tj=25 40 V/Vo
Supply Voltage Rejection SVR Vi=8V-18V, f=120Hz 62 dB
Dropout Voltage Vd Io=1A, Tj=25 2.0 V
Output Resistance Ro f=1KHz 17 m
Short Circuit Current Isc Vi=35V, Tj=25 0.75 A
Short Circuit Peak Current Iscp Tj=25 2.2 A
Parameter Symbol Rating Unit
Input voltage VI 35 V
Thermal Resistance Junction-ambient RJA 62.5 /W
Thermal Resistance Junction-case RJC 5.0 /W
Junction Temperature TJ 150
Operating Junction Temperature Range TOPR 0125
Storage temperature range Tstg -65150

Marking Instructions

BR: Company Code.
CW7805: Product Type.
****: Lot No. Code, code change with Lot No.

Temperature Profile for Dip Soldering (Pb-Free)

1. Preheating: 25~150, Time: 60~90sec.
2. Peak Temp.: 2555, Duration: 50.5sec.
3. Cooling Speed: 2~10/sec.

Resistance to Soldering Heat Test Conditions

Temp: 2705, Time: 101 sec.

Package Type Units/Bag Bags/Inner Box Units/Inner Box Inner Boxes/Outer Box Units/Outer Box Dimension (unit: mm) Package Size (Inner Box) Package Size (Outer Box)
TO-220/F (BULK) 200 10 2,000 5 10,000 135190 237172102 560245195
TO-220/F (TUBE) 50 20 1,000 5 5,000 53231.45.5 55516450 575290180
