Phoenix Contact 1416353
Phoenix Contact 1416353
Phoenix Contact 1416353
Phoenix Contact 1416353
Specifications
MOQ :
1
Delivery Time :
16-30 weeks
Model Number :
1416353
Description :
Heavy Duty Connector Assemblies RoHS
Stock :
100
Packaging Details :
-
Brand Name :
1416353
Description

Product Overview

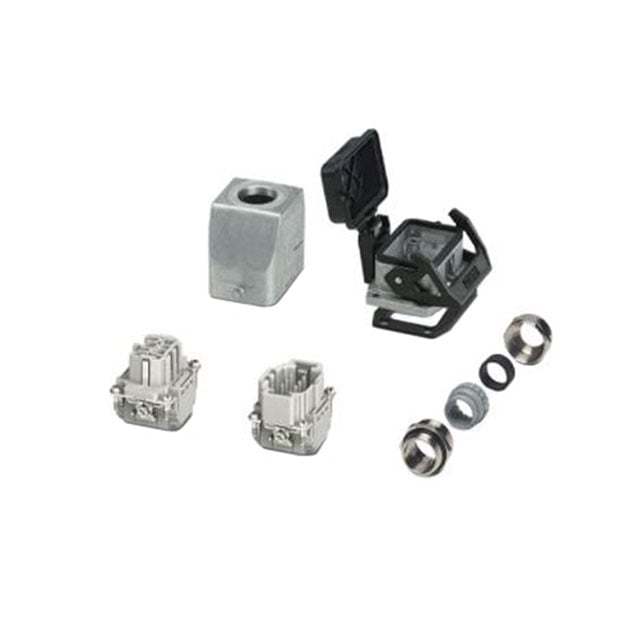

This connector set, part of the HEAVYCON series, is designed for robust industrial applications. It features a B6 type housing made from salt-water-resistant die-cast aluminum, ensuring durability in harsh environments. The set includes a 6+PE position contact insert with a push-in connection method for quick and reliable wiring, suitable for cable cross-sections from AWG 26 to 14. The lateral cable exit and M20 connection thread facilitate straightforward integration into existing systems. This connector set offers high protection ratings (IP66, IP69K, IP67, IP54) and is rated for 500 V and 6 kV surge voltage, making it ideal for demanding electrical connections.

Product Attributes

  • Brand: PHOENIX CONTACT
  • Product Line: HEAVYCON
  • Series: B6
  • Material: Die-cast aluminum, salt water resistant
  • Connection Method: Push-in connection
  • Cable Exit: Lateral
  • Country of Origin: China
  • Certifications: EAC, GL

Technical Specifications

Specification Value
Product Number 1416353
Number of Positions 6+PE
Housing Material Die-cast aluminum, salt water resistant
Connection Method Push-in connection
Connection Cross Section AWG 26-14
Cable Exit Lateral
Weight per Piece (excluding packing) 400.0 g
Custom Tariff Number 85366990
Degree of Protection (Housing) IP66, IP69K (ISO 20653:2013-02), IP67, IP54 (with closed protective cover)
Rated Voltage (III/3) 500 V
Rated Surge Voltage 6 kV
Rated Current 16 A
Flammability Rating (UL 94) V0
Housing Type B6
Housing Features Single locking latch, plastic protective cover, flat gasket, conductive profile gasket
Cable Gland Thread M20
Sleeve Housing Height 52 mm
Included Components
  • Contact insert - HC-B 06-I-PT-F - 1407727
  • Contact insert - HC-B 06-I-PT-M - 1407728
  • Cable gland - G-INS-M20-S68N-NNES-S - 1411163
  • Housing - HC-STA-B06-BWSC-ELC-AL - 1411319
  • Housing - HC-STA-B06-HLFS-1STM20-EL-AL - 1412570
