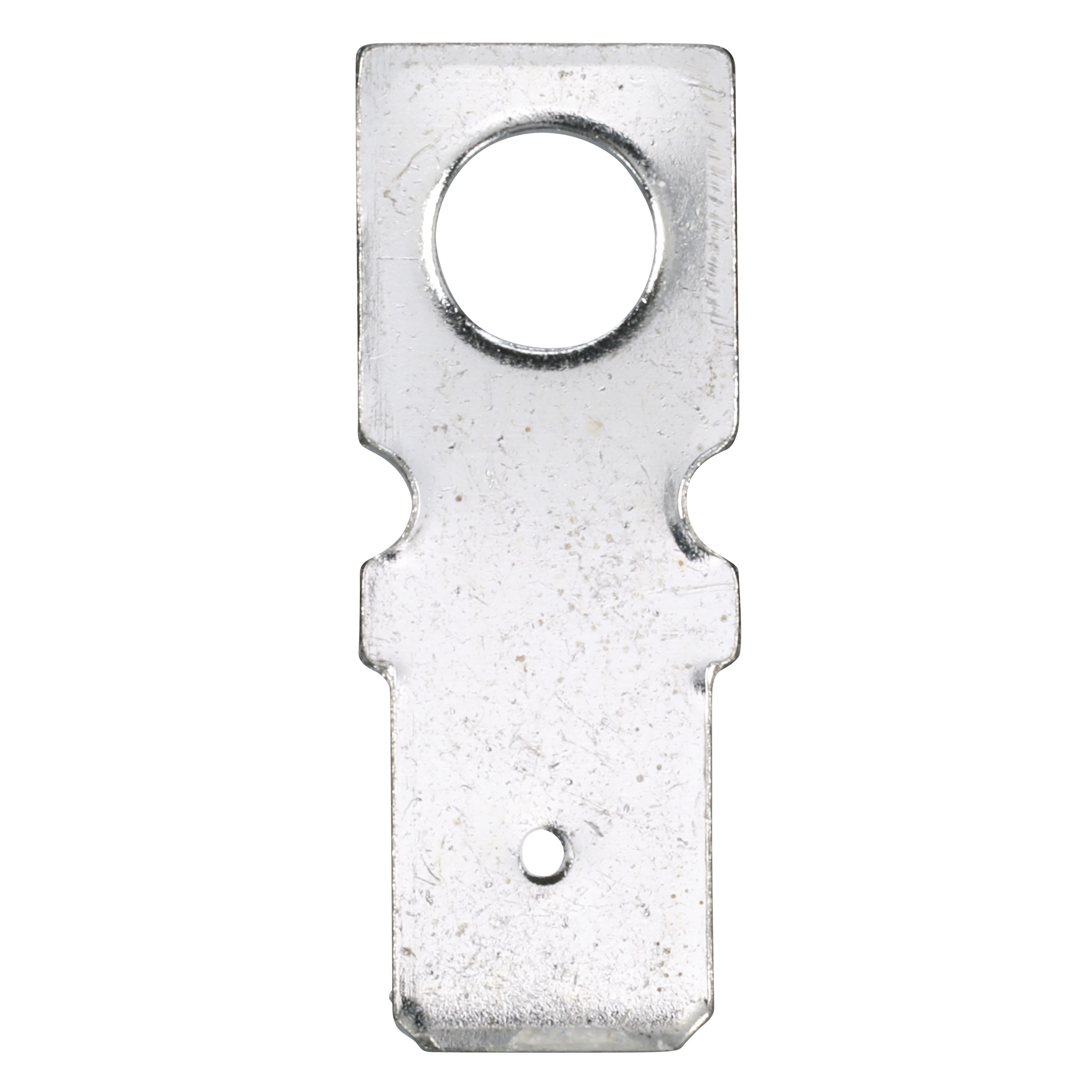

3M MA250DMFMX-A-BOTTLE
3M MA250DMFMX-A-BOTTLE
Specifications
Stock :
4
Delivery Time :
10-15 working days
Packaging Details :
-
Model Number :
MA250DMFMX-A-BOTTLE
Brand Name :
MA250DMFMX-A-BOTTLE
MOQ :
1
Description :
Terminal Adapters RoHS
Description

Product Overview

The 3M Scotchlok MA250DMFM-A and MA250DMMF Adapter Disconnects are non-insulated male-female adapters designed to electrically and mechanically connect to one or more separable connectors in a reusable manner. These adapters facilitate connections between male and female quick-disconnect tabs, ensuring a secure and reliable electrical interface.

Product Attributes

  • Brand: 3M Scotchlok
  • Type: Adapter Disconnect, Male-Female
  • Insulation: Non-Insulated
  • Material: Brass
  • Plating (MA250DMFM): Tin
  • Plating (MA250DMMF): None
  • Agency Approvals: Self Certification, UL Listed (UL Standard No. UL-310, 3M File No. E70512), CSA Certified (CSA Standard 22.2, No. 0,65, 3M File No LR22190)
  • Note: MA250DMFM-A* is not UL Listed or CSA Certified.

Technical Specifications

Product Number Mates with Width (W) x Thickness Length Maximum Operating Temp. Maximum Current
MA250DMFM-A* Female & Male 0.250" x 0.032" 0.70" 347F (175C) 30 Amps
MA250DMMF Female & Male 0.250" x 0.032" 0.76" 347F (175C) 30 Amps

Engineering Description: The Double Male-Female Adapter shall be 0.032 thick brass, having two 0.250 x 0.032 Male Quick-Disconnect Tabs joined to a single Female quick Disconnect, sized for gripping a 0.250 x 0.032 Male Tab. The Adapter Tabs shall conform to NEMA DC-2, 1976 dimensions. A suitable strain relief may be required to prevent accidental separation.
