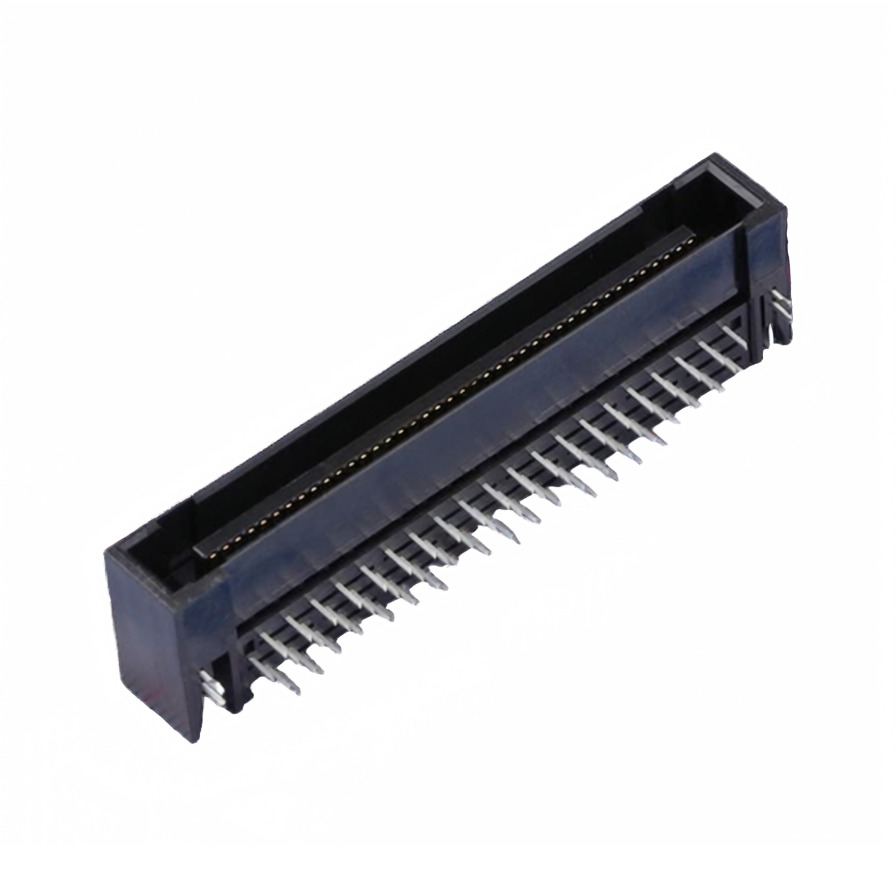

JAE Electronics TX25A-80P-LT-H1E
JAE Electronics TX25A-80P-LT-H1E
Specifications
Packaging Details :
Through Hole
Number of Pins :
80P
Model Number :
TX25A-80P-LT-H1E
Description :
1.27mm 2 80P Right Angle Through Hole Arrays, Edge Type, Mezzanine (Board to Board) RoHS
Mounting Type :
Right Angle
MOQ :
1
Brand Name :
TX25A-80P-LT-H1E
Stock :
90
Delivery Time :
1 working day
Pitch :
1.27mm
Number of Rows :
2
Contact Plating :
Gold
Description

Product Overview

The TX24A / 25A Series is a high-speed transmission board-to-board connector featuring a 1.27mm pitch. It offers improved electrical characteristics over the existing TX24 / 25 Series, supporting higher-speed transmission with high-speed signals arranged in the upper layer. Designed for robustness and ease of use, it includes a mating guide ideal for rack and panel mounting and a click feeling to ensure complete insertion. This connector is suitable for a wide range of applications including office automation, measurement instruments, and video equipment.

Product Attributes

  • Brand: JAE
  • Product Line: TX24A / 25A Series
  • RoHS Compliant: Yes
  • Origin: Japan Aviation Electronics Industry, Ltd.

Technical Specifications

Part NumberNo. of ContactsContact Resistance (max.)Dielectric Withstanding Voltage (A.C. r.m.s.)Rated CurrentInsulation Resistance (min.)Mating CyclesOperating Temperature
TX24A-80R-LT-H1E8040m (initial)500V for 1 minute (initial)1.0A per pin100M (initial)500 times-40 Deg. C to +85 Deg. C
TX25A-80P-LT-H1E8040m (initial)500V for 1 minute (initial)1.0A per pin100M (initial)500 times-40 Deg. C to +85 Deg. C
