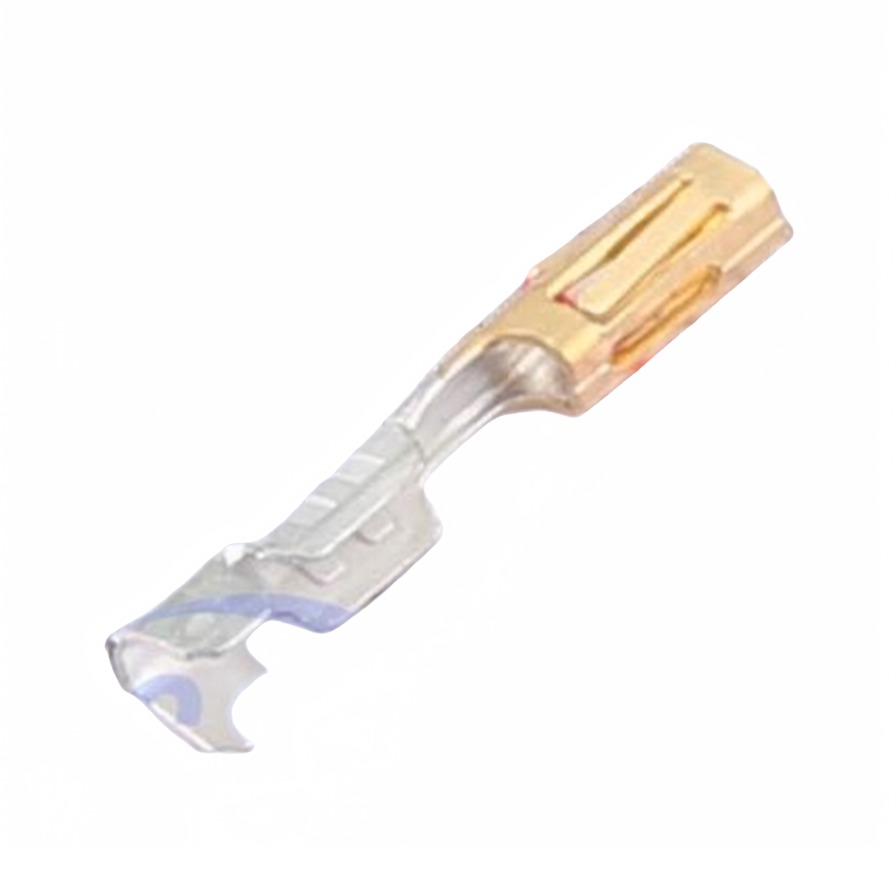

Samtec CC79L-2630-01-S
Samtec CC79L-2630-01-S
Specifications
Packaging Details :
-
Brand Name :
Samtec
Model Number :
CC79L-2630-01-S
Delivery Time :
7-14 working days
Insulation OD :
0.029mm~0.54mm
Wire Gauge - AWG :
26~30
Contact Plating :
Gold
Stock :
17489
Description :
Connector Terminal Gold Crimp
MOQ :
31
Description

Product Overview

This document details the CC79X-XXXX-XX-X series of contacts, designed for use with wire gauges from 20 to 30 AWG. Available in various plating options, these contacts are supplied on reels for automated processing. The product is manufactured by Samtec, Inc.

Product Attributes

  • Brand: Samtec, Inc.
  • Material: Phos Bronze
  • Wire Gauge Compatibility: 20-24 AWG, 26-30 AWG, 28-30 AWG (PTFE)
  • Supply Format: Reel (R)

Technical Specifications

Model/Option Description Value
CC79X-XXXX-XX-X Base Model N/A
LEAD STYLE Wire Gauge -2630 (26-30 AWG)
LEAD STYLE Wire Gauge -2024 (20-24 AWG)
LEAD STYLE Wire Gauge -2830 (28-30 AWG)
LEAD STYLE Insulation Type (PTFE)
PLATING Contact Plating -F: 3" GOLD ON CONTACT
PLATING Tail Plating BRIGHT ACID TIN ON TAIL
PLATING Contact Plating -L: 10" GOLD ON CONTACT
PLATING Tail Plating BRIGHT ACID TIN ON TAIL
PLATING Contact Plating -S: 30" GOLD ON CONTACT
PLATING Tail Plating BRIGHT ACID TIN ON TAIL
SUPPLIED Format -L: LOOSE
SUPPLIED Format -R: REEL
INSULATION THICKNESS Option -01
DIMENSION "A" .060
DIMENSION "B" .1250
DIMENSION "C" .075
DIMENSION "D" .016
DIMENSION "E" .090
DIMENSION "F" .190
DIMENSION "G" .002
DIMENSION "H" N/A
DIMENSION "J" .005
DIMENSION "K" .50
DIMENSION "L" N/A
DIMENSION "M" N/A
DIMENSION "N" MAX (TAB LENGTH) SEE TABLE 2, SHT 2
DIMENSION "P" MAX (VESTIGE ALLOWANCE) SEE TABLE 2, SHT 2
DIMENSION TYPICAL .1060
DIMENSION TYPICAL .150
DIMENSION TYPICAL .0620
DIMENSION TYPICAL .1198
DIMENSION TYPICAL .130
DIMENSION TYPICAL .020
DIMENSION TYPICAL .435.004
DIMENSION TYPICAL .155
DIMENSION TYPICAL .064
MATERIAL Contact Material PHOS BRONZE
MATERIAL Contact Thickness .0080
REEL SPECIFICATIONS Qty Per Reel 12,000 15 PCS
REEL SPECIFICATIONS Max Splices Per Reel 2
REEL SPECIFICATIONS Allowable Interleaf Splices Per Reel 3
