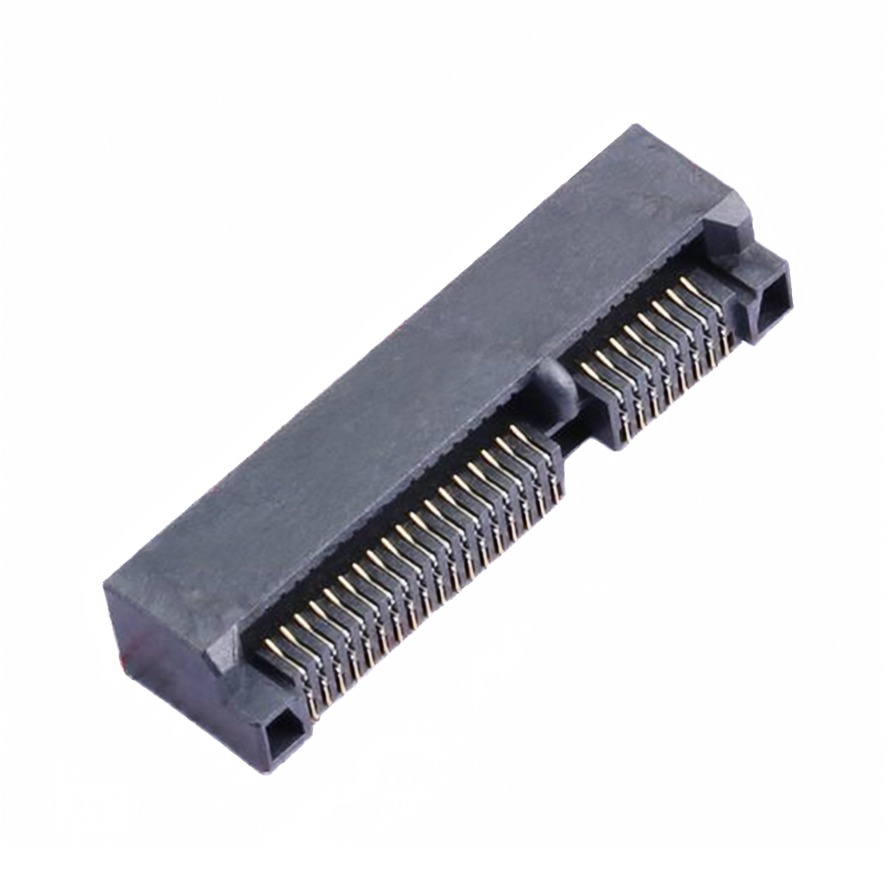

SOFNG PCIE-52P56H
SOFNG PCIE-52P56H
Specifications
Stock :
4500
Operating Temperature :
-40℃~+85℃
Model Number :
PCIE-52P56H
Height Above Board :
5.6mm
Number of Pins :
52P
Mounting Type :
Surface Mount, Right Angle
Connector Type :
-;mPCI-E
Packaging Details :
SMD,P=0.8mm,Surface Mount,Right Angle
Delivery Time :
5-9 working days
Description :
52 Position Connector mPCI-E 0.8mm Surface Mount, Right Angle
Brand Name :
SOFNG
Number of Data Pins :
36P
MOQ :
50
Supplementary Features :
Pillar
Description

Product Overview

Function: MINI-PCI EXPRESS / MINI-PCI E Connectors

Usage: Designed for fitting into MINI-PCI EXPRESS / MINI-PCI E slots.

Advantages: RoHS Compliant, REACH Compliant, Durable Performance.

Application Scenarios: Used in applications requiring expansion cards for MINI-PCI Express interfaces.

Brand

Albetter product

Certifications

RoHS Compliant, REACH

Pitch

0.80MM

Material Declaration

HOUSING: LCP UL 94V-0, COLOR:BLACK; CONTACTS: Phosphor Bronze, 0.25 m Ni PLATED OVERALL, 0.25 m Au PLATED CONTACT AREA, GOLD FLASH ON SOLDER AREA; HOLDDOWN: Phosphor Bronze, 0.25 m Ni PLATED OVERALL

Item No. Circuits Dimensions (L x W) Contact Rating (Per Pin) Voltage Rating Initial Contact Resistance Insulation Resistance Withstand Voltage Durability (No Load) Durability (Rated Load) Storage Temp. Operating Temp. Material (Housing) Material (Contacts) Material (Holddown) Plating (Contacts - Overall) Plating (Contacts - Contact Area) Plating (Contacts - Solder Area) Plating (Holddown - Overall)
PCIE-52P40H 52 29.9mm x 8.2mm 0.5A 50V DC 50m max. 500M min. 300V AC for 1 min. 200 Cycles 100 Cycles -40C ~ +85C -40C ~ +85C LCP UL 94V-0, BLACK Phosphor Bronze Phosphor Bronze 0.25 m Ni 0.25 m Au GOLD FLASH 0.25 m Ni
PCIE-52P52H 52 29.9mm x 8.2mm 0.5A 50V DC 50m max. 500M min. 300V AC for 1 min. 200 Cycles 100 Cycles -40C ~ +85C -40C ~ +85C LCP UL 94V-0, BLACK Phosphor Bronze Phosphor Bronze 0.25 m Ni 0.25 m Au GOLD FLASH 0.25 m Ni
PCIE-52P56H 52 29.9mm x 8.2mm 0.5A 50V DC 50m max. 500M min. 300V AC for 1 min. 200 Cycles 100 Cycles -40C ~ +85C -40C ~ +85C LCP UL 94V-0, BLACK Phosphor Bronze Phosphor Bronze 0.25 m Ni 0.25 m Au GOLD FLASH 0.25 m Ni
PCIE-52P70H 52 29.9mm x 8.2mm 0.5A 50V DC 50m max. 500M min. 300V AC for 1 min. 200 Cycles 100 Cycles -40C ~ +85C -40C ~ +85C LCP UL 94V-0, BLACK Phosphor Bronze Phosphor Bronze 0.25 m Ni 0.25 m Au GOLD FLASH 0.25 m Ni
PCIE-52P80H 52 29.9mm x 8.2mm 0.5A 50V DC 50m max. 500M min. 300V AC for 1 min. 200 Cycles 100 Cycles -40C ~ +85C -40C ~ +85C LCP UL 94V-0, BLACK Phosphor Bronze Phosphor Bronze 0.25 m Ni 0.25 m Au GOLD FLASH 0.25 m Ni
Packing Type P/N Qty/Reel
Reel PCIE-52P40H 650PCS
Reel PCIE-52P52H 550PCS
Reel PCIE-52P56H 500PCS
Reel PCIE-52P70H 400PCS
Reel PCIE-52P80H 400PCS
