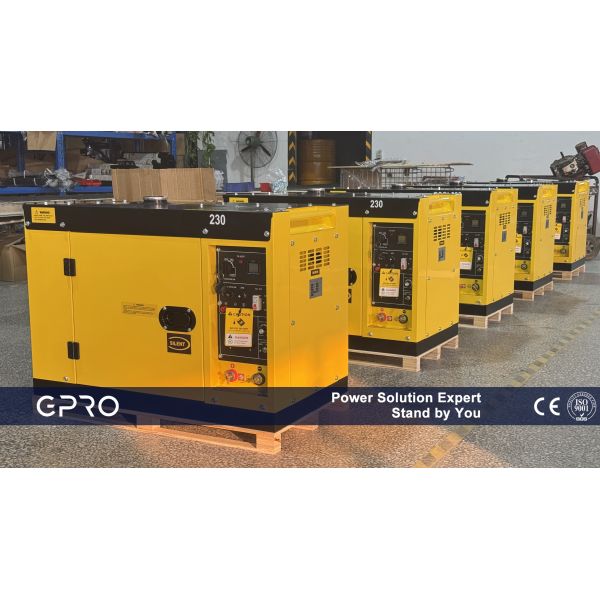

Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function
Specifications
Brand Name :
GPRO
Model Number :
GD8500ESW
Certification :
ISO, CE Certification
Place of Origin :
Jiangsu of China
MOQ :
5 SET
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
600 Set / Month
Delivery Time :
15 - 20 working day
Packaging Details :
Cartons
Output Power :
2kw to 2.5 kw
Frequency :
50/60HZ
Voltage :
220v - 440v optional
Engine :
192FE
Alternator :
100% copper
Cooling system :
Air cooled
Genset type :
Silent type
Phase :
Single / Three Phase
Description

Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function

Model GD8500ESW
Genset Rated Frequency(Hz) 50 60
Rated Power(kw) 2.0 2.5
Rated Voltage(V) 220 120/240
Power Factor 1
Phase Single Phase
Welder Voltage Without Load(v) 65-70
Running Voltagre(V) 25-30
Rated soldering DC Current(A) >230
Current Adjusting Range(A) 0-230
Electrode Diameter(mm) 1.6-4.0
Engine Engine Type 192FAE
Engine speed(rpm) 3000 3600
Structure type Direct Injection,single cylinder,four stroke,air cooled
Starting System Electrical Start
Genset Fuel Tank Capacity(L) 13.5
Continuous Running Time(h) 10
Noise(7m)dB(A) 72
N.W/G.W(kgs) 175/185
Package(L*W*H)(mm) 950x560x750

Diesel Welding Generator 220A 50hz 60hz Electrical Diesel Generator With Welder Function

Specifications:

Welder generator current capacity 220A , Generator power 2.5KW

Dimension 950x560x750mm Net Weight 175KGS

Quantity for 20 foot container 72 sets

Quantity for 40 foot container 114 sets

100% copper alternator

CE and ISO certification

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.

Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

If have any questions, please contact us. Your inquiry would be appreciated.
