Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model
Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model
Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model
Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model
Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model
Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model
Specifications
MCCB :
4 Pole
Frequency :
50HZ / 60HZ
Engine :
DCEC
Alternator :
Stafmord/Marathon/Meccalte/GPRO
Controller :
Smartgen/ DeepSea/ Comap
Current :
86.6A
Warranty :
1 year or 1000 hours
Rated power :
48kw / 60kva
Fuel tank :
at least 8 hours continuous working
Brand Name :
GPRO
Model Number :
GP66DCS
Certification :
ISO/CE
Place of Origin :
Wuxi, China
MOQ :
1 set
Price :
Contact us for the best quotation
Supply Ability :
300 sets / Month
Delivery Time :
25 days
Packaging Details :
poly wooden case or plastic poly
Voltage :
220/380V, 230V/400V, 240V/415V
Description

Prime 60kva Silent Generator Set with Electrical DCEC Engine 4BTA3.9-G2 Model

diesel generator specification:

1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP66DCS
1.2 Prime at 50HZ, 40℃ ambient 48KW 60KVA
1.3 Standby at 50HZ, 40℃ ambient 53KW 66KVA
1.4 Rated Gen-set output 230/400V 220/380V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2650×1050×1650mm
1.7 Weight 1726kg
1.8 Fuel consumption 100% prime load 10.7L/h
1.9 Total heat radiated to ambient 16KW
1.10 Noise Level at 7m 68dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand DCEC
2.2 Engine Model 4BTA3.9-G2
2.3 Governor/Class Electrical
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 102×120 mm
2.11 Compression ratio 16.5:1
2.12 Displacement 3.9 L
2.13 Engine Prime Power at 1500rpm 50KWm
2.14 Engine Standby Power at 1500rpm 55KWm
2.17 Lubrication oil capacity 11.0L
2.18 Coolant capacity - radiator and engine (40℃) 28L
2.19 Fuel type #0 Diesel (Natural temperature)
2.2 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.21 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model G224E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5％
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 86.6A
3.12 Efficiency 0.888
3.13 Insulation class H
3.14 Protection class IP23

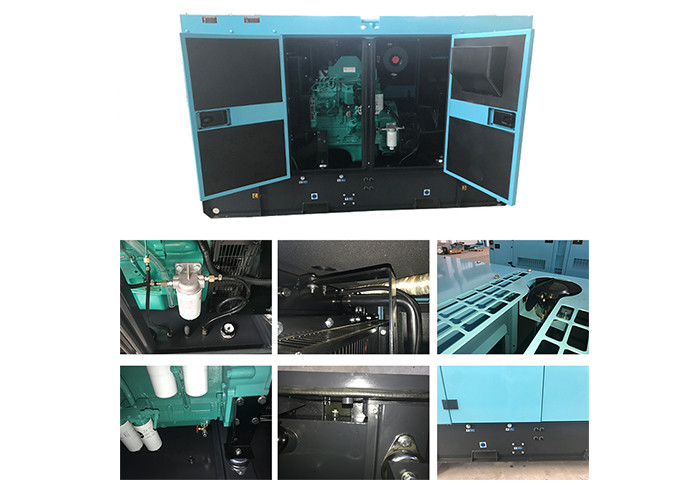

The details of DCEC diesel generator set:

Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model

DCEC engines: All brand new, original DCEC.

Prime 60kva Silent Generator Set With Electrical DCEC Engine 4BTA3.9- G2 Model

Description:

1. Power Range: 20kw - 400kw for DCEC

2. Engine: Original DCEC engine

3. Alternator: Genuine Stamford, Marathon, Meccalte, etc

4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5. ATS is optional

6. Type: Open type, Soundproof type, Trailer type, Container type, etc

7. Color: Can be customized

Applications:

1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6. Standby power or main power, indoor or outdoor using.

Competitive Advantage:

1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.
