Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
Specifications
Brand Name :
AOLING
Model Number :
3TNV88-GGE
Certification :
ISO9001 / CE / PVOC
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 sets / Week
Delivery Time :
7 days
Packaging Details :
Poly wooden case
Power(Prime/Standby) :
21KW / 23KW
Frequency :
50/60HZ
Speed :
1500RPM /1800RPM
Cylinder type :
4 cylinder 4-stroke
Displacement(L) :
2.54L
Governor type :
Mechanical
Emmision compliant :
Stage II
consumption :
240g/kw.h
Bore diameter*Stroke(mm) :
90x100mm
Certificate :
ISO9001/CE
Warranty :
1 year or 1000 hours
Description

YANMAR ENGINE SELECTION:

Engine model intake type

Bore x

stroke

1h

power

 12h power RPM Fuel consumption Displacement Dimension
3TNV88-GGE Nature 88x90 15.3 14 1500 223 1.642 765x530x770
4TNV88-GGE Nature 88x90 19.5 18 1500 221 2.192 835x530x770
4TNV88-GTE Turbo 88x90 27 24 1500 212 2.192 835x530x770
4TNV88-GLE Turbo 88x90 31 28 1500 210 2.192 835x530x770
4TNV88-AAE Turbo 88x90 40 36 1500 206 2.192 835x530x770

DISEL ENGINE SPECIFICATION:

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand AO LING
2.2 Engine Model 3TNV88-GGE
2.3 Governor/Class Mechanical
2.4 Cylinder NO. 3
2.5 Engine build Line
2.6 start-up method 12V, electric
2.7 Battery capacity 100Ah
2.8 Fuel spray pattern Direct Injection
2.9 Aspiration Nature
2.10 Cooling mode Radiator cooled (enclose water)
2.11 Bore and stroke 88 × 90mm
2.12 Compression ratio 19.1:1
2.13 Displacement 1.642L
2.14 Engine Prime Power at 1500rpm 12.2kWm
2.15 Engine Standby Power at 1500rpm 13.2 kWm
2.16 Fuel type #0 Diesel (Natural temperature)
2.17 Filter system

Adopt whole changeable lubricating

oil, fuel filter and air filter
2.18 Exhaust system

Adopt industrial high efficiency

muffler and ripple pipe

Applications:

1. Use for generators , 1500rpm and 1800rpm , 50HZ or 60HZ

2. Use for water pump

3. Repair old generators

Competitive Advantage:

1.Discharge approval EURO II standard, Low noise

2.Low fuel consumption 198g/KWh, reduce at least 8-10g/KWh.

3.Design exquisite , small volume, light weight and (these can better reduce the fuel consumption)

4. Small dimention

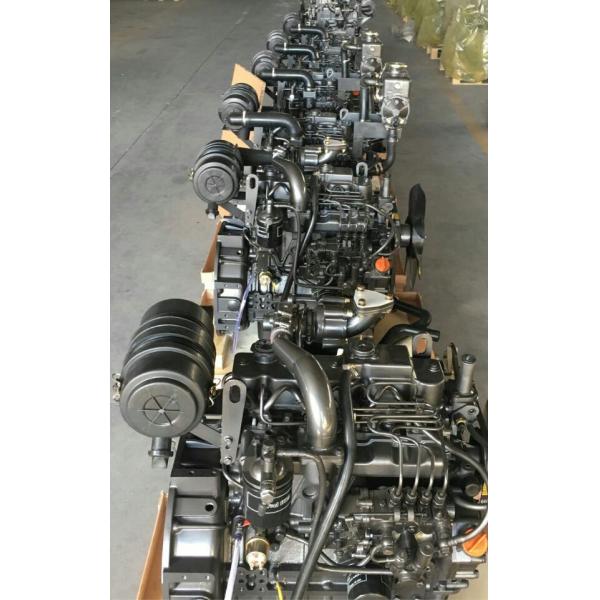

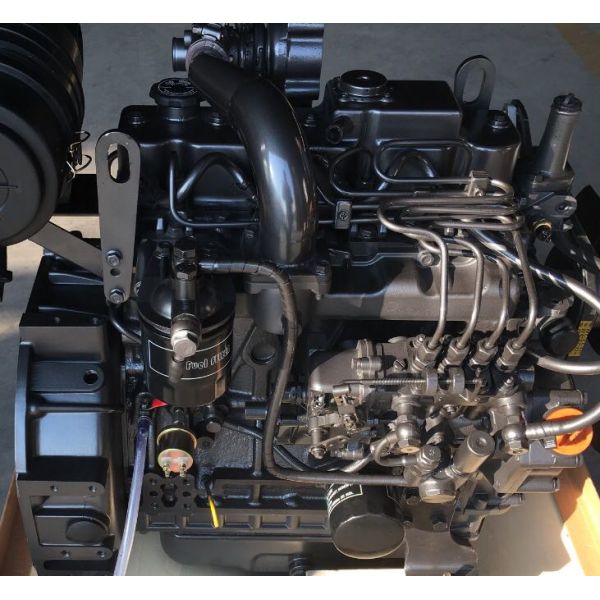

Engine photos:

Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm

Electric Yanmar Diesel Engines 3TNV88-GGE 4TNV88 ISO CE Certificate 1500rpm
