Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
Specifications
Brand Name :
Tongsheng
Model Number :
TSDZ2 350W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
3000 sets/per month
Delivery Time :
5-7 working days for sample
Packaging Details :
Standard carton for Torque sensor 48v 350w middle postion drive motor electric bicycle kit: Package size:25*25*23cm Gross weight:5.4kgs
Bottom Bracket :
68mm
Rated efficiency :
more than 85%
Max speed :
30km/h
Display :
VLCD5
Max torque :
75N.m
Construction :
Geared Motor
Description

Torque sensor 48v 350w middle postion drive motor electric bicycle kit:

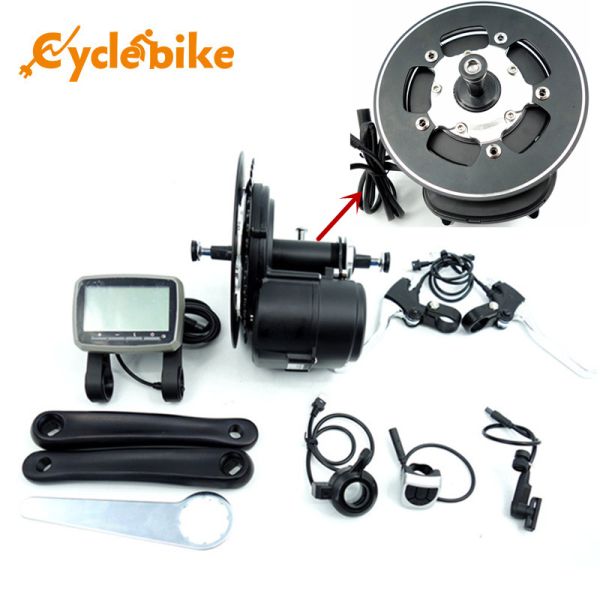

1.Package of Torque sensor 48v 350w middle postion drive motor electric bicycle kit:

TSDZC motor kit :
MOTOR:350W

BB:68mm

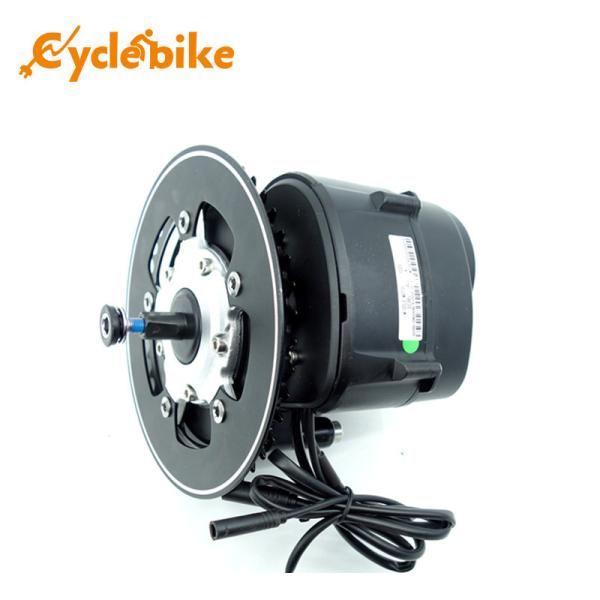

1×Mid motor(torque sensor)

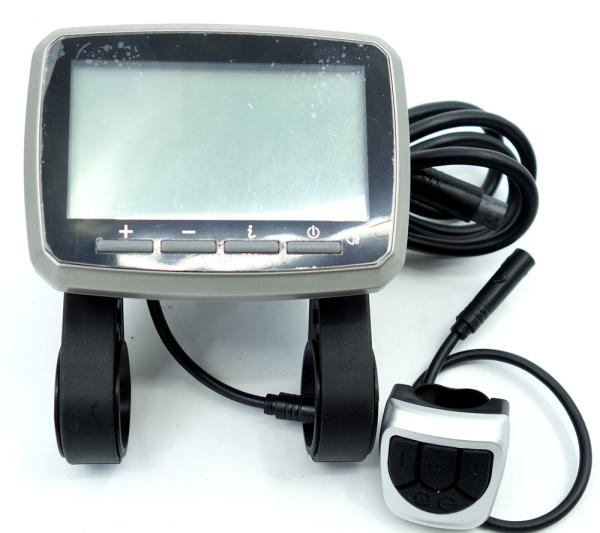

1×VLCD display
1×Speed sensor

1×Chain wheel/chain cover
1×Thumb throttle
2×Crank


Warranty is 2 years for motor,and half year for parts.

Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w

2.Detailed infomation of Torque sensor 48v 350w middle postion drive motor electric bicycle kit: includes:

Model NC-TZ-C 48V 350W
Motor 48v 350w Mid drive motor
Controller Integrated Builit-in controller 13A
Torque sensor Torque-Sensed(Intelligent)Control Systems Built-in Motor

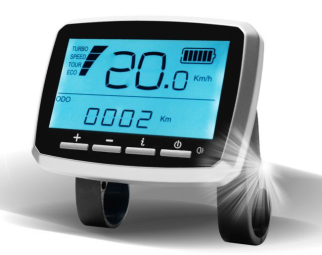

Lcd display Various function LCD display
Chain wheel 42T high quality Steel chain wheel
Chain cover High quality Aluminum alloy chain cover
Crank 42T high quality Steel chain wheel
Cables Waterproof interconnection cabling
Nuts Mounting screws
Tool Assembled Toll
Package size 25*25*23cm
Gross weight 5.4KGS
Bottom bracket size 68mm
Optional
Brake lever Electric brake levers
Throttle Thumb/twist throttle

Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w

Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w

Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w

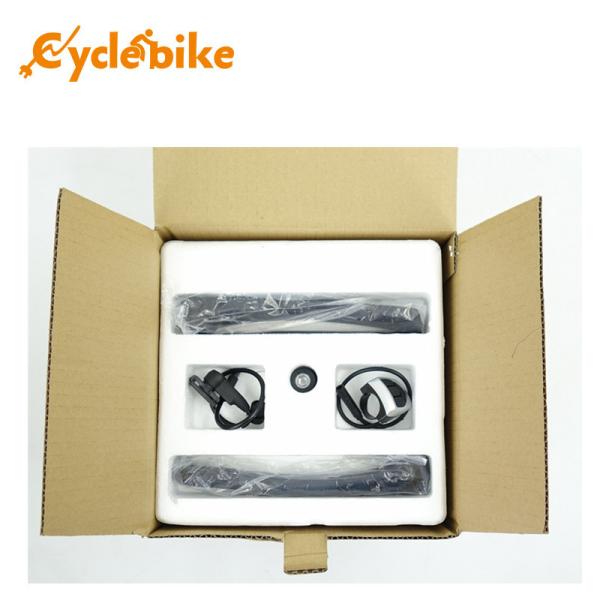

3.Package of this Torque sensor 48v 350w middle postion drive motor electric bicycle kit:

Middle Postion Drive Motor Electric Bike Kit Torque Sensor 48v 350w
