50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
Specifications
Brand Name :
NC
Model Number :
NC5000
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T,, Western Union,paypal
Supply Ability :
2000pcs/Month
Delivery Time :
7-10 working days after payment
Packaging Details :
carton box with foam, package size : two motors in one box, the size is 48cm x 28cm x 28cm
Voltage :
48v -72v
Power :
5000w
Colour :
black
Type :
Rear motor only
Magnet Height :
50mm
Design :
Brushless gearless
Windings :
4TX20
Warranty :
2 years
Description

50H magnet 72v 5000w ebike motor:

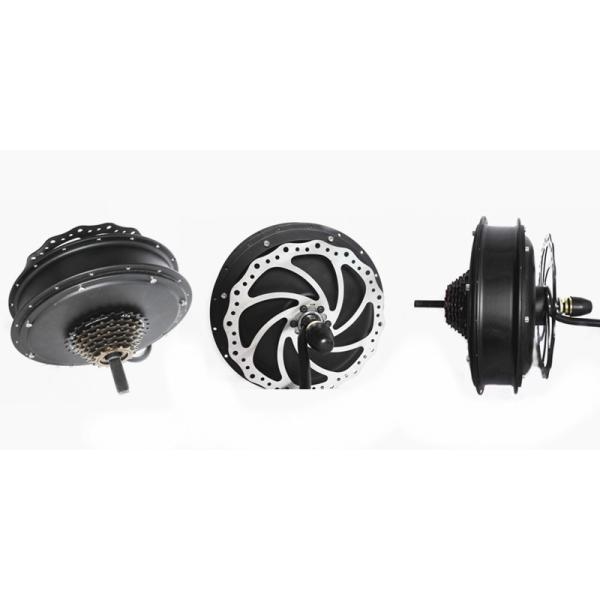

1.Picture of this 5000w electric bike motor:

50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor

2.Detailed parameter of this 5000w electric bike motor:

Model NC5000
Motor power 5000w
Axle 10mm* 16mm
motor diameter 244mm
Voltage 48v-96v
Magnet Height 50mm
stator aluminum alloy
windings 700rpm @72v, 4TX20
waterproof grade IP54
numbers of pole pairs 23
peak phase current 300amp
Max torque > 190N.m
Max Efficiency 89.80%
drop out 149mm
Numbers of Motor phase 3 pcs
Hall sensor 2 sets, one is for spare
hall sensor phasing 120 degrees
cross section of phase wire 10mm2
temperature sensor KTY82/122
color dark black
N.W 12.75kgs

Description for 5000w ebike hub motor:

  • Low noise
  • Electricity saving, 89%
  • High torque, 190N.M
  • High strength
  • High safety coefficient, high efficiency
  • Long service life
  • Not easy to be hot
  • Big power
  • Warranty : 2 years
  • OEM

3.Package of this 5000w electric bike motor:

50mm Height Electric Bike Kit , 50H magnet 72v 5000w Gearless Ebike Motor
