TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
Specifications
Brand Name :
NC
Model Number :
NC723000W
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,, Western Union,Paypal
Supply Ability :
20000sets/month
Delivery Time :
7-15 working days
Packaging Details :
Material : Protection foam and export carton
Voltage :
72v
Power :
5000w
Max speed :
80km/h
Controller :
Programmable Sabvoton controller
Torque :
190N.m
Alex :
10mmx16mm
Display :
TFT display
Cable :
All waterproof
Rim :
Mtx 26" 28" 29" or 18" 19" 21"
Warranty :
2 years
Description

New arriaval!!!TFT colour display 72v 5000w ebike conversion kit:

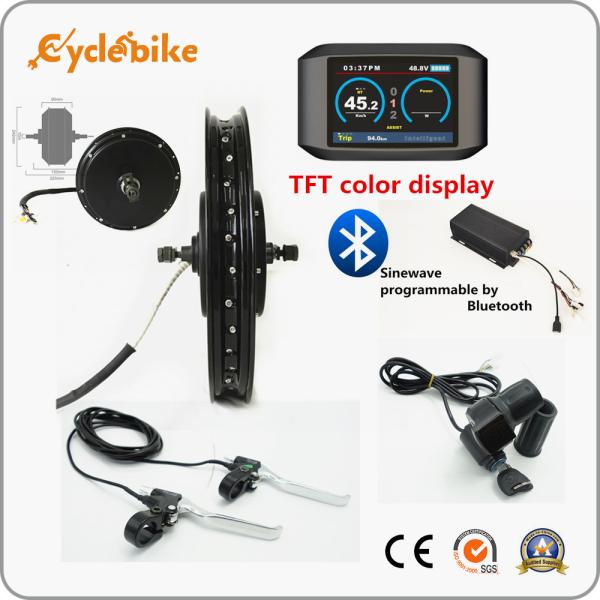

1.Our kit include the following parts:

1
New TFT LCD colour display with 3.2" high clear color screen
2
48v-72v 3000w rear hub motor brushless gearless design,70km/h high speed
3
MTX33/39 Sun Ringle bicycle rim+motorcycle rim
4
48v-72v 60amp Sabvoton controller ,sine wave,programmable,regenerative braking.
5
Throttle
6
Brake lever

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty

2.Detailed images and specification:

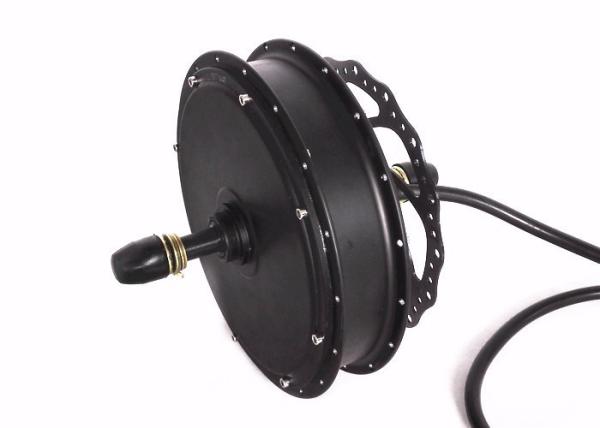

1.48v-72v 5000w ebike motor with rim

1.1)Motor voltage:48v -72v 5000w

2)Motor Power:5000w

3)Alex:10mmx16mm

4)RPM:920

5)Magnet Height:50mm

6)Wings:4TX20

7)Max speed:80km/h

8)Max torque:190N.m

6)Open size:150mm

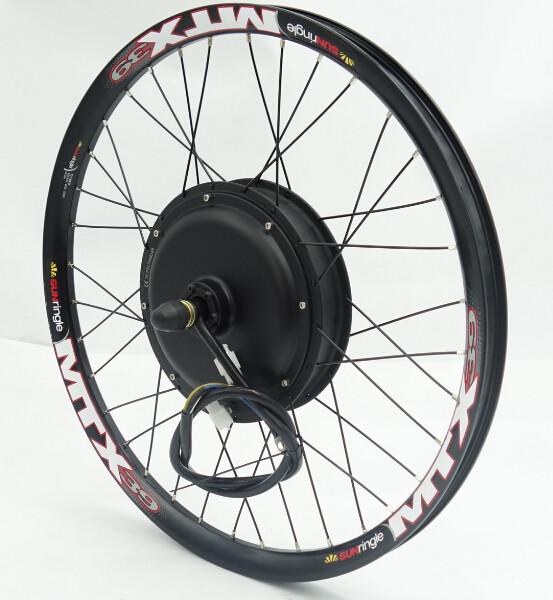

2)MTX sun ringles rim

24'', 26'', 700c, 29'' for bicycle rim,18",19",21" for motorcycle rim.

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty

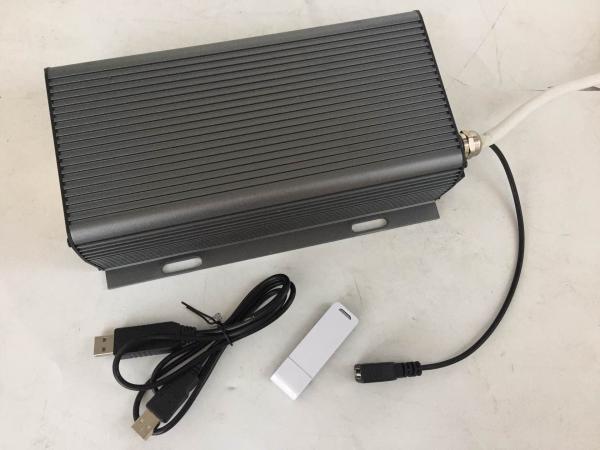

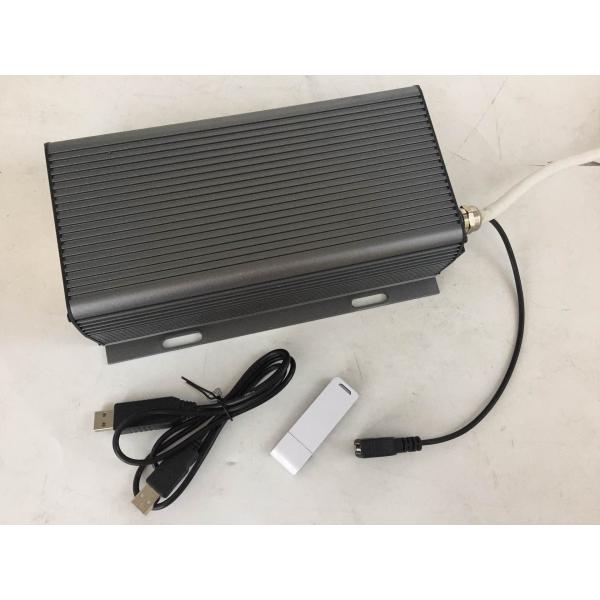

2.48v-72v 80A Sabvoton controller:

48v-72v 80amp smart controller ,24mosfet with sine wave system, Cables’ Function :

Hall sensor, 3 phase,Throttle,Three speed,Battery Indicator,EBS brake, Regen.Brake,Cruise ,Connector for our new TFT display.

New function:1.Bluetooth.

2.And can be programmabled by mobile phone.

Size:14.6x6.2x21.2cm very light,about 2.35kgs.

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty

3.Throttle for 5000w ebike conversion kit:


Twist throttle with 3 speed , lock and battery voltage dispaly:

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty

4.Electric brake lever:

The WuXing aluminum brake levers supplied contain micro switches that cut the power to the motor when applied. These levers are compatible with both disk and v-brakes.

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty

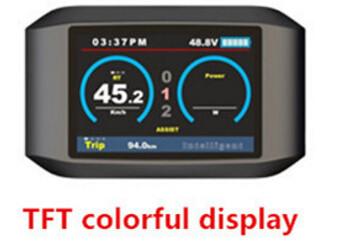

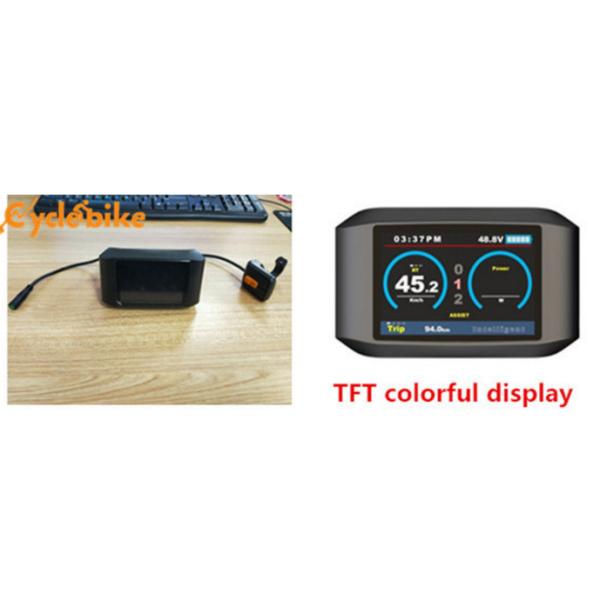

5.New TFT colour display:

3.2" high contrast color screen shows battery power level, time, speed, mileage, gear, input power. Components error checking and report.

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty

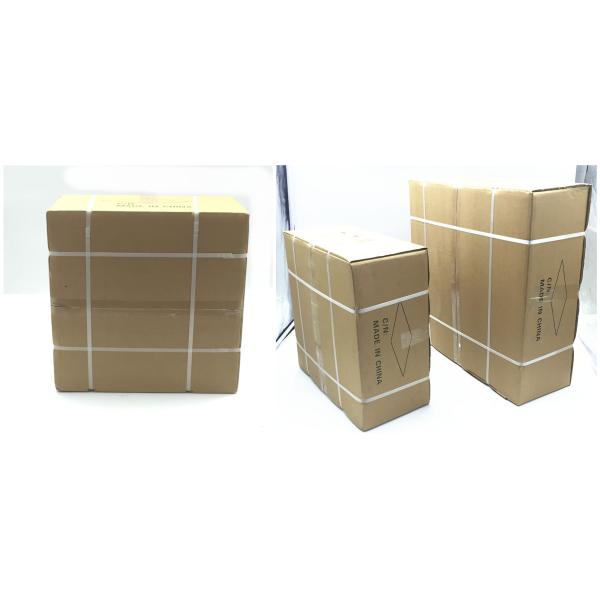

3.Packing for 72v 5000w ebike conversion kit:

TFT Colour Display 72v 5000w Ebike Conversion Kit With 2 Years Warranty
