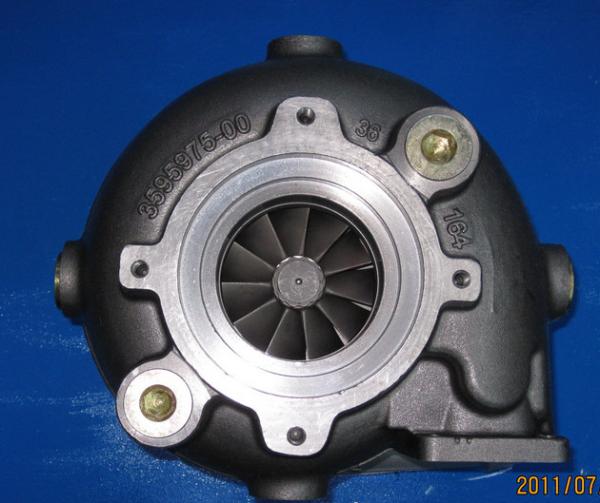

1995-11 Cummins Marine HX80M Turbo 3596961
1995-11 Cummins Marine HX80M Turbo 3596961
Specifications
Description

Product Description

Part Number 3596961
Previous Number 3536363, 3538512, 3538513, 3594149, 3594151, 3596961, 3596963, 3596966, 3767945
OE Number 2882022, 3804491, 3804492, 3804697, 3804830
Description Marine
Manufacturer Part Number 4025301
Turbo Model HX80M, HX80-3851Z/R36T3, HX80-3851Z/R36YA3
CHRA 4027408
Engine K19, K38
Engine Manufacturer Cummins
Manufacturer Part Number 3537686, 3537687, 3594150, 3594152, 3596962, 3596963, 3596964, 3769997, 3769998
Displacement 38.0L, 3800 ccm
Fuel Diesel
KW 400 HP
Angle α (compressor housing) 19/199º
Angle β (turbine housing) 22.5/360º
Bearing Housing 3595036 (359503600)
Turbine Wheel 3521033 (Ind. 129.0 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
Rotor Assembly 3575208
Comp. Wheel 3533703 (3535772, 3593182)(Ind. 90.96 mm, Exd. 141.05 mm, Trm 41, 8+8 Blades)
Back plate (Diffuser) 3538455
Heat shield Number 3536588 (1153080340)
Repair Kit 3545647 (3575236, 4027966)(1152105750, 1152105756)
Turbine Housing (Water Cooled) 3595978
Compressor Cover 3527369
Gasket (turbine inlet) 311698
Gasket Kit 4032454
Plug (Threaded) 3201583
Replaced by Superseded 3769995
Manufacturer CHINA

Applications

1995-09 Cummins Marine with K38 Engine
