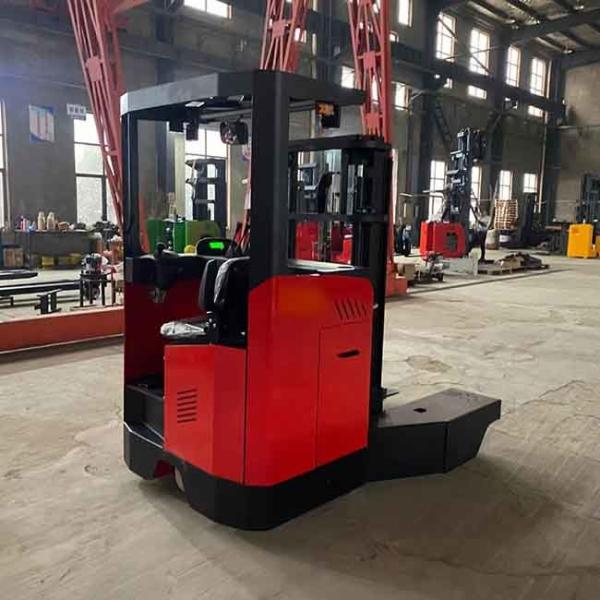

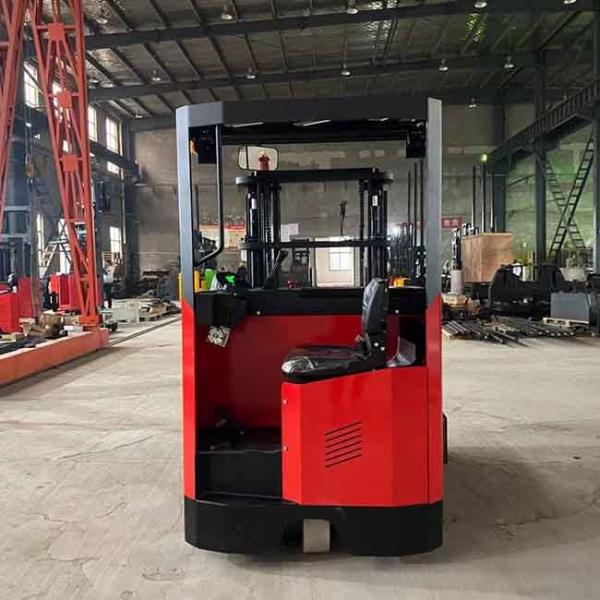

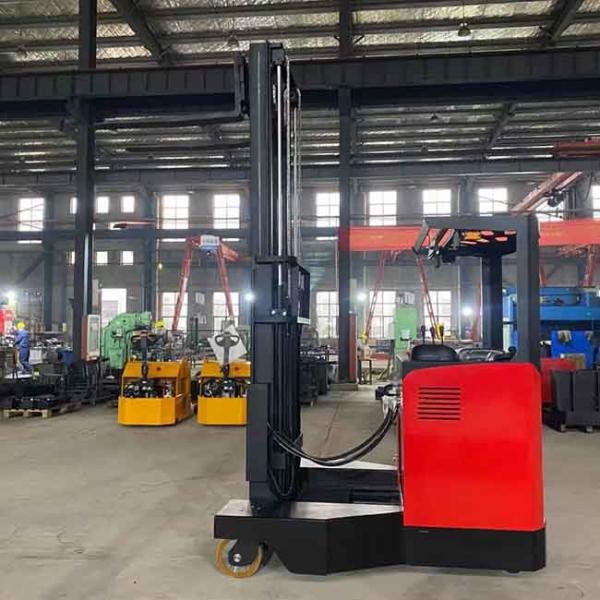

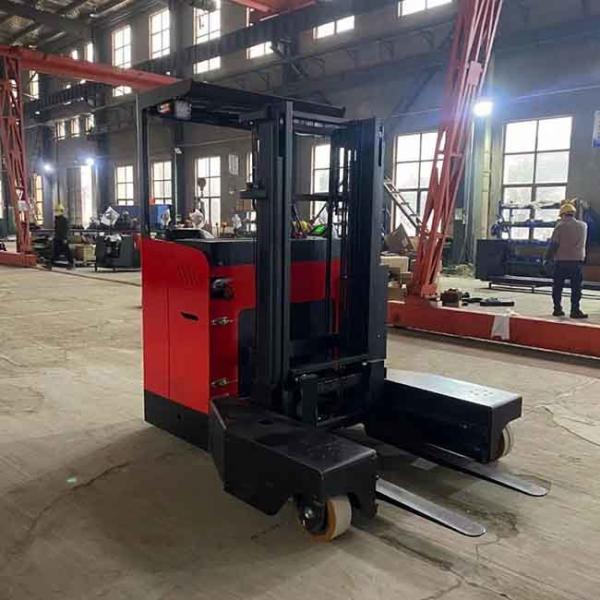

1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
1500kg CQD15S-45 1.5T Multi-direction Seated Forklift triplex mast 6m
Specifications
Brand Name :
YEAWEY
Model Number :
CQD15S-45
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.5T Multi-direction Seated Forklift
Load capacity :
1500 kgs*600mm
Lift height :
3000-7500mm
Mast type :
Triplex 7500mm
Battery :
48V/310Ah
Service weight :
3500 kgs
Description

Main information:

Model: CQD15S/ 20S

Load: 1500-20000KG

Lifting height: 3000-7500mm

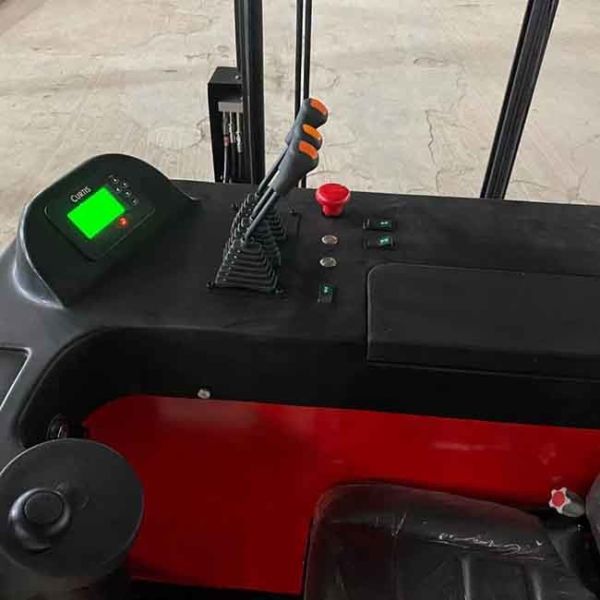

Curtis controller

AC drive an lift motor

  • Wide angle view, high-strength shock absorption mast
  • American CURTIS brand drive control system
  • Zhongnan speed transmission
  • Electronic steering, portable, mute
  • Jindao brand low noise hydraulic pump and valve
  • Four way travel drive speed compensation
  • Electromagnetic regenerative braking system
  • High and low limit electrical overheat protection
  • Line fault detection error code diagnosis
  • Torch brand 48V high capacity lead-acid battery

  • Curve automatic deceleration device
  • Automatic deceleration of fork in high cargo position
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve

Item Model CQD15S-45
1 Load capacity Q(kg) 1500
2 Load center C(mm) 500
3 Front overhang X(mm) 210
4 Wheel base Y(mm) 1600
5 Self weight with battery kg 3500
6 Tire type Pu solid tire
7 Front tire size ∅×w(mm) φ267*114
8 Rear tire size ∅×w(mm) φ382*142
9 Track width, front wheels b10(mm) 1432
10 Height-Mast lowered h1(mm) 2110
11 Free Lift Height h2(mm) 1500
12 Lift Height h3(mm) 4500
13 The maximum height of the gantry during homework h4(mm) 5480
14 The height of overhead guards h14(mm) 2280
15 The height when fork lowered h13(mm) 35
16 Tilt-Forward/Back α/β(°) 3/5
17 Overall length l1(mm) 2490
18 Length of the body l2(mm) 2080
19 Width of the body b1(mm) 1682
20 Leg height h5(mm) 390
21 Leg inner width b12(mm) 932
22 Leg outer width b11(mm) 1682
23 Fork Dimensions s/e/l(mm) 35/100/1070
24 Fork Spread b5(mm) 210-700
25 Reach distance L(mm) 685
26 Min ground clearance m2(mm) 70
27 Aisle Width,pallet 1000*1200mm Ast(mm) 2690
28 Min. Turning radius Wa(mm) 1916
29 Max travel speed unladen/Load km/h 8/7
30 Max. lifting speed unladen/Load m/s 0.250/0.240
31 Max. lowing speed unladen/Load m/s 0.240/0.260
32 Grade Ability unladen/Load ％ ≤10
33 Drive brake electromagnetic
34 Drive motor kw 6.5
35 Lift motor kw 8.6
36 Battery type Lead acid
37 Battery capacity V/Ah 48V300Ah
38 Charger-intelligent V/Ah 48V/40A
39 Drive Controll Type alternating current
40 The noise level in the driver's ear according to EN12053 dB(A) 75
