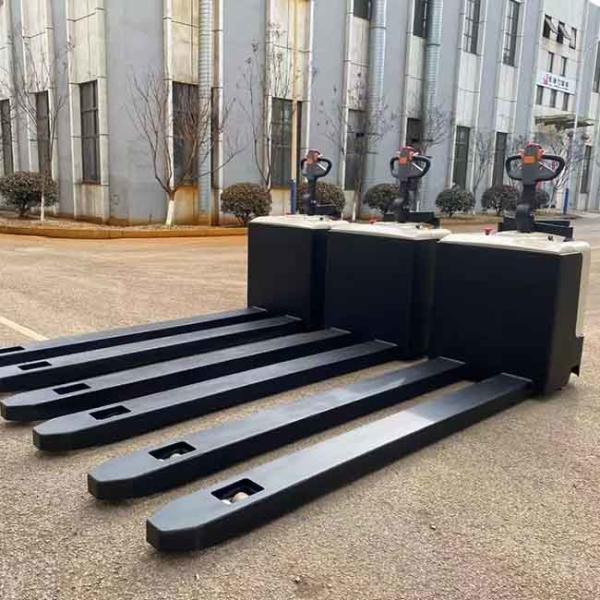

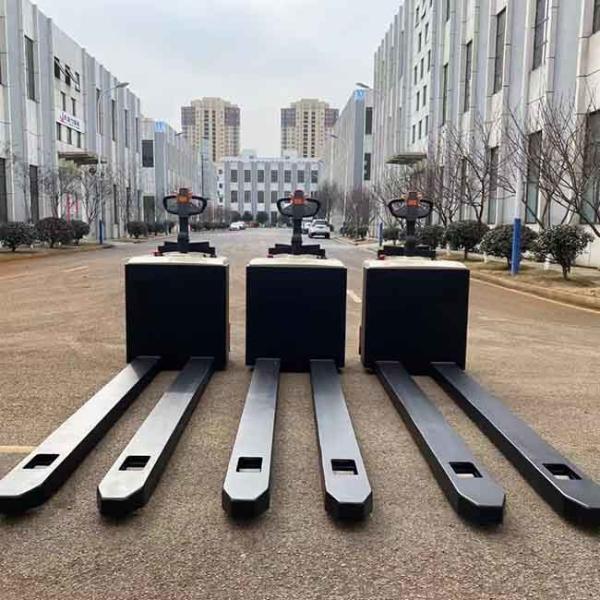

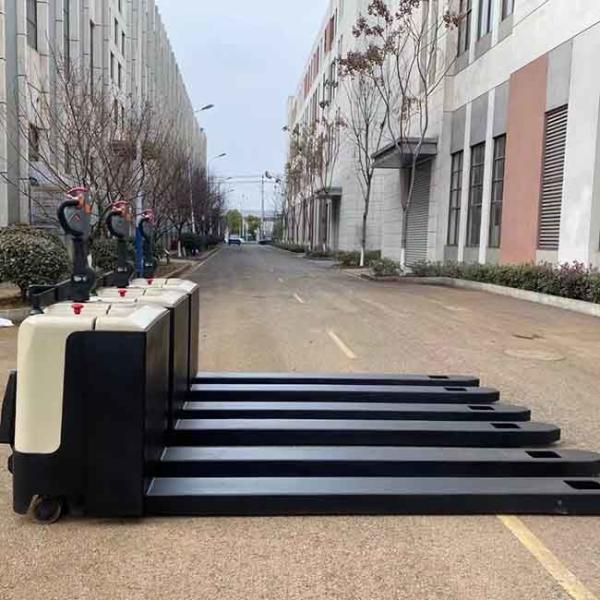

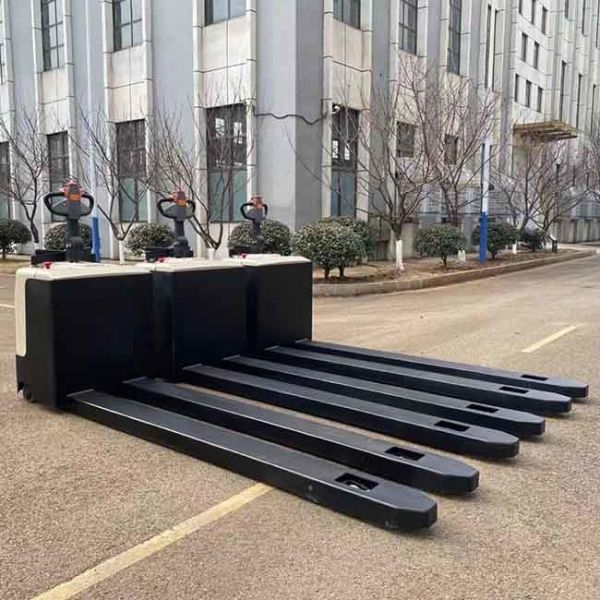

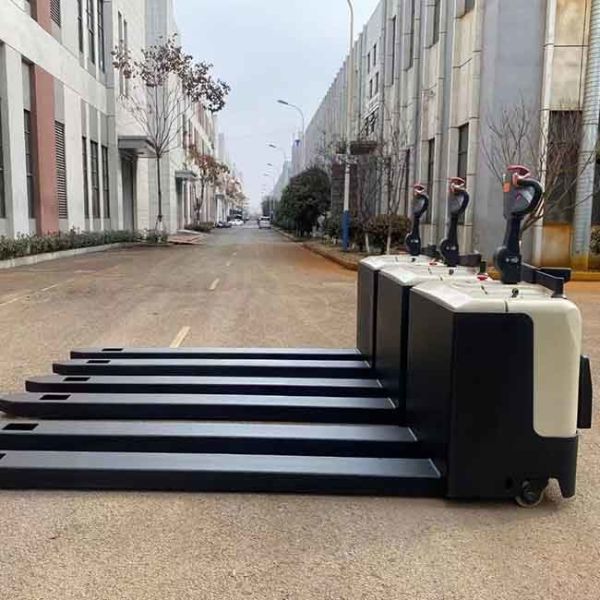

Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
Specifications
Brand Name :
YEAWEY
Model Number :
CBD50
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
5Ton pallet lift truck heavy duty
Lift capacity :
5000kg*600mm
Battery :
Lead acid battery 24V/300AH
Self weight :
560kg
Fork length :
1220-1800mm
Charger :
24V/40A
Description

5000kgs stand type 5T electric pallet stacker Mini Walk Electric Hydraulic Pallet Truck

Main information:
Load capacity: 5T*600mm
Chinese full AC controller

Lead acid battery 24V/300AH
AC lift motors
Lead acid battery 24v/300ah
Fork 1220mm

Perfect for light-duty applications.

Compact and robust design.

Light service weight.

Fast-charging Li-ion batteries.

Idea for use on retail stores and lorries.

Easy-battery replacement

1 Model CBD50Ⅲ
2 Power Battery
3 Driving mode Stand
4 Steering form Electric
5 Load center Q(kg) 5000
6 Load capacity C(mm) 600
7 Wheel base Y(mm) 1455
8 Self weight with battery kg 560
9 Tire type PU
10 Front tire size ∅×w(mm) φ80*110
11 Rear tire size ∅×w(mm) φ254*102
12 Balance tire size ∅×w(mm) φ150*50
13 Max. lifting height H(mm) 225
14 Mast lowed fork height H1(mm) 105
15 Fork overall width S1(mm) 720
16 Overall length(W/WT padel) L(mm) 1950/2365
17 Overall width S(mm) 850
18 Fork size s/e/l(mm) 70/215/1200
19 Right angle stacking channel (1200x1000mm)(W/WT padel) Ast(mm) 2520/2925
20 Min Turning Radius When Pedal Closed Wa(mm) 1785
21 Max.walking speed km/h 5/4
22 Max. lifting speed m/s 0.042/0.04
23 Max. lowing speed m/s 0.35/0.045
24 GradeAbility ％ 8/5
25 Drive brake Electromagnetic
26 Drive motor KW 3
27 Lift motor KW 3
28 Battery type Lead acid
29 Battery capacity V/Ah 24V300Ah
30 Charger V/Ah 24V/40Ah
31 Drive Controlling Type AC

Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet StackerStand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet StackerStand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet StackerStand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet StackerStand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker

Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker

Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker

Stand Type 5T Electric Power Jack 5000kgs Hydraulic Hand Pallet Stacker
