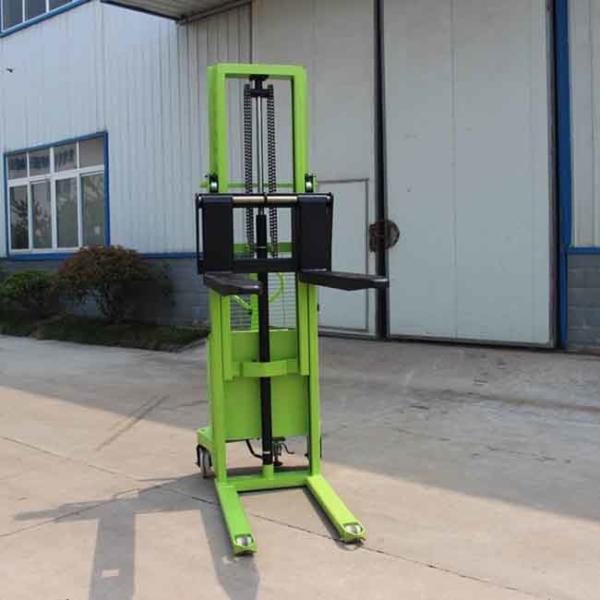

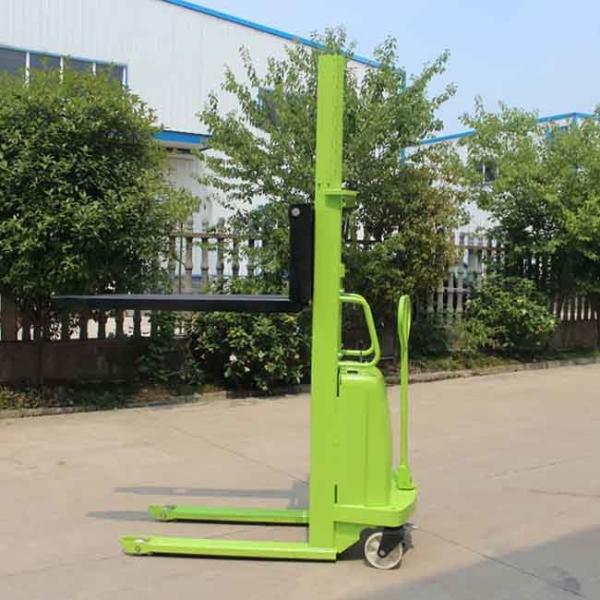

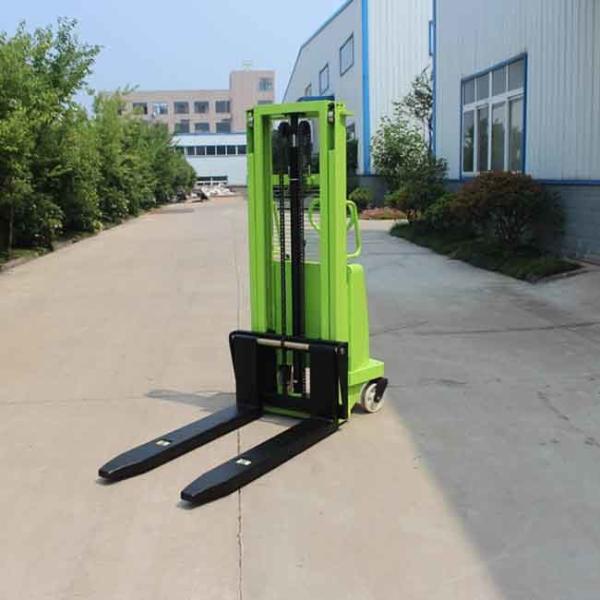

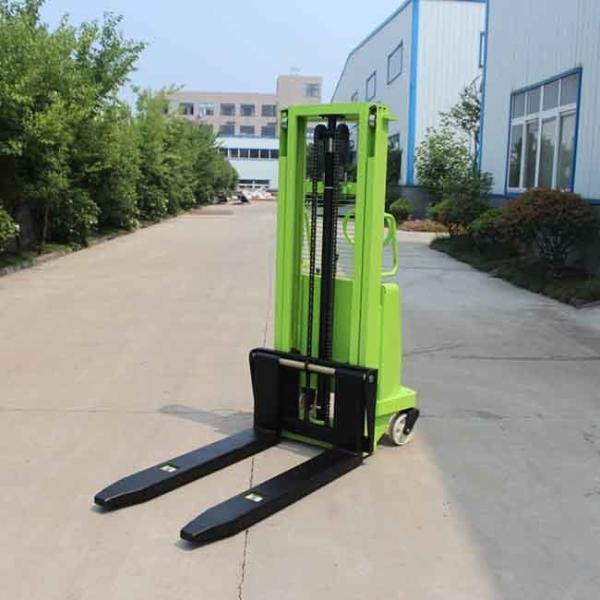

2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
Specifications
Brand Name :
YEAWEY
Model Number :
CDD10A-CDD20A
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1 -2T semi electric forklift
Load capacity :
1000-20500 kgs
Lift height :
3000mm standard
Power :
Semi electric
Fork Size :
65/160/1150
Service weight :
420-500kg
Description

2 stage 3m mast 1-2Ton semi-electric stacker warehouse use lead acid battery

Main information:
Chinese DC controller
12V/120Ah lead acid battery
Mast type: 2 stage mast 3m lifting height
Tires: PU solid
Fork: 1150mm
Attachments:

  • Hydraulic power unit structure is compact, responsiveand with strong power.
  • Body design is exquisite, flexible operation, and laboursaving impulse.
  • Built-in high-energy sealed battery, Long-term usewithout maintenance, so you don't need to add waterduring the period of life.
  • Foot brake operation is user-friendly.
  • Electricity meter is configured, so as to remind operatorschargetimely, and convenient to protect the battery.


Warranty:
The warranty period is 24 months from on board date or 2000 working hours whichever comes first.
During warranty, we offer air delivery of the spare parts within 2 working days.Besides that, we have experienced engineers to check the problems and maintenance.
Delivery time:
As a factory, we can offer fast products delivery, standard forklift is 7 working days, Forklift with options is 10-20 working days.
Should you have any questions pls feel free to let us know.

ItemModel CDD10A-30CDD15A-25CDD20A-16
1Power type Semi electric
2Drive mode Walkie Type
3Load capacityQ(Kg)100015002000
4Load centerC(mm)500500500
5Wheel baseY(mm)128012801280
6Self weight with batterykg402421502
7Tire type Front /Rear nylon/nylonnylon/nylonnylon/nylon
8Front tire size∅×w(mm)Φ80x70Φ80x70Φ80x70
9Rear tire size∅×w(mm)Φ180x50Φ180x50Φ180x50
10Track width, front wheelsb2(mm)520520520
11Track width, rear wheelsb3(mm)693693693
12Height-Mast LoweredH1(mm)208018302080
13Lift HeightH(mm)300025001600
14Maximum height when fork is liftingH2(mm)342929292080
15Min.Fork heightH3(mm)858585
16Overall lengthL(mm)180018001800
17Overall widthb1(mm)775775775
18Fork dimensionss/e/l(mm)65/160/115065/160/115065/190/1150
19Forks Spreadb5(mm)680680710
20Min ground clearancem2(mm)252525
21Min. stacking aisle 1000*1200 pallet(1200 cross fork placement)Ast(mm)226722672267
22Min. stacking aisle 1000*1200 pallet(1200 placed along forks)Ast(mm)238623862386
23Min. Turning radiusWa(mm)140514051405
24Max. lifting speedm/s0.112/0.0920.112/0.0900.112/0.085
25Max. lowing speedm/s0.108/0.1200.108/0.1230.108/0.125
26Drive brake machinerymachinerymachinery
27Lifting motorkw1.61.62
28Battery type lead acid battery
29Battery capacityV/Ah12/12012/12012/120
30ChargerV/Ah12V/15A12V/15A12V/15A
31DriveControllingType machinerymachinerymachinery
32The noise level in the driver's ear according to EN12053dB(A)707070


2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack

2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack

2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack

2 Stage 3m Mast Semi Electric Pallet Stacker 1T-2T Warehouse Pallet Jack
