Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
Power Cable
Insulation Material :
xlpe
Type :
High Voltage
Application :
Construction
Conductor Material :
Copper
Jacket :
PVC
Product name :
Medium Voltage Power Cable
Conductor :
Stranded Aluminum Conductor
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
BS IEC ASTM DIN
Package :
Wooden Drum
MOQ :
5000 meters
Price :
$5.00 - $50.00/meters
Description
1. Specifications:

Power Cable:Cu(Al)/XLPE/SWA/STA/PVC
-standard:GB,IEC,AS
-Approval:CQC,ABS,GL ,QMS
-10ys experience

2. General information

Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Application:

These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.

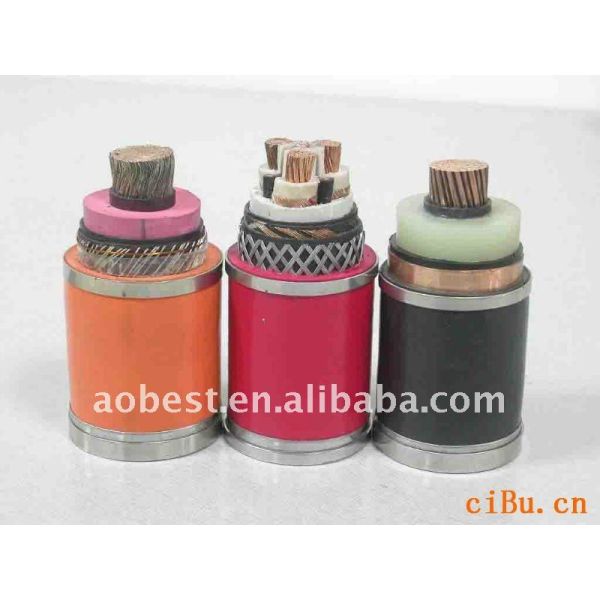

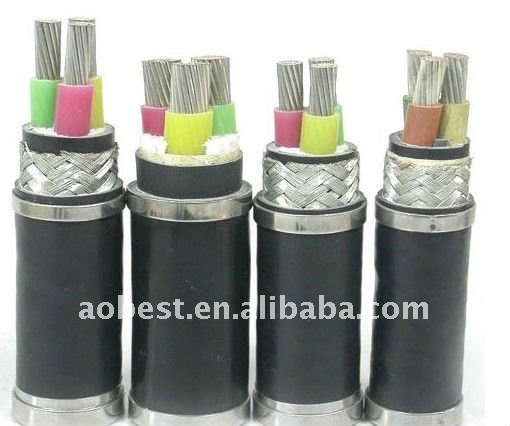

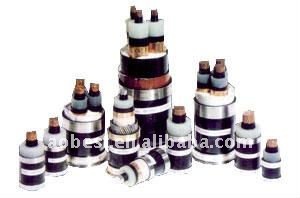

Construction:(Example of YJV32 8.7/15kV)

Copper(aluminum)conductor or conductor screen

XLPE insulation or insulation screen

Color for core identification

Assembly/beding/armoured/outer sheath.

3. Some common use model

China Model

Name

Uses

Cores

Conductor nominal cross section mm2

YJV

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

1

1.5~800
2.5~800
10~800

YJY
YJLY

Copper core XLPE insulated PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

2

1.5~800
2.5~800
10~800

YJV22
YJLV22

Copper core XLPE insulated Galvanized steel Tape armoured PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

.

3

1.5~400
2.5~400
2.5~400
10~400


YJV23

YJLV23

Copper core XLPE insulated Galvanized steel Tape armoured PE sheathed

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

4

1.5~400
2.5~400
2.5~400
10~400

YJV32
YJLV32

Copper core XLPE insulated Galvanized steel wire armoured PVC sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

3+1

1.5~400
4.0~400
4.0~400
10~400

YJV33
YJLV33

Copper core XLPE insulated Galvanized steel wire armoured PE sheathed power cable

Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull.

YJY YJLY

4+1

+ 1.5~400
4.0~400
4.0~400
10~400

Note: ZR means flame retardent
