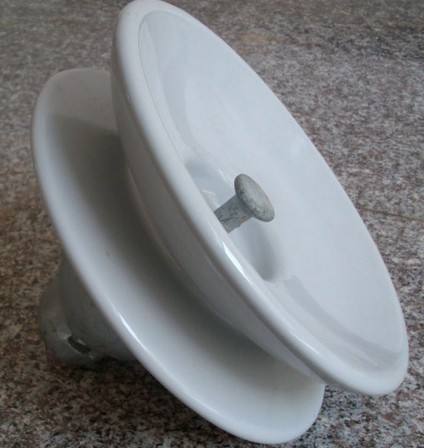

Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Shackle type porcelain electrical insulator
Specifications
Place of Origin :
Henan, China
Brand Name :
aobest
Model Number :
insulator
Type :
Insulator
Material :
Porcelain
Application :
LOW VOLTAGE
Rated Voltage :
15kv
Tensile Strength :
70KN
Product name :
Insulator
Certification :
ISO9001:2008
Standard :
IEC60893-2004
Sample :
Sample Avaliable
Keywords :
BMC SMC Insulator
Packaging Details :
wooden case or carton
Port :
Qingdao
Supply Ability :
200000 Piece/Pieces per Month
MOQ :
5000 pieces
Price :
$1.00 - $4.00/pieces
Description

High Strength insulator, Competitive Price, Good Technical Service, Delivery Goods on Time, Stable Quality, Great Performance

Type

52-3

Main Dimensions(mm)

D

254

H

146

Creepage Distance

292

Power-frequency Puncture Voltage(kv)

110

Average flashover voltage

Power-frequency

Dry(kv)

80

Wet(kv)

50

Critical-Impulse 1540us wave

Positive(kv)

125

Negative(kv)

130

Radio-Influence-voltage Data

Test Voltage to ground(kv)

10

Maximum RIV at 1000kHz(uV)

50

Electromechanical Failing Load(KN)

67

Mechanical Impact Strength(n.m)

5.5

Time Load Test Value(kn)

44

Shackle type porcelain electrical insulatorShackle type porcelain electrical insulatorShackle type porcelain electrical insulator
