LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
LXP-120 toughened glass disc suspension insulator
Specifications
Place of Origin :
Henan, China
Brand Name :
aobest
Model Number :
insulator
Type :
Insulator
Material :
glass
Application :
High Voltage
Rated Voltage :
100KV
Tensile Strength :
60KN
diameter :
255mm
MECHANICAL FALING LOAD :
120KN
Packaging Details :
carton or bamboo sheet.
MOQ :
5000 pieces
Price :
$6.60/pieces 5000-9999 pieces
Description

LXP-120 standard suspension insulator

Welcome your contact.

Email: aobest(at)aobest.cn

WhatsApp:+86 13310857673

Wechat:+86 13316918635

LXP-120 insulator specification
GENERAL TYPE U120B/146 U120B/127
TYPE OF RUITAI LXP-120 LXP2-120
( mm ) DIAMETER D 255 255
( mm )SPACING H 146 127
( mm ) CREEPAGE L 320 320
( mm ) 16 16
( kN )MECHANICAL FALING LOAD 120 120
( kN ) TENSION LOAD TEST 60 60
( kV ) POWER FREQUENCY WITHSTAND VOLTAGE(WET) 40 40
( kV ) LIGHTENING IMPULSE WITHSTAND VOLTAGE LIGHTENING IMPULSE WITHSTAND VOLTAGE 100 100
( P.U )IMPULSE PUNCTURE VOLTAGE 2.8 2.8
( kV ) POWER FREQUENCY PUNCTURE VOLTAGE 130 130
( µV ) ( 10kV,1MHz) 50 50
( kV ) ELECTRIC IRON VISUAL TEST (CAP/PIN) 18/22 18/22
POWER FREQUENCY ELECTRIC ARC VOLTAGE POWER FREQUENCY ELECTRIC ARC VOLTAGE 0.12s/20kA 0.12s/20kA
( kg )NET WEIGHT PER UNIT 4 4

LXP-120 toughened glass disc suspension insulatorLXP-120 toughened glass disc suspension insulator

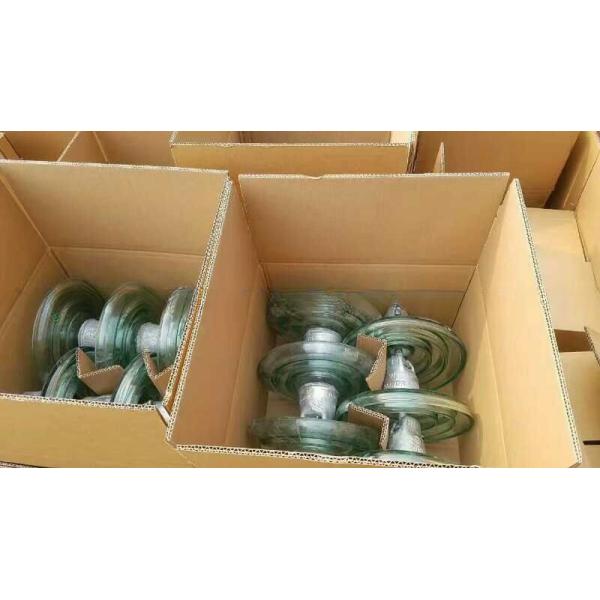

The LXP-120 insuator package:

LXP-120 toughened glass disc suspension insulatorLXP-120 toughened glass disc suspension insulatorLXP-120 toughened glass disc suspension insulator
