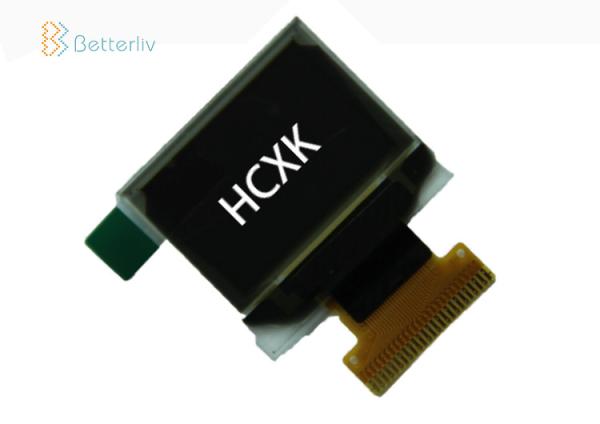

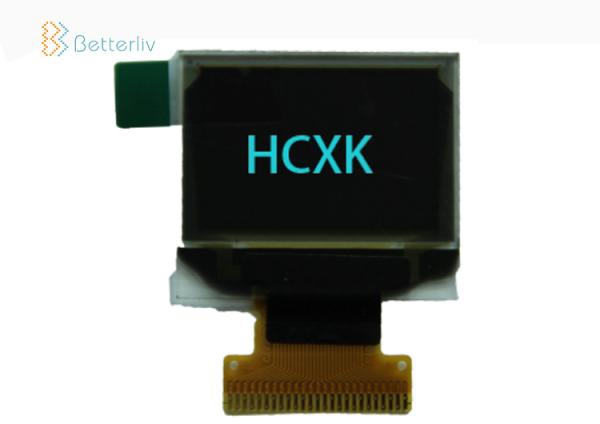

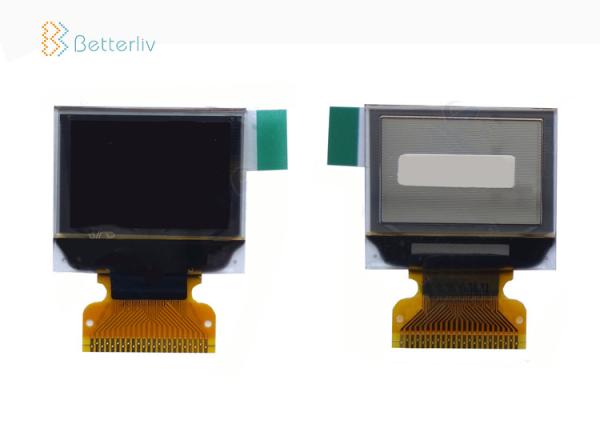

SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
Specifications
Brand Name :
Betterliv/OEM
Place of Origin :
Shenzhen,China
Payment Terms :
T/T, Western Union, Credit Card
Model Number :
HCQ9664BB25S01
Production Size :
0.95 inch
Color :
White/Blue
Number of Pixels :
96X64
Driving Method :
Passive Matrix
Panel Size :
24.9X22.95X1.4mm
Active Area :
19.953X13.424mm
Duty :
1/64
Pins :
25 pins
Interface :
Parallel, 4-wire SPI, I²C
Power Supply Voltage :
2.6V-3.5V
Description

0.95 Inch Small OLED Display Module with 96x64mm Dot Matrix, High Brightness and Self-emission

Product Description

  • Display color: White,Blue
  • Dot matrix: 96 x 64 dots
  • Driver IC: SSD1305
  • Interface: Parallel, 4-Wire SPI and I2C
  • Dot matrix (W x H): 96 x 64 dots
  • Active area (W x H): 19.953 x 13.424mm
  • Panel size (W x H): 24.9x22.95mmx1.4mm
  • Module size: according to the annexed mechanical drawing
  • Diagonal A/A size: 0.95 inch

Mini OLED module can be operated at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃. Below is the basic specification of WEO006448A as reference. For any further information such as samples or quotation, please be free to contact us.

Features

Size 0.95 inch
Resolution 96*64
Driver ic SSD1305
Display size 20.135*13.42mm
Size 25.7*22.2*1.5mm
Pins 23 pins
View Full view
Working temperature -40℃~75℃

Product Application

Formike lcd module tft displays are used in Telecommunication Devices, Home Applications, Consumer Applications, Automobile, Industrial Equipments, Medical Instruments and Office Automation Etc.

SSD1305 Small OLED Display 0.95 Inch High Brightness And Self Emission
