Specifications
Certification :
ISO, CCC
Model NO. :
LV Cable
Wire Core Material :
Bare Copper Wire
Model :
Yjv72
Brand :
Qifan
Quality Team :
50
Capacity :
5000km
Colour :
Black
Transport Package :
Wooden Drums
Specification :
copper cable
Trademark :
Qifan
Origin :
China
HS Code :
8544492100
Supply Ability :
50000K Meter/ per Month
Application :
Construction, Underground, Industrial
Voltage :
Low and Medium Voltage Cable
Current :
DC & AC
Insulation Material :
PVC
Sheath Material :
PVC
Material Shape :
Round Wire
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Place of Origin :
China
Brand Name :
Qifan
MOQ :
100m
Price :
usd3-8/meter
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Delivery Time :
30-45days
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Description

Product Description

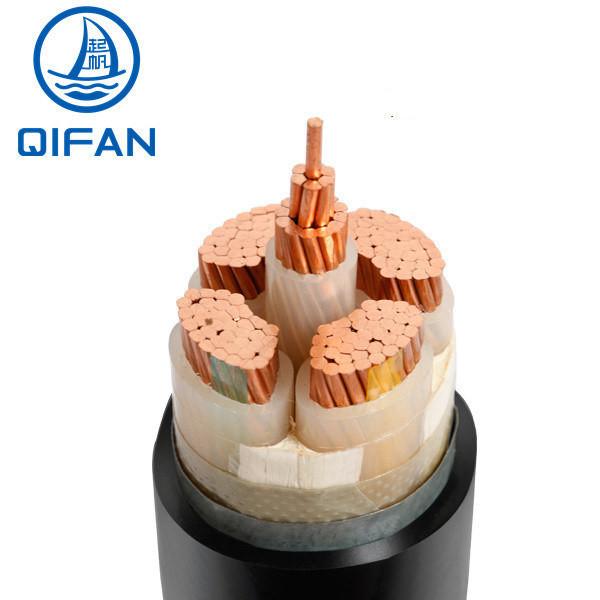

0.6/1 (1.2) Kv Low Voltage 3*400mm2 3*300mm2 3*240mm2 3*150mm2 3*185mm2 Cu (AL) /PVC/PVC Copper/Aluminum unarmored Power Cable


CONDUCTOR MATERIALS :
Copper or Aluminium ,round or sector shaped, stranded wire (Class2) conform to BS EN / IEC 60228 ;For smaller sizes, solid wire( Class 1 ) to BS EN / IEC 60228
INSULATION MATERIALS :
PVC(Polyvinyl Chloride) ,PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346
Insulation Core Color Indentification:
*1Core: Brown or Blue
*2Core :Brown-Blue
*3Core :Brown-Blue-Grey
*4Core :Brown-Blue-Grey-Black
*5Core :Brown-Blue-Grey-Black-Yellow&Green
BEDDING:
Extruded bedding compound PVC(Polyvinyl Chloride)
ARMOURED:
Aluminum(single core)/Galvanized Steel Wires applied helically over the bedding as per IEC
SHEATH:
Extruded PVC (Polyvinyl Chloride) to conform conform to IEC 60502-1
Color-black other colours to special order

TECHNICAL CHARACTRISITICS:

* Rated voltage U0/U : 0.6/1kV.
*Temperature Rang -25ºC to + 70ºC
*Bending radius: Circular conductor =6D & Shaped Conductor=8D
*Mechanical impact :Very good
*Fire Performance:the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and
IEC 60332-3-24,
*Flexibilty:Rigid
*Low smoke emissions :BS7622
*Halogen free:BS EN50267-2-1 &BS EN50267-2-3

APPLICATION:

SWA Armoured Cables are used for power networks supply ,undergrand,outdoor and indoor applications and for use in cable ducting. Suitable for use in power distribution lines with rated voltage 0.6/1KV low voltage installation system . For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.

TECHNICAL PARAMETER DATA:
No.of cores x Nominal section area Nominal Construction of conductor Nominal
Insulation
thickness		 Nominal
Sheath thickness		 Nominal
Overall diameter		 Nominal
Cable weight		 Max.Resistance of conductor
at 20ºC
No.X mm² No.X mm mm mm mm kg/km <=(Ω/km)
Four core Armoured Cable CU/PVC/AWA/PVC( AL/PVC/AWA/PVC )
4x1.5 2x 1.38 0,6 1,3 13.3 350 12,10
4x2.5 7 x 0,67 0,7 1,4 14.9 445 7,41
4x4.0 7 x 0,85 0,7 1,4 16.4 545 4,61
4x6.0 7 x 1,04 0,7 1,5 18.7 785 3,08
4x10 7 x 1,35 0,7 1,5 21.1 1130 1,83
4x16 7 x 1,70 0,7 1,6 23.4 1310 1,150
4x25 7 x 2,14 0,9 1,7 26.1 1870 0,727
4x35 7 x 2,52 0,9 1,8 28.6 2345 0,524
4x50 19 x 1,78 1,0 1,9 32.1 2970 0,387
4x70 19 x 2,14 1,1 2,1 37.7 4210 0,268
4x95 19 x 2,52 1,1 2,2 41.7 5410 0,193
4x120 37 x 2,03 1,2 2,3 47.7 6995 0,153
4x150 37 x 2,25 1,4 2,4 51.4 8310 0,124
4x185 37 x 2,52 1,6 2,6 56.6 10086 0,0991
4x240 61 x 2,25 1,7 2,7 63.1 12670 0,0754
4x300 61 x 2,52 1,8 2,9 68.8 15360 0,0601
Low Voltage Low Voltage Power Cable PVC Copper/Aluminu heavy duty power cableLow Voltage Low Voltage Power Cable PVC Copper/Aluminu heavy duty power cableLow Voltage Low Voltage Power Cable PVC Copper/Aluminu heavy duty power cableLow Voltage Low Voltage Power Cable PVC Copper/Aluminu heavy duty power cableLow Voltage Low Voltage Power Cable PVC Copper/Aluminu heavy duty power cableLow Voltage Low Voltage Power Cable PVC Copper/Aluminu heavy duty power cable

Fang Yu (Shanghai) Automation Technology Co., Ltd. Our products are widely used in water conservancy, electricity, home decoration, rail transit, construction engineering, aerospace, new energy, communication, intelligent equipment, offshore engineering, and mining and other fields.

Fang Yu (Shanghai) Automation Technology Co., Ltd. are also exported to over 50 countries and regions such as Australia, Germany, the United States, the Philippines, Mongolia, Singapore, Yemen, and the United Arab Emirates. In 2021, Qifan Cable was ranked among the top 20 most competitive enterprises in China's wire and cable industry and the top 100 Shanghai enterprises.
