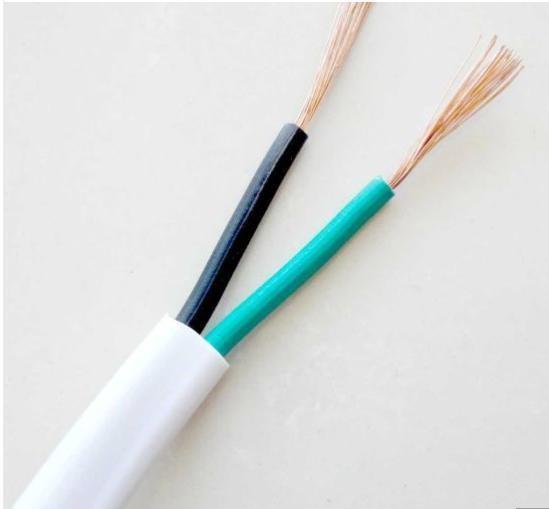

Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Specifications
Certification :
ISO9001, CE, CCC, SAA
Brand Name :
Qifan
Model Number :
SAA Cable
Place of Origin :
China
MOQ :
100m
Price :
usd3-8/meter
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000000000km
Delivery Time :
30-45days
Packaging Details :
wooden drumsPackaging Details Inner Packing: Wooden reel, Plastic reel, and Paper Reel Outer Packing: Carton box, Pull out box, Pallet available Other packing available according to clients' request
Model NO. :
SAA Cable
Material Shape :
Round Wire
Range of Application :
Flame Retardant
Brand :
QIFAN
Quality :
ISO SAA
Stuff :
3800
Color :
Red
Transport Package :
Wooden Drums
Specification :
copper cable
Trademark :
Qifan
Origin :
China
HS Code :
8544492100
Type :
Insulated
Conductor Type :
Stranded
Application :
Overhead, Underground
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
PVC
Samples :
US$ 0/Piece 1 Piece(Min.Order) | Request Sample
Description

Product Description

AS/NZS 5000.2 Flat CU/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable
Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services

Construction:
1. Conductor - Plain annealed class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Filler - Flame retardant material
5. Binder Tape - Low smoke halogen-free flame retardant tape
6. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)

Cross Section:
2 core: 1.5~400mm2
3 core: 1.5~400mm2
4 core: 1.5~400mm2
5 core: 1.5~400mm2
2 core + earth: 1.5~400mm2
3 core + earth: 1.5~400mm2
4 core + earth: 1.5~400mm2

Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC

Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min

Color:
Insulation:

2 core: Red, Black
3 core: Red, White, Blue
4 core: Red, White, Blue, Black
5 core: Red, White, Blue, Black, Y/G
2 core + earth: Red, Black, Y/G
3 core + earth: Red, White, Blue, Y/G
4 core + earth: Red, White, Blue, Black, Y/G


Sheath: Red or according to customer requirements

Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)

Other sizes can also be produced as you required.
Size Conductor Strands Insulation Thickness
2x1.5mm2 7/0.52mm 0.6mm
2x2.5mm2 7/0.68mm 0.7mm
2x1.5mm2+1.5mm2 7/0.52mm 0.6mm
2x2.5mm2+2.5mm2 7/0.68mm 0.7mm
2x4mm2+2.5mm2 7/0.85mm+7/0.68mm 0.8mm
2x6mm2+2.5mm2 7/1.04mm+7/0.68mm 0.8m
------Our Feature------
  1. Imported equipment with experienced technical team
    The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
  2. Complete certification system
    Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
  3. Perfect Production system
    Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
  4. Perfect Sales service system
    Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.

Building Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS CableBuilding Wire Cable AS/NZS 5000.2 Flat Cu/PVC/PVC 1mm2 1.5mm2 2.5mm2 4mm2 6mm2 TPS Cable

Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional supplier of global intelligent building cable infrastructure products and services, and a trustworthy enterprise dedicated to global power development.

Fang Yu (Shanghai) Automation Technology Co., Ltd. is a professional company specializing in the sale of power cables and related products. We act as the overseas marketing center for Qifan Cable.

Fang Yu (Shanghai) products cover four categories: power cables, electrical equipment wires and cables, communication cables, and bare wires.
