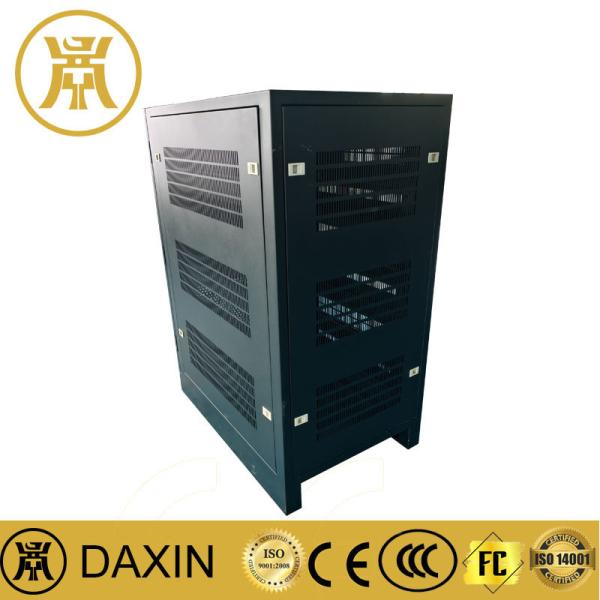

UPS High-Voltage Lithium Battery Pack
UPS High-Voltage Lithium Battery Pack
UPS High-Voltage Lithium Battery Pack
UPS High-Voltage Lithium Battery Pack
Specifications
Brand Name :
daxin
Model Number :
25.6KWH
Certification :
ul
Place of Origin :
CHINA
MOQ :
1
Price :
1000
Payment Terms :
T/T
Supply Ability :
10000
Description

1. Product Overview

Model : 512V 50Ah Lithium Battery Pack
Cell Type : High-energy-density lithium-ion (e.g., LiFePO₄ or NMC)
Rated Voltage : 512V (typically composed of multiple cells in series)
Rated Capacity : 50Ah (capable of high-power output)
Energy : Approx. 25.6kWh (512V × 50Ah)
Applications : Suitable for high-voltage applications such as electric vehicles (e.g., electric buses, trucks), energy storage systems, and industrial equipment.

2. Key Features

✅ High-Voltage Design : The 512V system reduces current loss, improving efficiency in high-power applications.
✅ Long Cycle Life : High-quality cells ensure 2,000–5,000 cycles (varies by cell chemistry).
✅ Smart BMS (Battery Management System) : Includes overcharge/over-discharge protection, temperature monitoring, and cell balancing for safety.
✅ Lightweight & High Energy Density : Compact and lighter than lead-acid batteries with superior energy density.
✅ Fast Charging : Supports high charge rates (e.g., 0.5C–1C) for reduced charging time.

3. Technical Specifications

PARAMETER

SPECIFICATION

Nominal Voltage

512V DC

Nominal Capacity

50Ah

Energy

25.6kWh

Charge Voltage

BMS-dependent (e.g., max 560V)

Discharge Cut-off

BMS-dependent (e.g., min 400V)

Max Continuous Current

100A (2C) or higher (design-dependent)

Peak Discharge Current

150A (3C, short-term)

Operating Temperature

Charge: 0°C–45°C / Discharge: -20°C–60°C

Protection Rating

IP65 (dust/waterproof)

Communication Interface

CAN/RS485 (optional)

4. Applications
